User Manual of DS-7200-ST Series DVR
69
Configuring Alarms
Motion Detection Alarm
Operate the following steps to configure Motion Detection Recording:

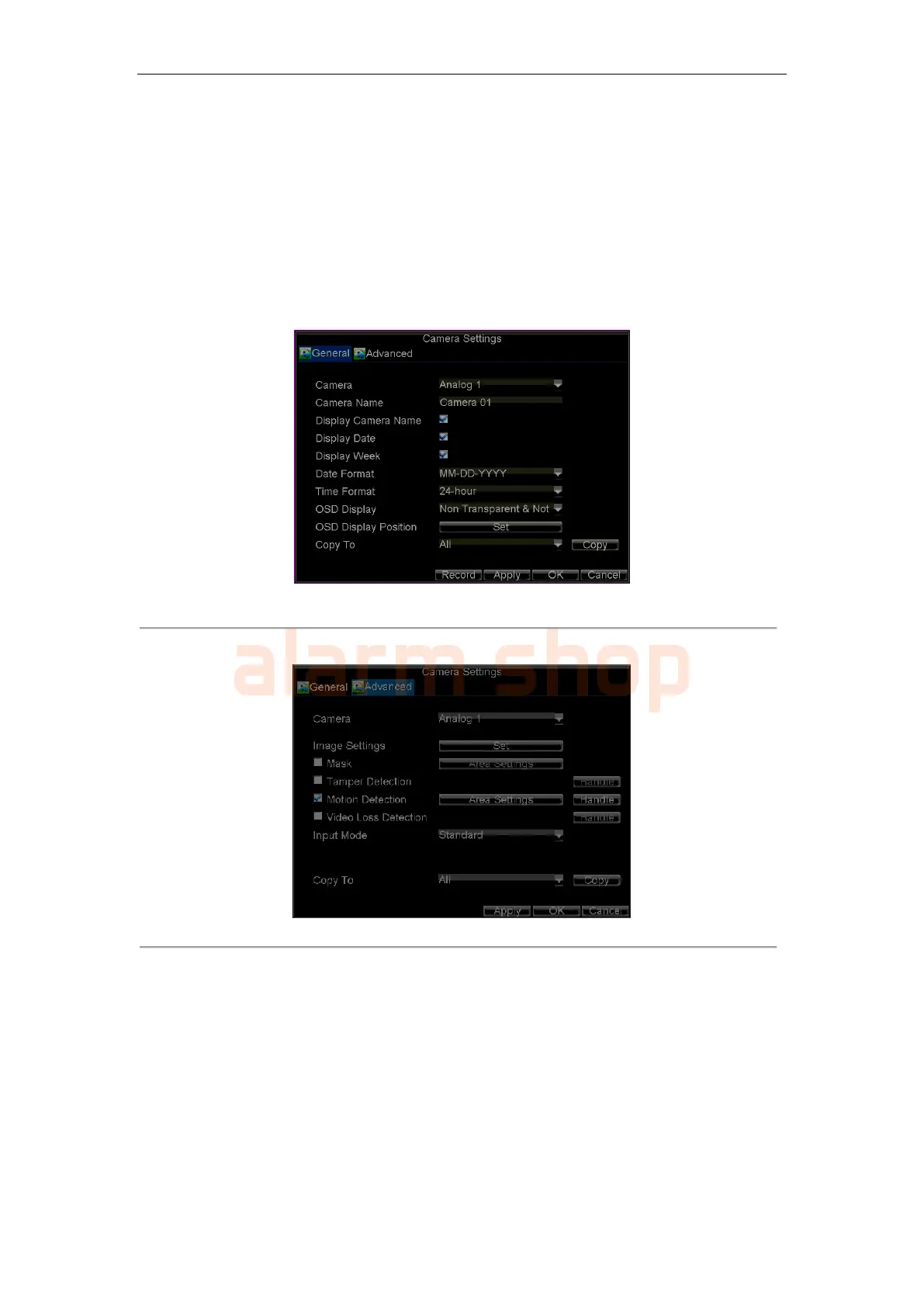

1. Click Menu > Settings > Camera to access the Camera Settings menu, as shown in Figure 1.
Figure 1. Camera Management Interface
2. Select the Advanced tab to enter the Advanced Camera Settings menu, shown in Figure 2.
Figure 2. Advanced Camera Settings
3. Select Motion Detection first and click the Area Settings button to enter the Motion Detection
Area and Sensitivity settings interface.
4. As shown in Figure 3, the Motion Detection area allows you to mask areas you want to configure
motion detection. The maximum area can be set to be full screen. You can left click mouse, hold
and drag it to mask the Motion Detection area. Using EDIT button and direction buttons can also
help you to select Motion Detection area.
