video parameters; and the VIDEO OUT2 will be used as the auxiliary video output, which allows user to
access the single-camera live view of the camera as well as press the 3DEF/F2 button on the front panel to
switch the camera display.
4. When there is no VGA display connected to DVR, the VIDEO OUT1 will be used as the main video output,
and menu operations are accessible; the VGA will be used as the spot video output which only allows user to
access the live view of the camera according to the configured VGA video parameters; and the VIDEO OUT2
is used as the auxiliary video output which allows user to access the single-camera live view of the camera as
well as press the 3DEF/F2 button on the front panel to switch the camera display.
5. The connection or disconnection of VGA display in the process of device running will not affect its functions
as shown above.
Setting Camera Order
The Camera Order settings allow you to set camera sequence in selectable live view display mode. See the
following figure:

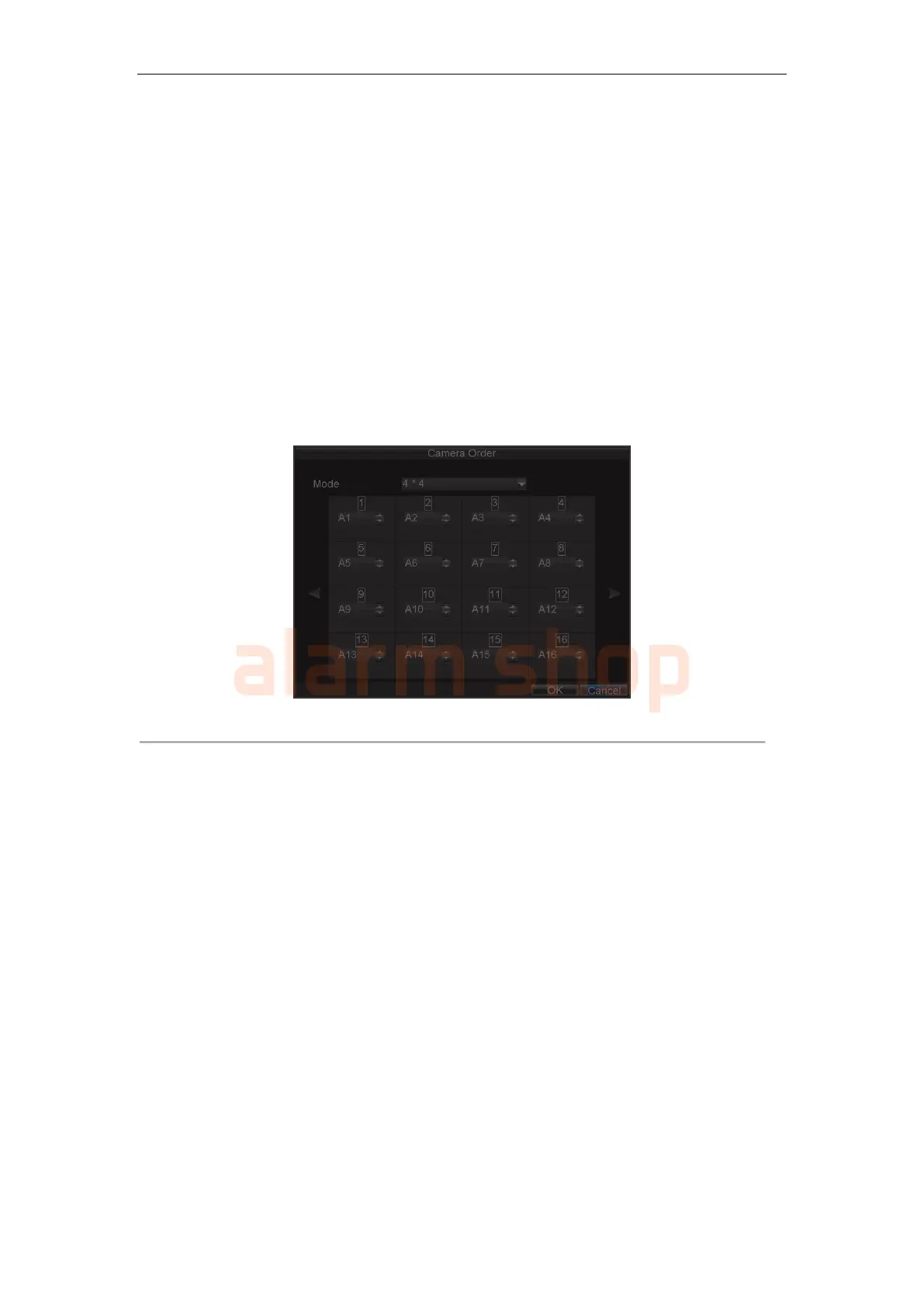

Figure 5. Camera Order Settings
Operate the following steps to set camera order:
1. Enter the Display Settings menu (Menu > Settings > Display) and click Set in the Camera Order
item.
2. Select the video output port and the display mode (1×1, 2×2, 3×3 and 4×4 modes selectable).
3. Use the direction buttons on front panel to move to the display pane for setting press the Enter
button to confirm the selection.
4. Use the direction buttons on front panel to select the camera you want to be view in the display
pane. The option ‘×’ indicates no display of camera.
5. Press Enter button to confirm the selection.
