User Manual of DS-7200-ST Series DVR
50

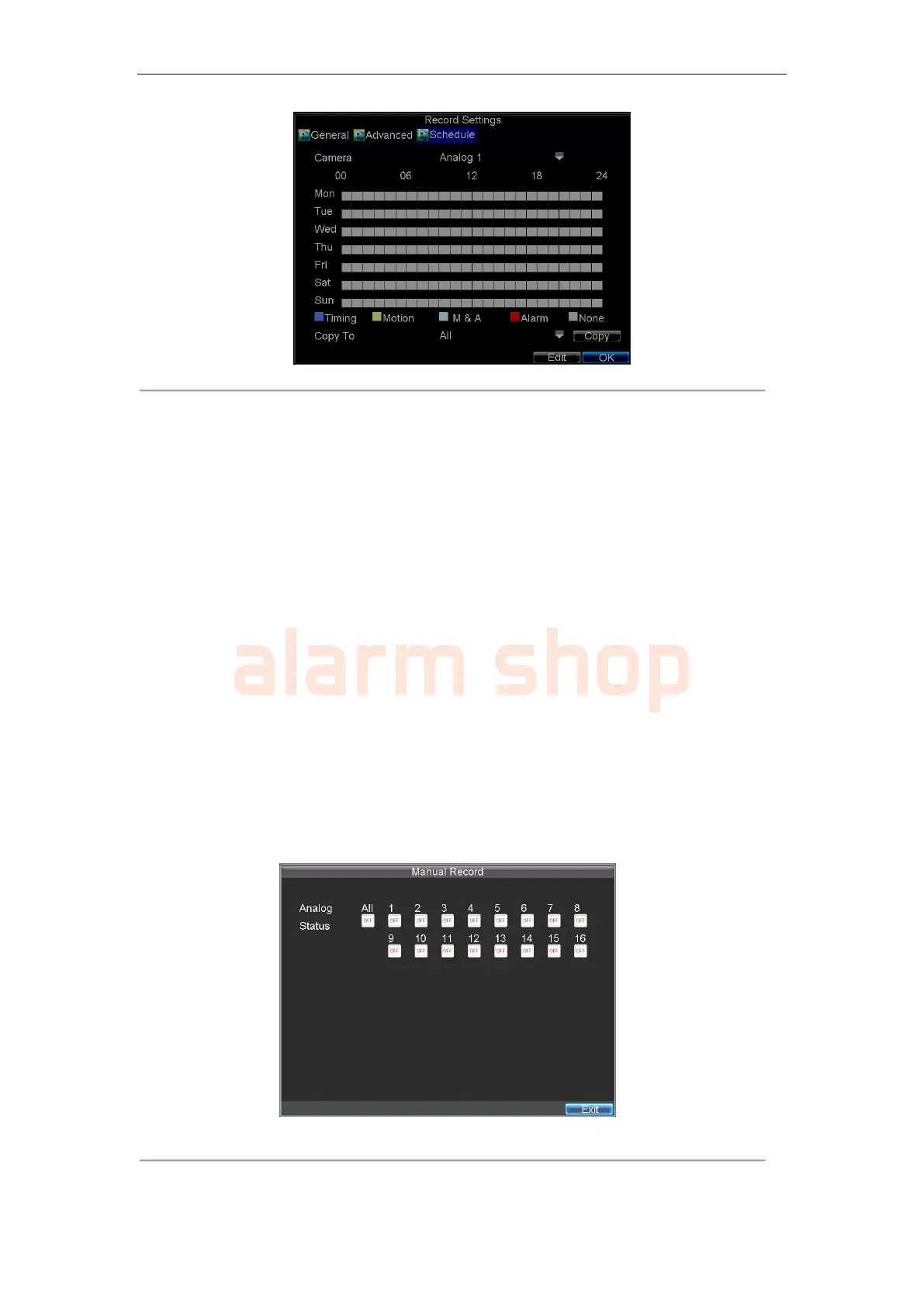

Figure4. Scheduling a Recording
3. Select Camera you want to configure recording schedule.
4. Click the Edit button to enter the Schedule Settings dialog box.
5. Click and check Enable Schedule checkbox.
6. Select the day you want to set up the schedule or select All Week to record for entire week.
7. Click All Day to enable recording for entire day, or select different periods for each day. Up to 8
time periods can be scheduled.
Note: The time periods scheduled cannot be overlapped with each other.
8. Select recording Type. Recording type can be selected to scheduled or triggered by motion
detection and/or alarm. For more specific settings about motion detection and alarm recordings,
please refer to the Configuring Alarms.
9. Click the OK button to finish configuration.
10. Repeat Steps 3-9 for other cameras or copy settings from one schedule to the others under the
Copy To item.
11. Click OK to finish configuration and save the schedule settings.
Note: DS-7200HVI-ST/SE, DS-7200HFI-ST/SE, DS-7200HVI-ST/SN and DS-7200HFI-ST/SN models provide
no Alarm and M&A recording types on the interface.
Note: The Event encoding parameters will take effect when motion detection or alarm happens, and the Timing
encoding parameters will take effect when there are no events happening.
Starting a Manual Recording
A manual recording can be enabled at any time by means of the following configuration:
1. Click Menu > Manual Record to enter the Manual Record dialog box, shown in Figure 5.
Figure 5. Manual Record Menu
