User Manual of DS-7200-ST Series DVR
91
8. Zoom In: Instantly zooms PTZ in.
9. Center: Centers PTZ.
Customizing Presets
Presets can be set to move your PTZ camera to a desired preset location.
To set up and call custom PTZ presets:
1. Enter the PTZ Control interface, shown in Figure 3, by selecting PTZ from the mouse menu or
clicking the PTZ button on the front panel.
2. Select the Preset button to enter the Preset Management menu.
3. In the Preset Management menu, shown in Figure 4, you may:
• Configure Preset: Use the PTZ control panel to adjust the position of the preset. Select a
Preset number and click the Set button to save preset location.
• Clear Preset: Select a Preset number and click the Clear button to delete the preset. You
may also select the Clear All button to delete all presets.
• Call Preset: Select a Preset and click the Call button.

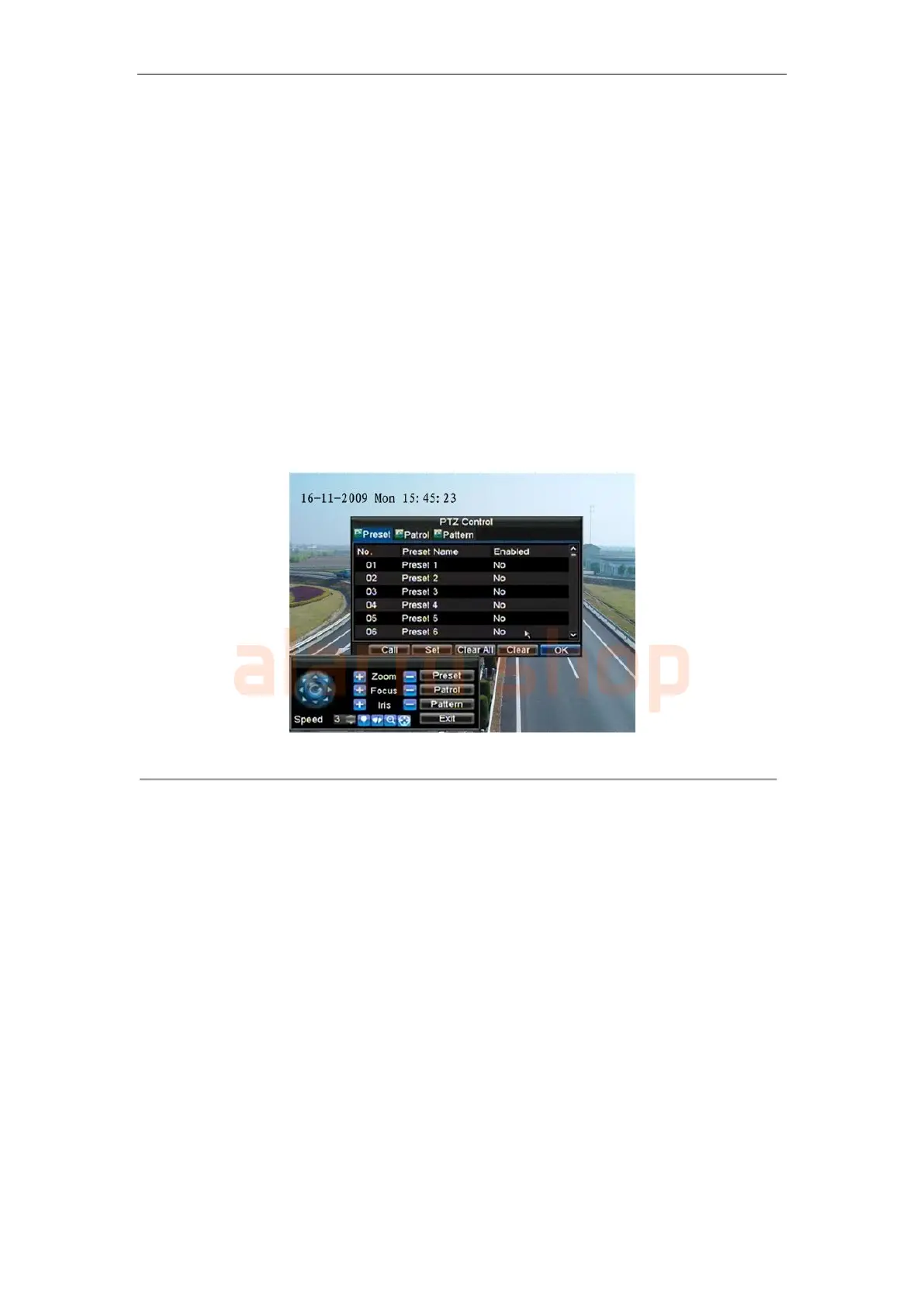

Figure 4. Preset Management Menu
Note: Only valid presets can be called and deleted.
Customizing Patrols
Patrols can be programmed to move the PTZ to different key points and make it stay there for a defined duration
before moving on to the next point. The key points are defined by presets which can be set by following the steps
above in Customize Presets.
To set up and call PTZ patrols:
1. Enter the PTZ Control interface, shown in Figure 3, by selecting PTZ from the mouse menu or
clicking the PTZ button on the front panel.
2. Select the Patrol button to enter the Patrol Management menu, shown in Figure 5.
