User Manual of DS-7200-ST Series DVR
61
2. Set Major Type to Information; set Minor Type to Start Record or End Record; and then select
the Start Time and End Time as well. Click the Search button.
3. Click the Search button. A list of search results will be displayed.

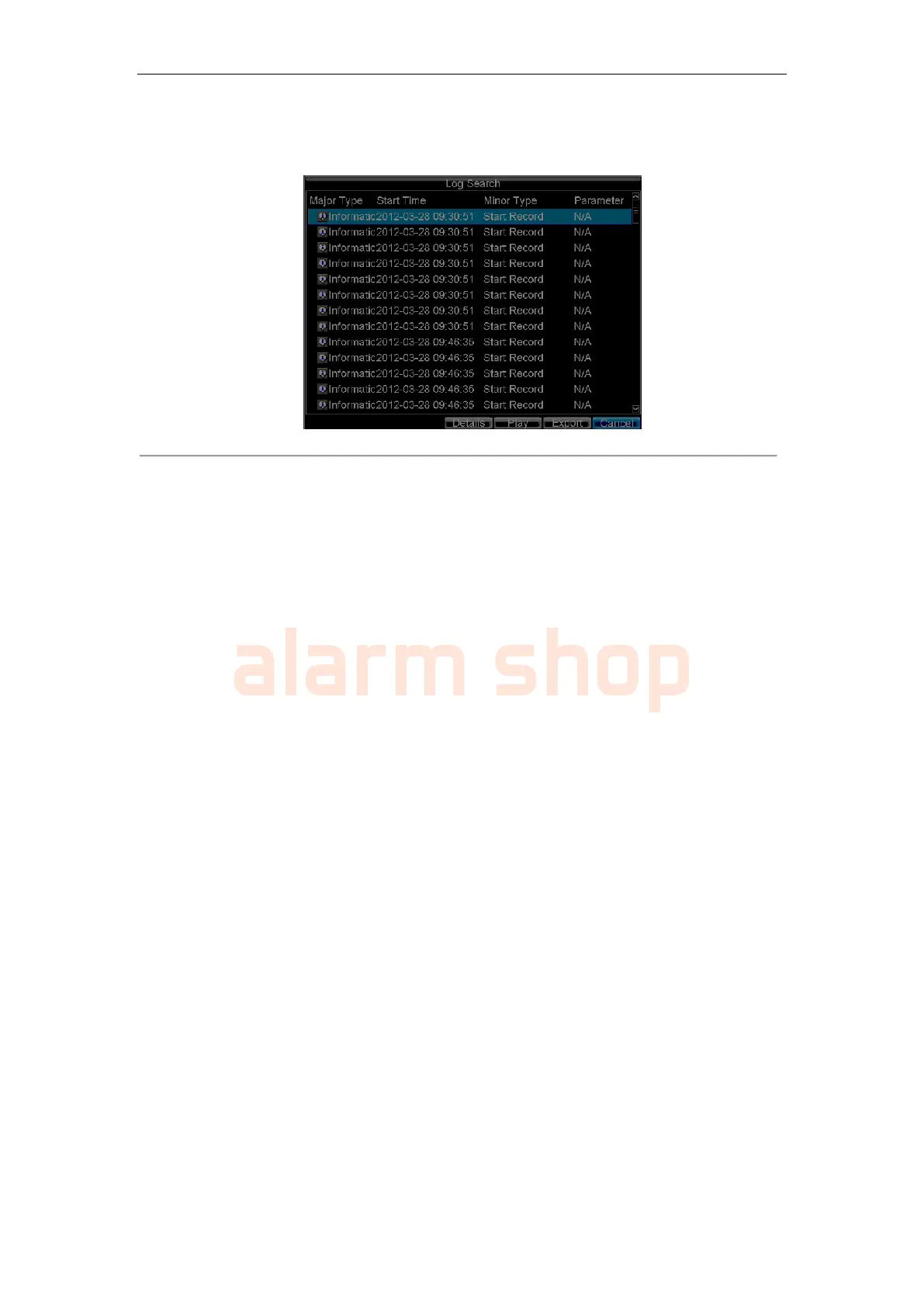

Figure 13. Log Search Result
4. Select a video log from the list to play back and click Play.
5. The selected recorded video files then will begin to play in the Playback interface.
Playing back by Frame
To play back frame-by-frame in the Playback interface:
• By Using a Mouse:
1. Click the Slow Forward button on the Playback Control Panel until the speed changes to Single
frame.
2. Click the Pause button to advance the video frame by frame.
• By Using the Front Panel/Remote Control:
1. Press the Down button to select the playback speed to Single frame.
2. Press the Enter button to advance the video frame by frame.
Digital Zoom
To use digital zoom in Playback mode:
1. Right click the mouse in Playback mode.
2. Select Digital Zoom from drop-down submenu.
3. Left click and drag the red box to the desired area for zooming. The zoomed image will be
magnified by 16 times. An example is given in the following figure:
