User Manual of Network Video Recorder
69
9.10 Remote Alarm Host Settings
Purpose:
With a remote alarm host configured, the NVR will send the alarm event or exception message to the host when an
alarm is triggered. The remote alarm host must have the Network Video Surveillance software installed.
Steps:
1. Enter the Advanced settings interface.
Configuration > Remote Configuration > Network Settings > Advanced

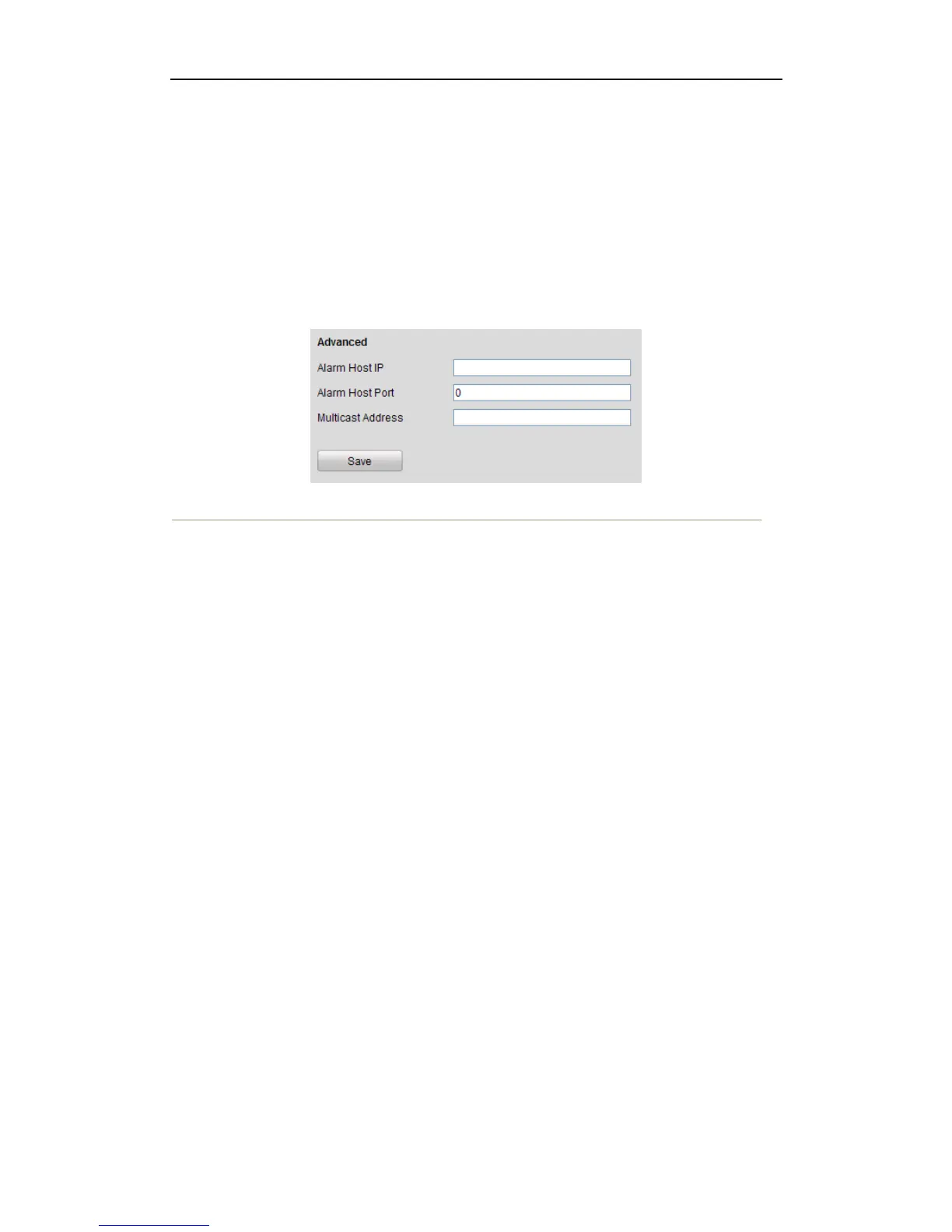

Figure 9. 17 Advanced Settings Interface
2. Input Alarm Host IP and Alarm Host Port in the text fields.
The Alarm Host IP refers to the IP address of the remote PC on which the Network Video Surveillance
Software (e.g., iVMS-4200) is installed, and the Alarm Host Port must be the same as the alarm monitoring
port configured in the software.
3. Click the Save button to save the settings.
