User Manual of Network Video Recorder
93
12.2 Network HDD Settings
By Net Disk Settings, recorded data can be saved to the network storage disk provided by NAS or IP SAN server.
Steps:
1. Enter the Net Disk settings interface:
Configuration> Remote Configuration> Network Settings> NetHDD

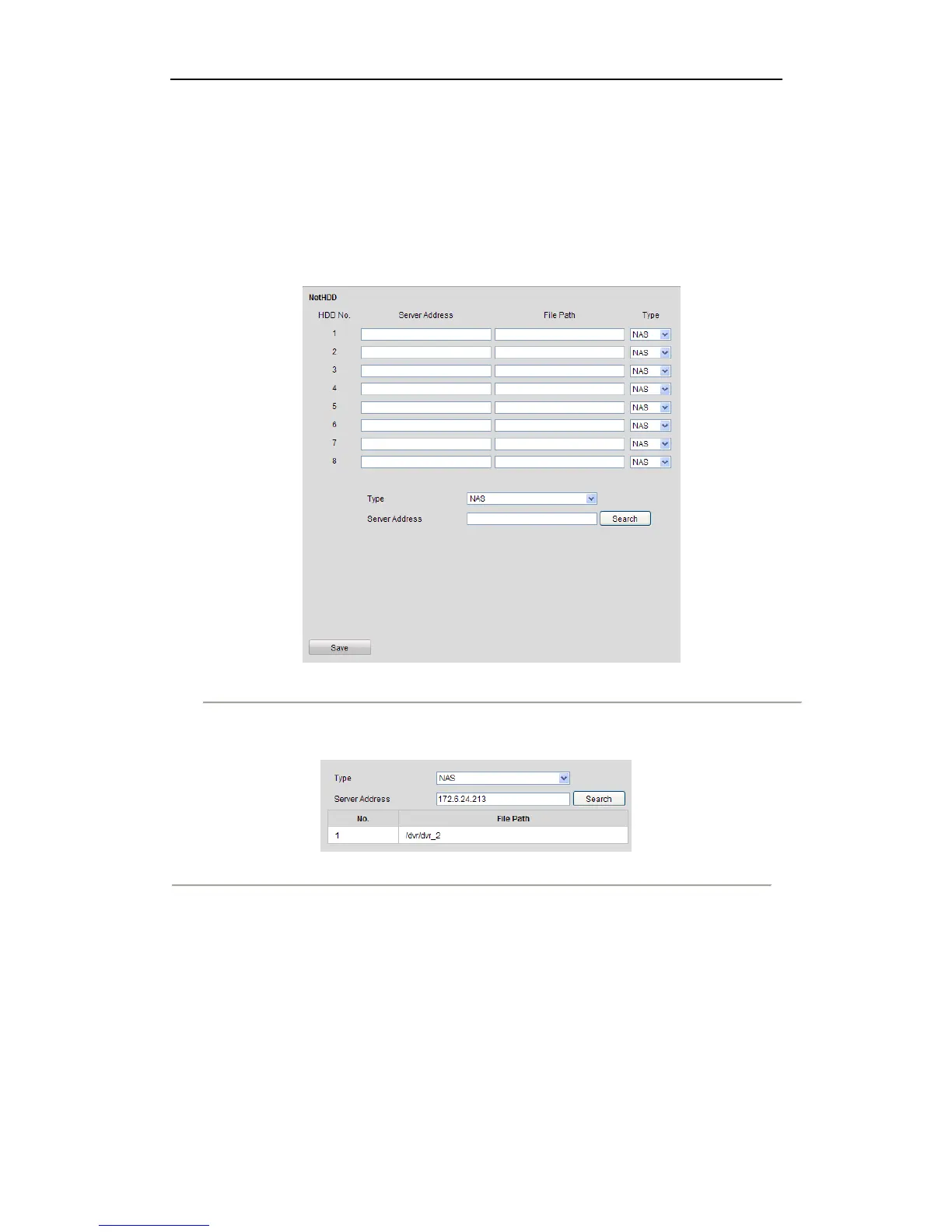

Figure 12. 4 Network HDD Settings
2. Searching directory is provided if you do not know the created directory in the NetHDD.
Select the Type in the drop-down list and input the IP address of NetHDD, and click Search button.
Figure 12. 5 Searching Directory
3. Input Server Address, File Path and select NetHDD Type in the drop-down list on the upper text field.
4. Click Save button to save the settings.
5. Repeat steps of Chapter 12.1.1 Disk Formatting to initialize the added net HDD.
