Hitachi TM3000 User Manual

3 - 2
3.2 Part Names
3.2.1 Main Unit

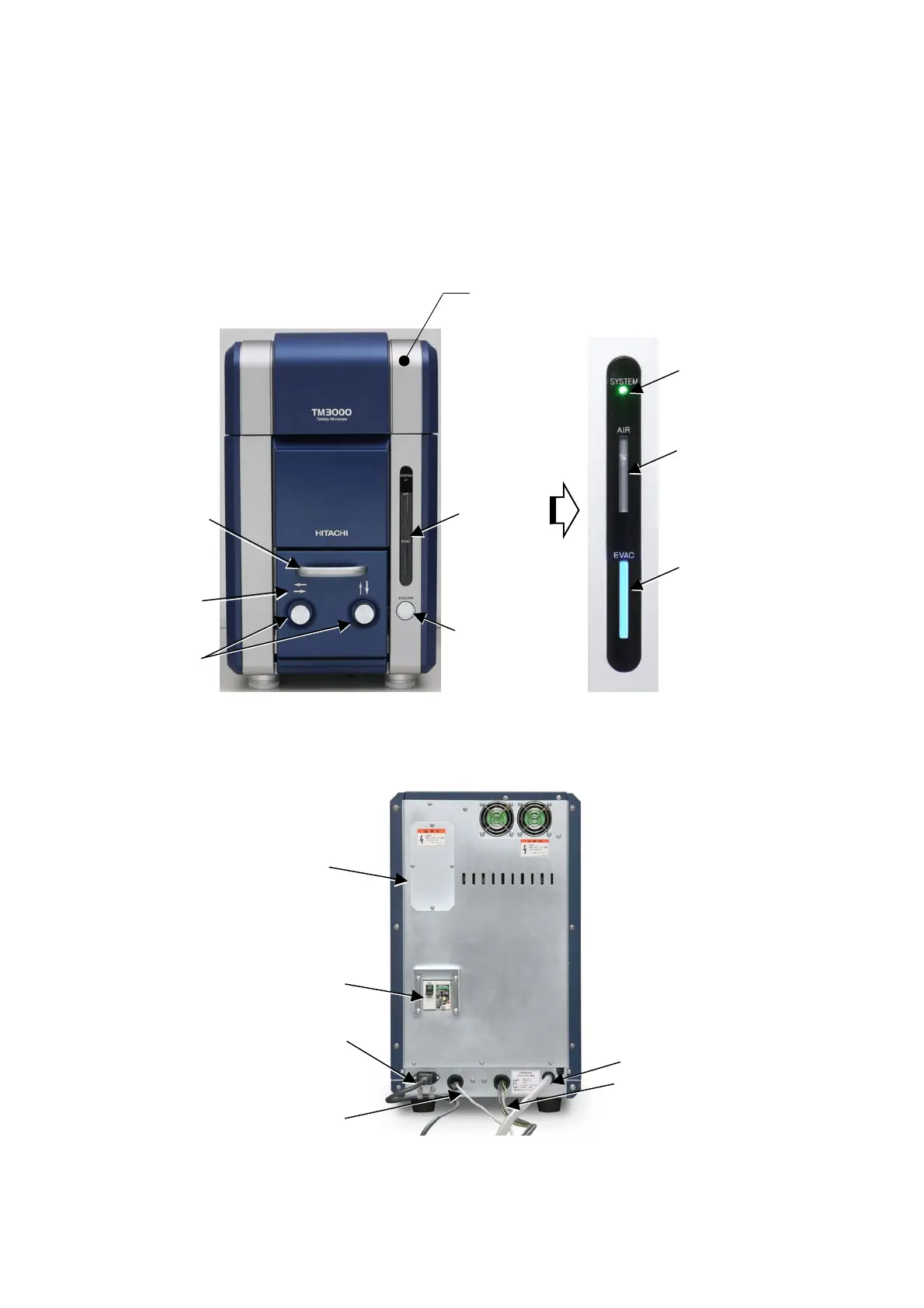

Figures 3.2.1-1, 3.2.1-2 and 3.2.1-3 show the front, back and right side of the main unit
respectively.
Figure 3.2.1-1 Main Unit (Front View)
Figure 3.2.1-2 Main Unit (Back View)
Evacuation indicator detail
Evacuation
indicator
EVAC/AIR
switch
Specimen stage
X, Y stage knob
Top cover
Specimen stage
Pull out handle
SYSTEM LED (Green)
Turns ON when the
system is normal.
(Does not light when the
error occurs.
)
AIR LED (Yellow)
Turns ON when the
specimen chamber is at
atmospheric pressure
and turns OFF when
the specimen chamber
is letting air in.
EVAC LED (Blue)
Turns ON when the
specimen chamber is in
vacuum and turns OFF
when the specimen
chamber is evacuating.
Fuse
Evacuation tube
Power & signal cable
(diaphragm pump)
Circuit breaker
Power cable (Main unit)
Signal cable (USB)
