3b. Using focusing adjustment, set the focus in the condition shown in Figure 4.2.13-5 (A).
Position (A) is the middle position of the points through which the image runs vertically.
3c. By dragging the slider bars for astigmatism correction 1 and astigmatism correction 2,
make the image more clearly visible. For verification, perform fine-focus the image up and
down from the position where the image is most clearly visible. If the image ceases to run (in
the condition depicted in Figure 4.2.13-5), the astigmatism correction is successful.
4.2.14 Saving the Image Data
After adjusting the focus according to the steps described above, click the image verification
button for the View mode, and verify the entire image to be saved. For changing the
brightness/contrast, perform adjustments by referring to Section 4.2.8 Adjusting the
Brightness/Contrast of an Image.
After deciding upon the specific image to be saved, save the image data by performing the
following steps:
1. In addition to the image, check any associated information to be saved (if the same
information as the previous save is used, no checking is necessary).
To revise the information, see Steps 1a to 1c below.
1a. Either click the Edit button on the Information/Comments area or select Save Settings
on the File menu.

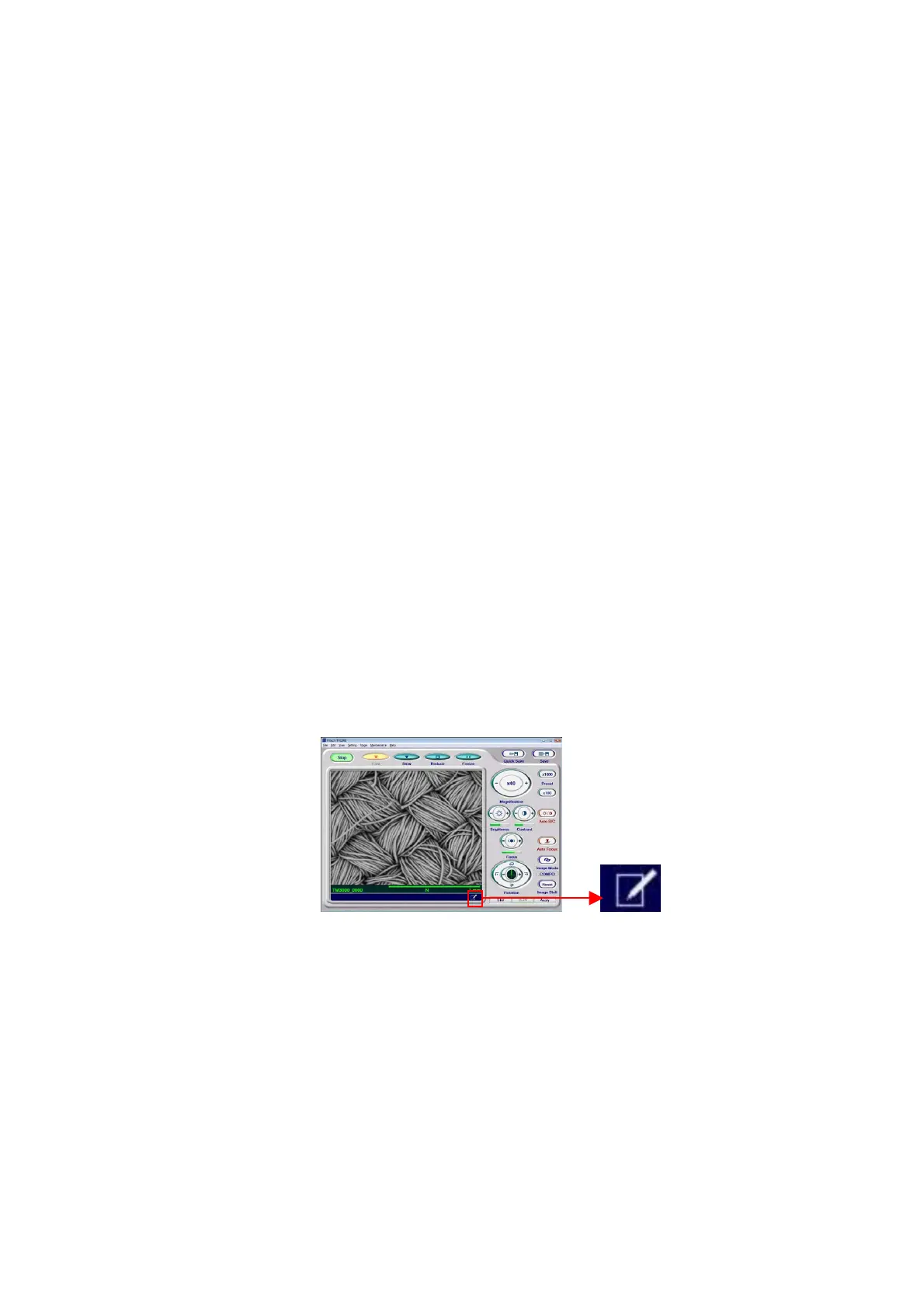

Figure 4.2.14-1 Edit Button
To Next Page
