OPERATING THE MACHINE
5-32

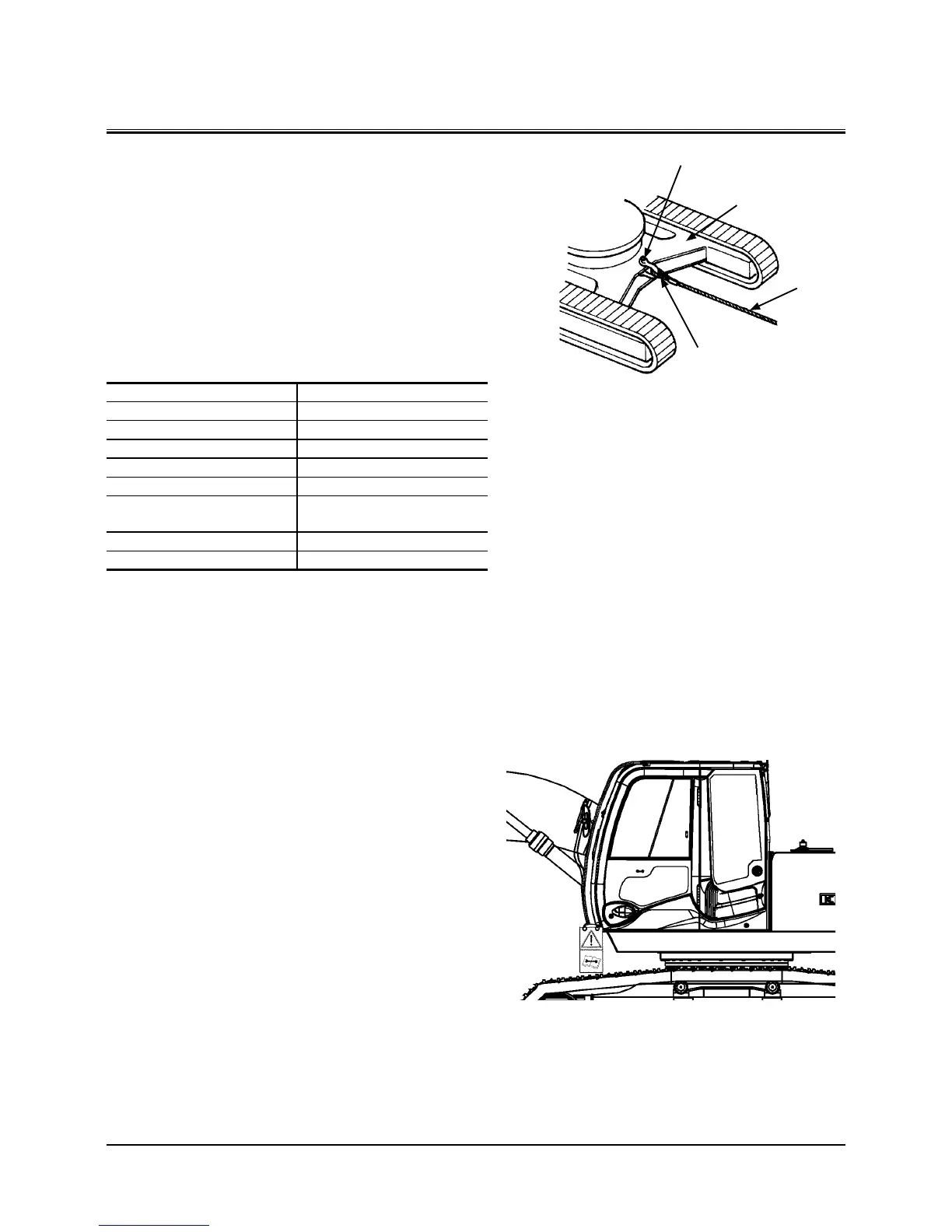

SHACKLE HOLE USAGE
A shackle hole is provided on the track frame to tow light
weight objects as specified below.
IMPORTANT: Be sure to conform to the restrictions and
precautions stated below when towing a
light weight object using the shackle hole
provided on the track frame. The track frame
and/or the shackle hole may be damaged
otherwise.
• The maximum drawbar pull.
Model Maximum Drawbar Pull
ZX110-3 39200 N (4.0 tf )
ZX110M-3 53900 N (5.5 tf)
ZX130-3, 130LCN-3 44100 N (4.5 tf)
ZX180-3 Class 53900 N (5.5 tf)
ZX200-3 Class 73600 N (7.5 tf)
ZX270-3 Class
(Except 280LC-3, 280LCN-3)
83400 N (8.5 tf)
ZX280LC-3, 280LCN-3 98000 N (10.0 tf)
ZX330-3 Class 108000 N (11.0 tf)
• Be sure to use a shackle.
• Keep the tow line horizontal, straight, and parallel to the
tracks.
• Select the slow travel mode. Slowly drive the machine
when towing.
OVERNIGHT STORAGE INSTRUCTIONS
1. After finishing the day’s operation, drive the machine to
a firm, level ground where no possibility of falling stones,
ground collapse, or floods.
Park the machine referring to the “PARKING THE MA-
CHINE” in the “DRIVING THE MACHINE” section.
2. Fill the fuel tank with fuel.
3. Clean the machine.
4. If anti-freeze or long life coolant is not used in cold
weather, be sure to drain coolant from the radiator and
the engine jacket. Also, be sure to put a tag in a visible
place if the coolant has been drained.
Wire Rope
Shackle
Shackle hole for towing light
weight objects.
Track Frame
M104-05-011
M1U1-05-003
