Hitachi ZAXIS 180-3 class User Manual

SPECIFICATIONS
12-2

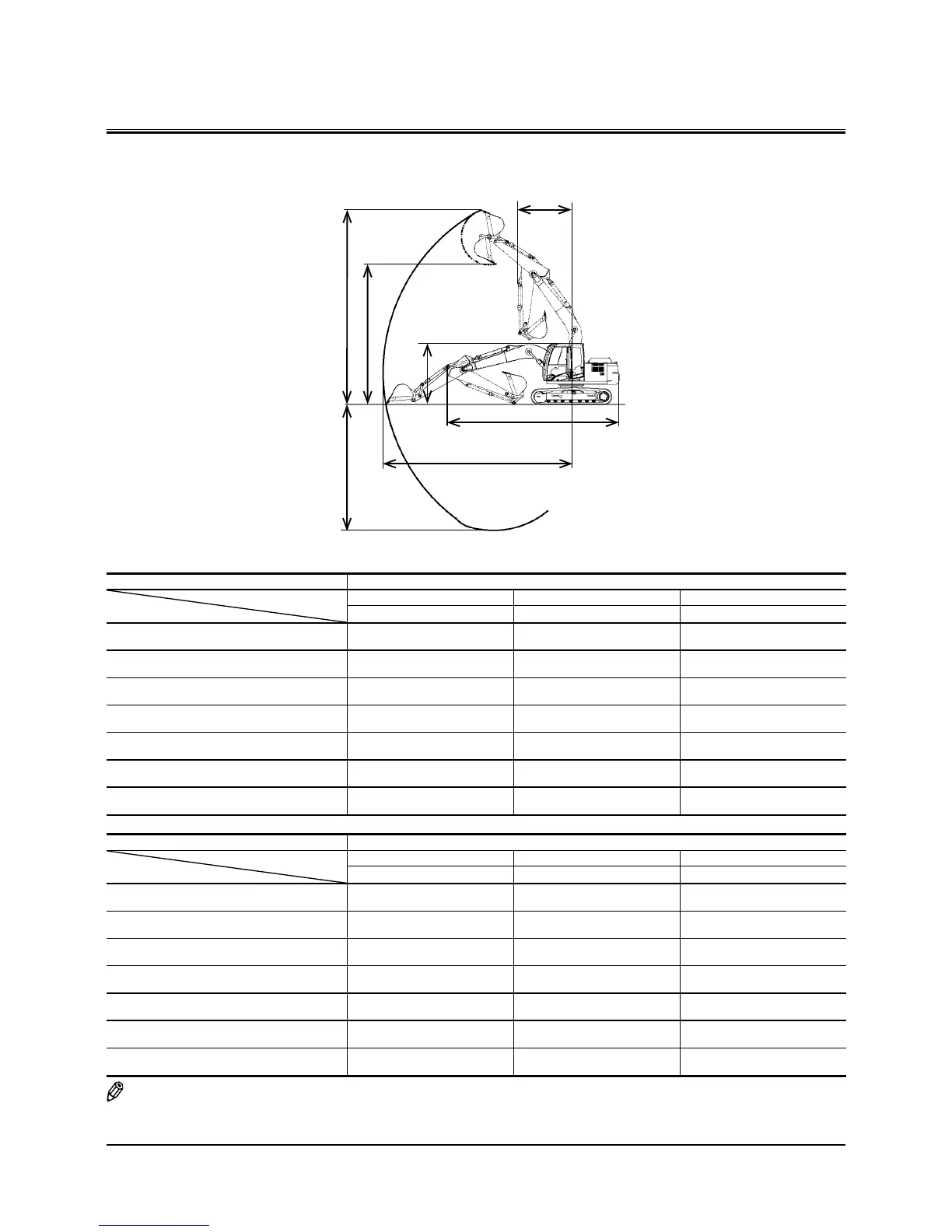

WORKING RANGES
ZX110-3, 110M-3
M1U1-12-005
A
G
C
D
E
F
B
Backhoe
Model ZX110-3
Category
Item
1.96 m (6 ft 5 in) Arm 2.26 m (7 ft 5 in) Arm 2.81 m (9 ft 3 in) Arm
Backhoe Backhoe Backhoe
A: Maximum Digging Reach mm
(ft•in)
7490
(24' 7”)
7760
(25' 6”)
8240
(27' 0”)
*1 B: Maximum Digging Depth mm
(ft•in)
4780
(15' 8”)
5080
(16' 8”)
5630
(18' 6”)
*1 C: Maximum Cutting Height mm
(ft•in)
7940
(26' 1”)
8110
(26' 7”)
8360
(27' 5”)
*1 D: Maximum Dumping Height mm
(ft•in)
5530
(18' 2”)
5700
(18' 8”)
5960
(19' 7”)
E: Overall Height mm
(ft•in)
2740
(9' 0”)
2740
(9' 0”)
*2 2740
(9' 0”)
F: Overall Length mm
(ft•in)
7280
(23' 11”)
7280
(23' 11”)
*2 7300
(23' 11”)
G: Minimum Swing Radius mm
(ft•in)
2370
(7' 9”)
2400
(7' 11”)
2660
(8' 9”)
Model ZX110M-3
Category
Item
1.96 m (6 ft 5 in) Arm 2.26 m (7 ft 5 in) Arm 2.81 m (9 ft 3 in) Arm
Backhoe Backhoe Backhoe
A: Maximum Digging Reach mm
(ft•in)
7490
(24' 7”)
7760
(25' 6”)
8240
(27' 0”)
*1 B: Maximum Digging Depth mm
(ft•in)
4580
(15' 0”)
4880
(16' 0”)
5430
(17' 10”)
*1 C: Maximum Cutting Height mm
(ft•in)
8140
(26' 9”)
8320
(27' 4”)
8570
(28' 1”)
*1 D: Maximum Dumping Height mm
(ft•in)
5730
(18' 10”)
5910
(19' 5”)
6170
(20' 3”)
E: Overall Height mm
(ft•in)
2950
(9' 8”)
2950
(9' 8”)
*2 2950
(9' 8”)
F: Overall Length mm
(ft•in)
7260
(23' 10”)
7260
(23' 10”)
*2 7280
(23' 11”)
G: Minimum Swing Radius mm
(ft•in)
2370
(7' 9”)
2400
(7' 11”)
2660
(8' 9”)
NOTE: *1 The dimensions do not include the height of the shoe lug.
*2 The dimensions asterisked are for transport pin position.
