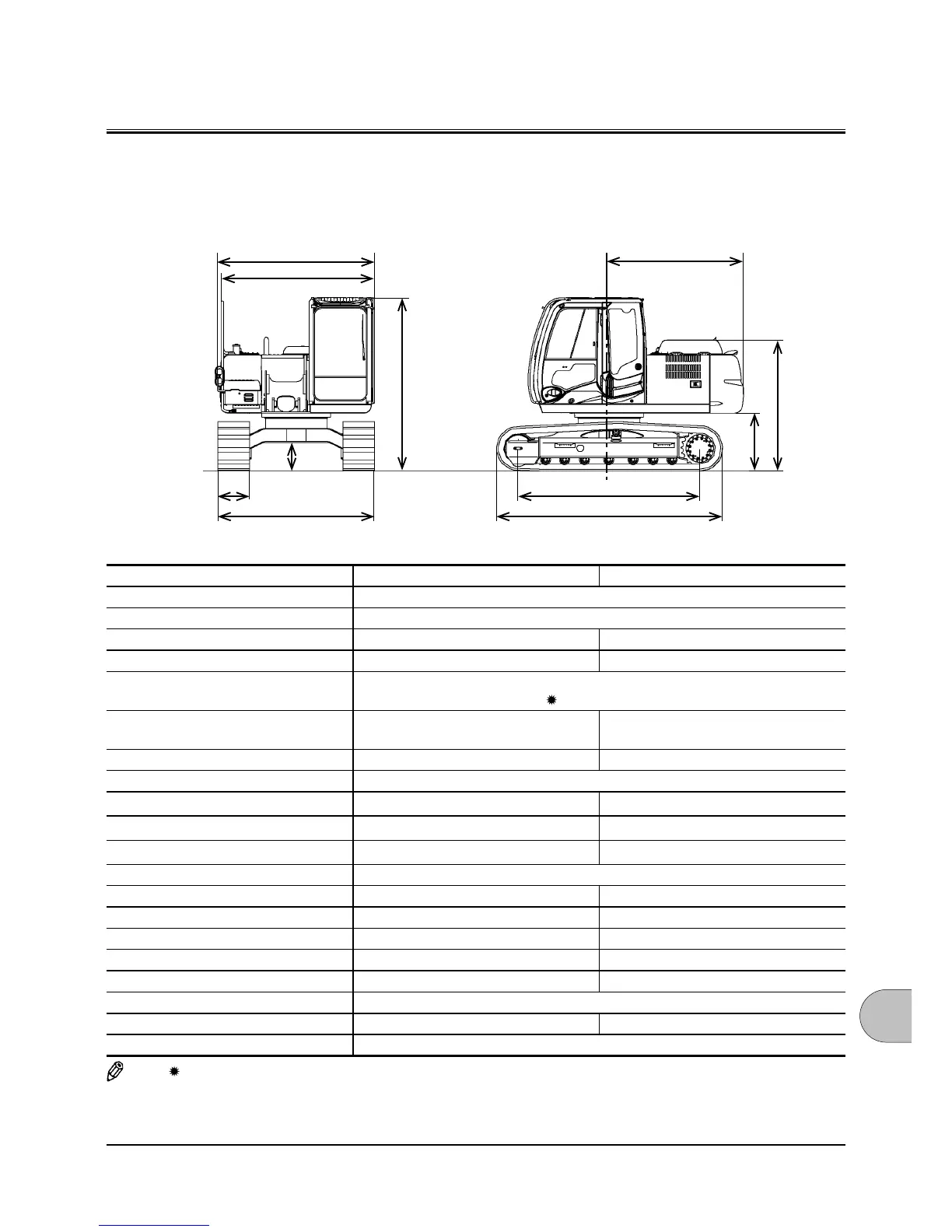

SPECIFICATIONS
12-1
SPECIFICATIONS
ZX110-3, 110M-3
M1U1-12-001
A
G
D
K
I
B
C
E
F
J
H
Model ZX110-3 ZX110M-3
Type of Front-End Attachment 2.26 m (7 ft 5 in) Arm
Bucket Capacity (Heaped) PCSA 0.45 m
3
(0.59 yd
3
), CECE 0.40 m
3
Operating Weight 11100 kg (24500 lb) 13100 kg (28900 lb)
Base Machine Weight 8600 kg (19000 lb) 10700 kg (23600 lb)
Engine
Isuzu AJ-4JJ1XYSA-03 66 kW/1800 min
–1
(90 PS/1800 rpm)
69 kW/2000 min
–1
(90 PS/2000 rpm)
A: Overall Width
(Excluding back mirrors)
2490 mm (8 ft 2 in) 2690 mm (8 ft 10 in)
B: Cab Height
2740 mm (9 ft 0 in) 2950 mm (9 ft 8 in)
C: Rear End Swing Radius
2130 mm (7 ft 0 in)
D: Minimum Ground Clearance
*
440 mm (1 ft 5 in)
*
595 mm (1 ft 11 in)
E: Counterweight Clearance
*
890 mm (2 ft 11 in)
*
1100 mm (3 ft 7 in)
F: Engine Cover Height
*
2050 mm (6 ft 9 in)
*
2260 mm (7 ft 5 in)
G: Overall Width of Upperstructure
2460 mm (8 ft 1 in)
H: Undercarriage Length
3340 mm (11 ft 0 in) 3790 mm (12 ft 5 in)
I: Undercarriage Width
2490 mm (8 ft 2 in) 2690 mm (8 ft 10 in)
J: Sprocket Center to Idler Center
2620 mm (8 ft 7 in) 2990 mm (9 ft 10 in)
K: Track Shoe Width
500 mm (20 in) (Grouser shoe) 700 mm (28 in) (Grouser shoe)
Ground Pressure 38 kPa (0.39 kgf/cm
2
, 5.5 psi) 28 kPa (0.29 kgf/cm
2
, 4.1 psi)
Swing Speed 13.9 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.6 km/h (3.4/2.2 mph) 4.2/2.4 km/h (2.6/1.5 mph)
Gradeability 35° (tan θ = 0.70)
NOTE: H/P mode
* The dimensions do not include the height of the shoe lug.
