Hitachi ZAXIS 180-3 class User Manual

OPTIONAL ATTACHMENTS AND DEVICES
13-13
SPECIFICATIONS

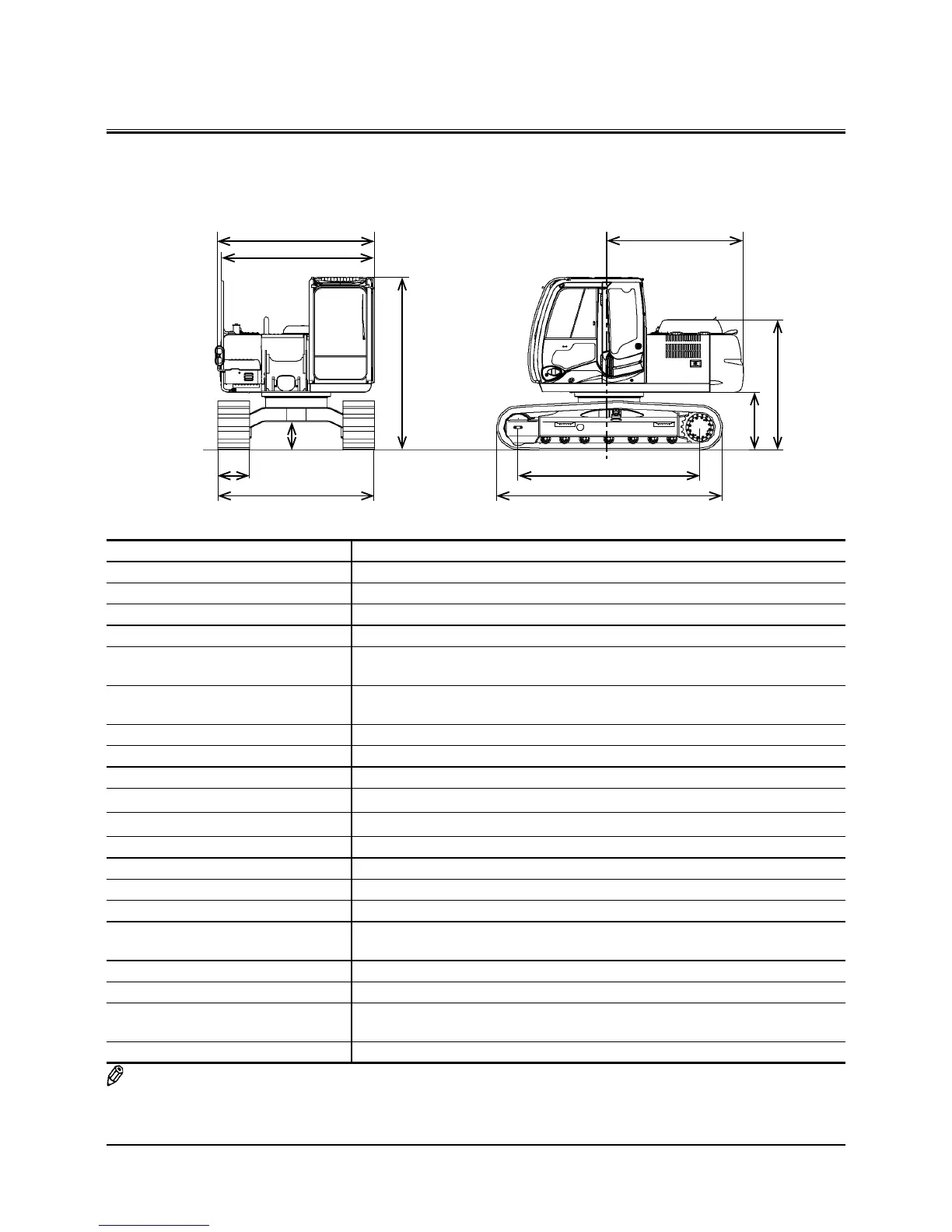

ZX130-3 with Blade
M1U1-12-001
A
G
D
K
I
B
C
E
F
J
H
Model ZX130-3 with Blade
Type of Front-End Attachment 2.52 m (8 ft 3 in) Arm
Bucket Capacity (Heaped) PCSA 0.50 m
3
(0.65 yd
3
), CECE 0.45 m
3
Operating Weight 13600 kg (30000 lb)
Base Machine Weight 10900 kg (24000 lb)
Engine
ISUZU AJ-4JJ1XYSA-03, 66 kW (90 PS)/1800 min
–1
(rpm)
✹
69 kW (94 PS)/2000 min
–1
(rpm)
A : Overall Width
(Excluding Rearview Mirrors)
2490 mm (8 ft 2 in)
B : Cab Height
2740 mm (9 ft 0 in)
C : Rear End Swing Radius
2130 mm (7 ft 0 in)
D : Minimum Ground Clearance
* 440 mm (1 ft 5 in)
E : Counterweight Clearance
*
890 mm (2 ft 11 in)
F : Engine Cover Height
*
2050 mm (6 ft 9 in)
G : Overall Width of Upperstructure
2460 mm (8 ft 1 in)
H : Undercarriage Length
3580 mm (11 ft 9 in)
I : Undercarriage Width
2490 mm (8 ft 2 in)
J : Sprocket Center to Idler Center
2880 mm (9 ft 5 in)
K : Track Shoe Width
500 mm (Grouser Shoe)
(20 in)
Ground Pressure 43 kPa (0.44 kgf/cm
2
, 6.3 psi)
Swing Speed 13.7 min
–1
(13.7 rpm)
Travel Speed (fast/slow)
5.5/3.4 km/h
(3.4/2.1 mph)
Gradeability 35° (tan θ = 0.70)
NOTE:
✹
H/P mode
* The dimensions do not include the height of the shoe lug.
