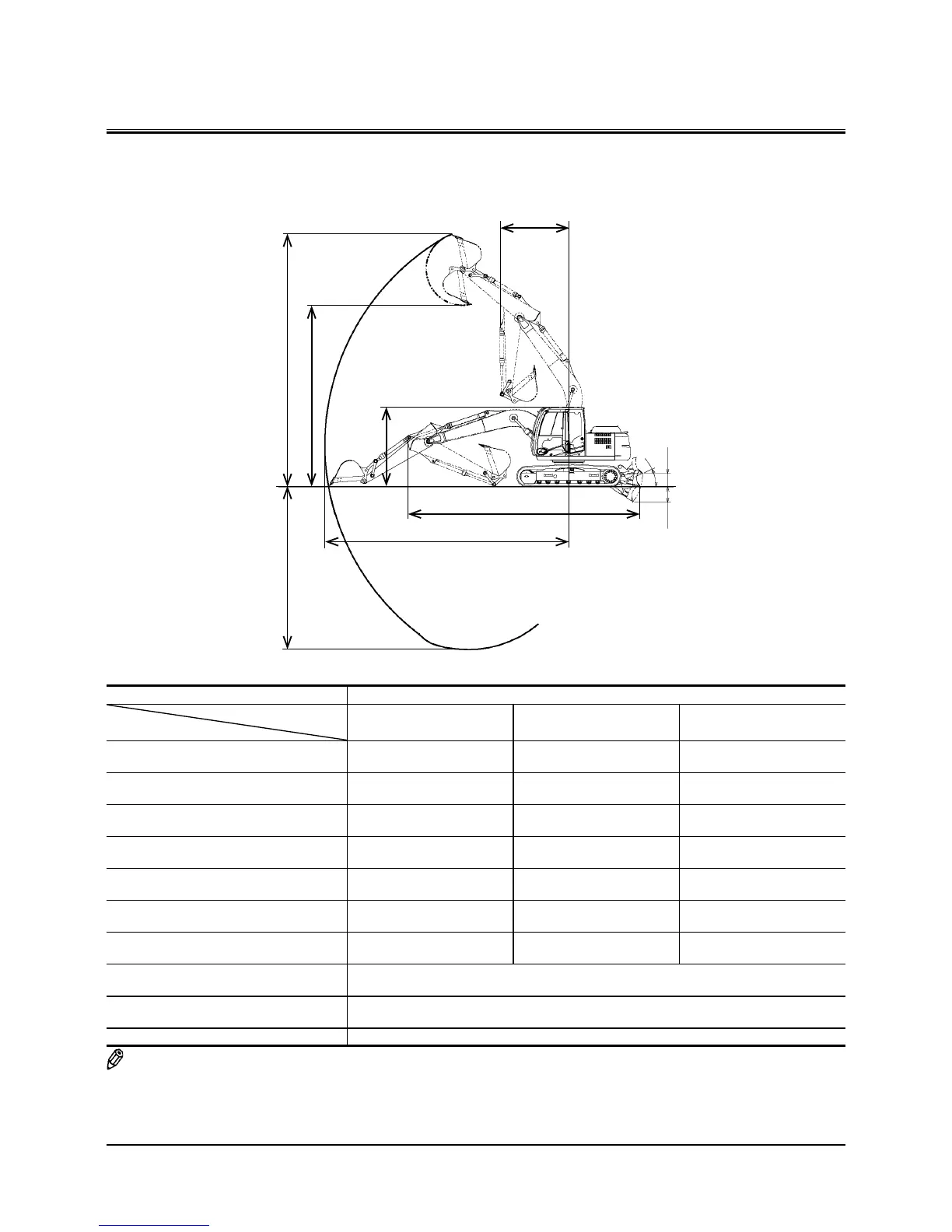

WORKING RANGES
ZX130-3 with Blade
Model ZX130-3 with Blade
Category
Item
2.10 m (6 ft 11 in) Arm 2.52 m (8 ft 3 in) Arm 3.01 m (9 ft 11 in) Arm
A: Maximum Digging Reach mm
(ft•in)
7960
(26' 1”)
8320
(27' 4”)
8790
(28' 10”)
*1 B: Maximum Digging Depth mm
(ft•in)
5150
(16' 11”)
5570
(18' 3”)
6060
(19' 11”)
*1 C: Maximum Cutting Height mm
(ft•in)
8370
(27' 6”)
8570
(28' 1”)
8900
(29' 2”)
*1 D: Maximum Dumping Height mm
(ft•in)
5960
(19' 7”)
6160
(20' 3”)
6490
(21' 4”)
E: Overall Height mm
(ft•in)
2740
(9' 0”)
2740
(9' 0”)
*2 2740
(9' 0”)
F: Overall Length mm
(ft•in)
7660
(25' 2”)
7660
(25' 2”)
*2 7670
(25' 2”)
G: Minimum Swing Radius mm
(ft•in)
2370
(7' 9”)
2390
(7' 10”)
2640
(8' 8”)
H: Max. Raising Height mm
(ft•in)
480
(1' 7”)
I: Max. Digging Depth mm
(ft•in)
510
(1' 8”)
J: Blade Angle degree
25
NOTE: *1 The dimensions do not include the height of the shoe lug.
*2 The dimensions asterisked are for transport pin position.
M1U1-12-004
C
B
D
A
F
E
G
J
H
I
