OPTIONAL ATTACHMENTS AND DEVICES
13-48

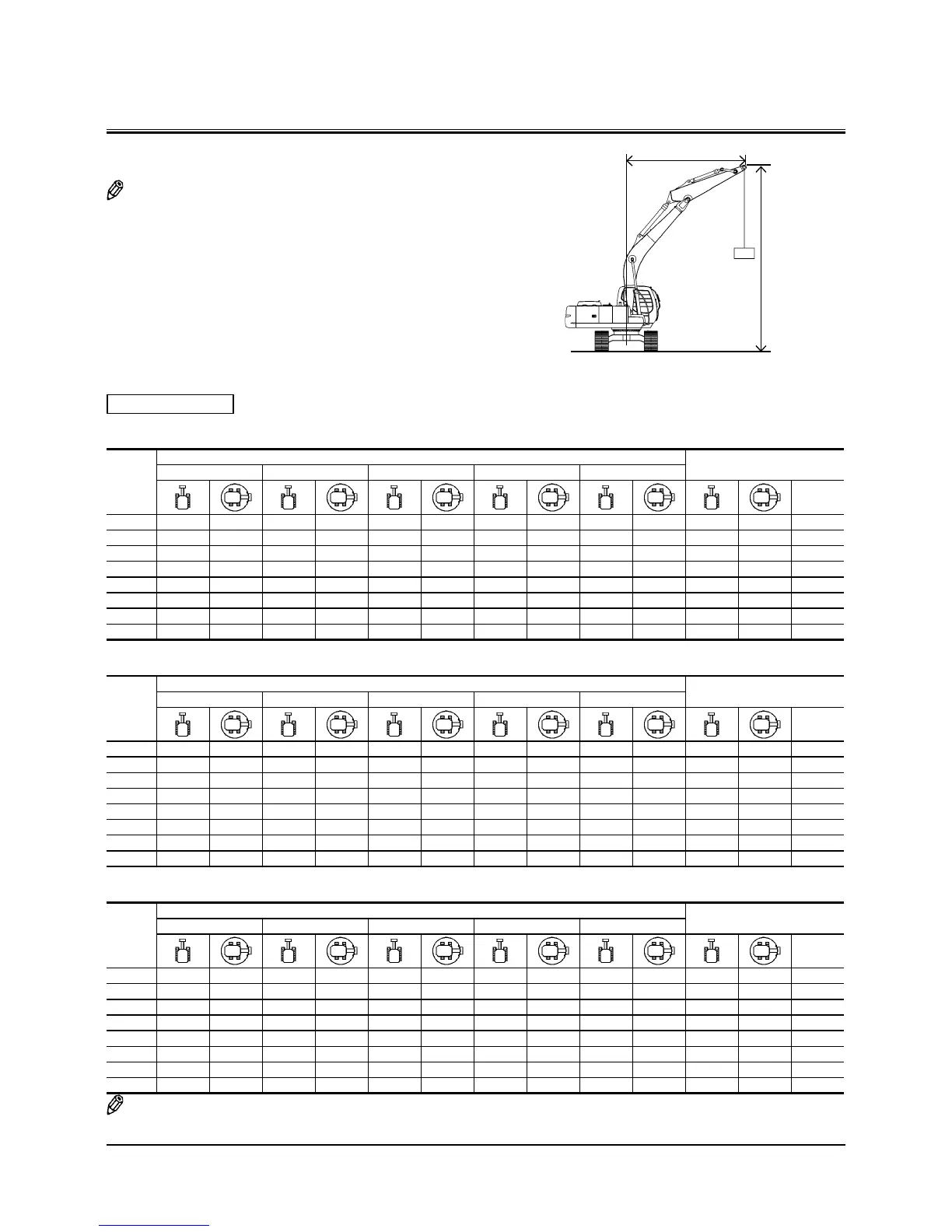

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A
C
B
M1G6-13-013
METRIC MEASURE
ZX110-3 Monoblock boom, Arm 1.96 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3160* 2890* 2120* 2110 5.42
3.0 4980* 4980* 3650* 2760 2320 1760 2080* 1740 6.05
1.5 0 0 3490 2600 2270 1710 2130 1600 6.26
0 6360* 4500 3360 2480 2220 1670 2180 1640 6.09
-1.5 4850* 4850* 6470 4500 3340 2460 2510 1880 5.51
-3.0 5370* 4630 3490* 2680 4.34
-4.5
ZX110-3 Monoblock boom, Arm 2.26 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 2920* 2920 1790* 1790* 5.73
3.0 4530* 4530* 3450* 2790 2340 1780 1760* 1620 6.33
1.5 6580* 4760 3510 2610 2270 1710 1860* 1500 6.53
0 6470 4500 3370 2480 2220 1660 2040 1530 6.37
-1.5 4500* 4500* 6430 4480 3320 2440 2310 1730 5.81
-3.0 8500* 8500* 5800* 4580 3380 2500 3160 2350 4.73
-4.5
ZX110-3 Monoblock boom, Arm 2.81 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 2480* 2480* 2070* 1830 1550* 1550* 6.27
3.0 3600* 3600* 3030* 2840 2360 1790 1540* 1440 6.82
1.5 5830* 4880 3540 2640 2270 1710 1620* 1340 7.01
0 6470 4500 3360 2470 2200 1640 1810 1350 6.86
-1.5 4030* 4030* 6350 4400 3270 2390 2160 1600 2000 1490 6.35
-3.0 6960* 6960* 6380* 4450 3290 2410 2560 1900 5.37
-4.5
NOTE: When the lifting hook is used, the maximum allowable lifting load is 4 tons.
A: Load radius
B: Load point height
C: Lifting capacity
