OPTIONAL ATTACHMENTS AND DEVICES
13-34
SPECIFICATIONS

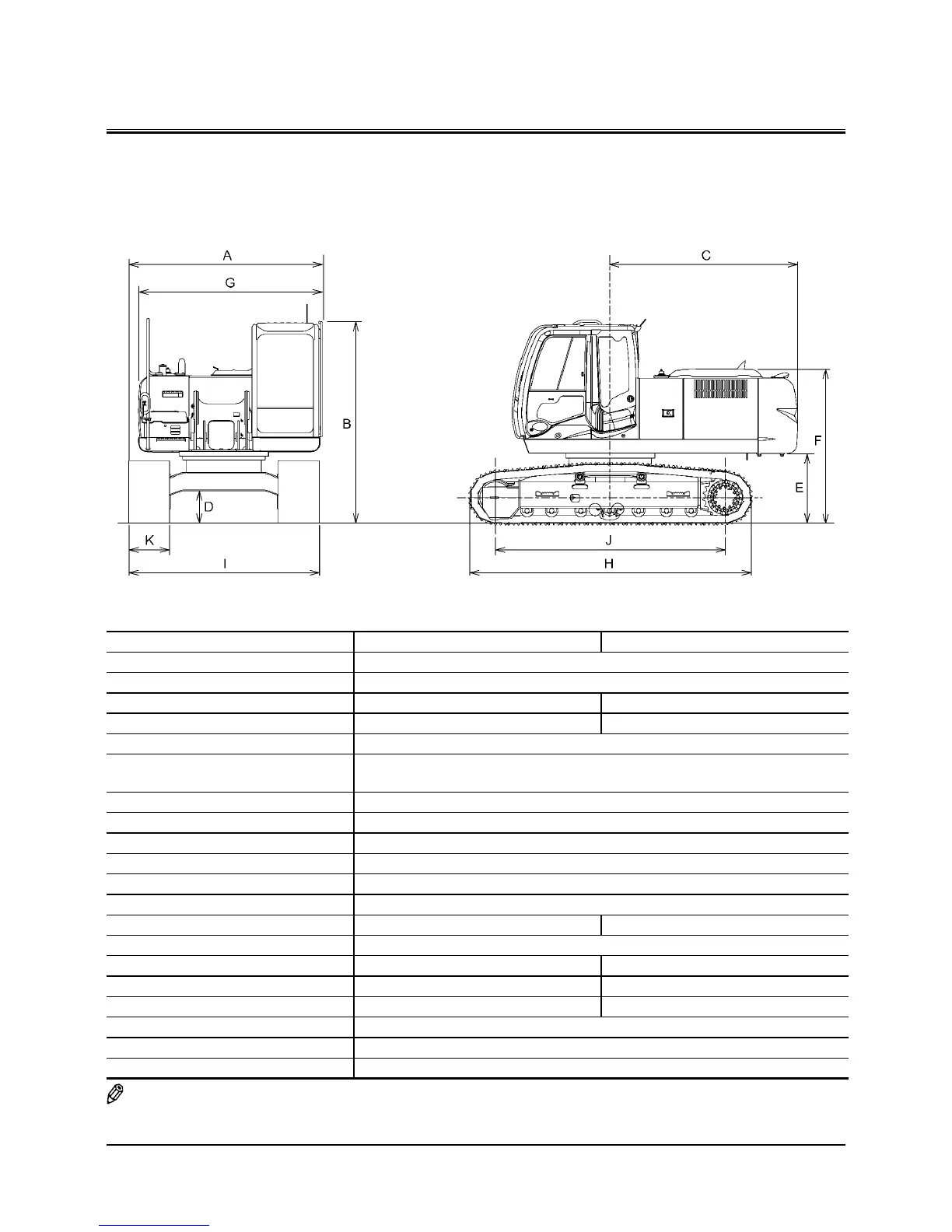

ZX210LCN-3, 240N-3 2-piece Boom
T1V1-01-01-006
Model ZX210LCN-3 2-piece Boom ZX240N-3 2-piece Boom
Type of Front-End Attachment 2.91 m (9 ft 7 in) Arm
Bucket Capacity (Heaped) PCSA 0.80 m
3
(1.05 yd
3
), CECE 0.7 m
3
Operating Weight 21700 kg (47800 lb) 23200 kg (51100 lb)
Base Machine Weight 16700 kg (36800 lb) 18200 kg (40100 lb)
Engine Isuzu AI-4HK1XYSA-02 122 kW/2000 min
–1
(166 PS/2000 rpm)
A: Overall Width
(Excluding back mirrors)
2500 mm (8 ft 2 in)
B: Cab Height
2950 mm (9 ft 8 in)
C Rear End Swing Radius
2750 mm (9 ft 0 in)
D: Minimum Ground Clearance
*450 mm (18 in)
E: Counterweight Clearance
* 1020 mm (3 ft 4 in)
F: Engine Cover Height
* 2270 mm (7 ft 5 in)
G: Overall Width of Upperstructure
2480 mm (8 ft 2 in)
H: Undercarriage Length
4460 mm (14 ft 8 in) 4260 mm (14 ft 0 in)
I: Undercarriage Width
2480 mm (8 ft 2 in)
J: Sprocket Center to Idler Center
3660 mm (12 ft 0 in) 3460 mm (11 ft 4 in)
K: Track Shoe Width
500 mm (20 in) (Grouser shoe) 550 mm (22 in) (Grouser shoe)
Ground Pressure 54 kPa (0.55 kgf/cm
2
, 7.8 psi) 55 kPa (0.56 kgf/cm
2
, 8.0 psi)
Swing Speed 13.3 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.5 km/h (3.4/2.2 mph)
Gradeability 35° (tan θ = 0.70)
NOTE: * The dimensions do not include the height of the shoe lug.
