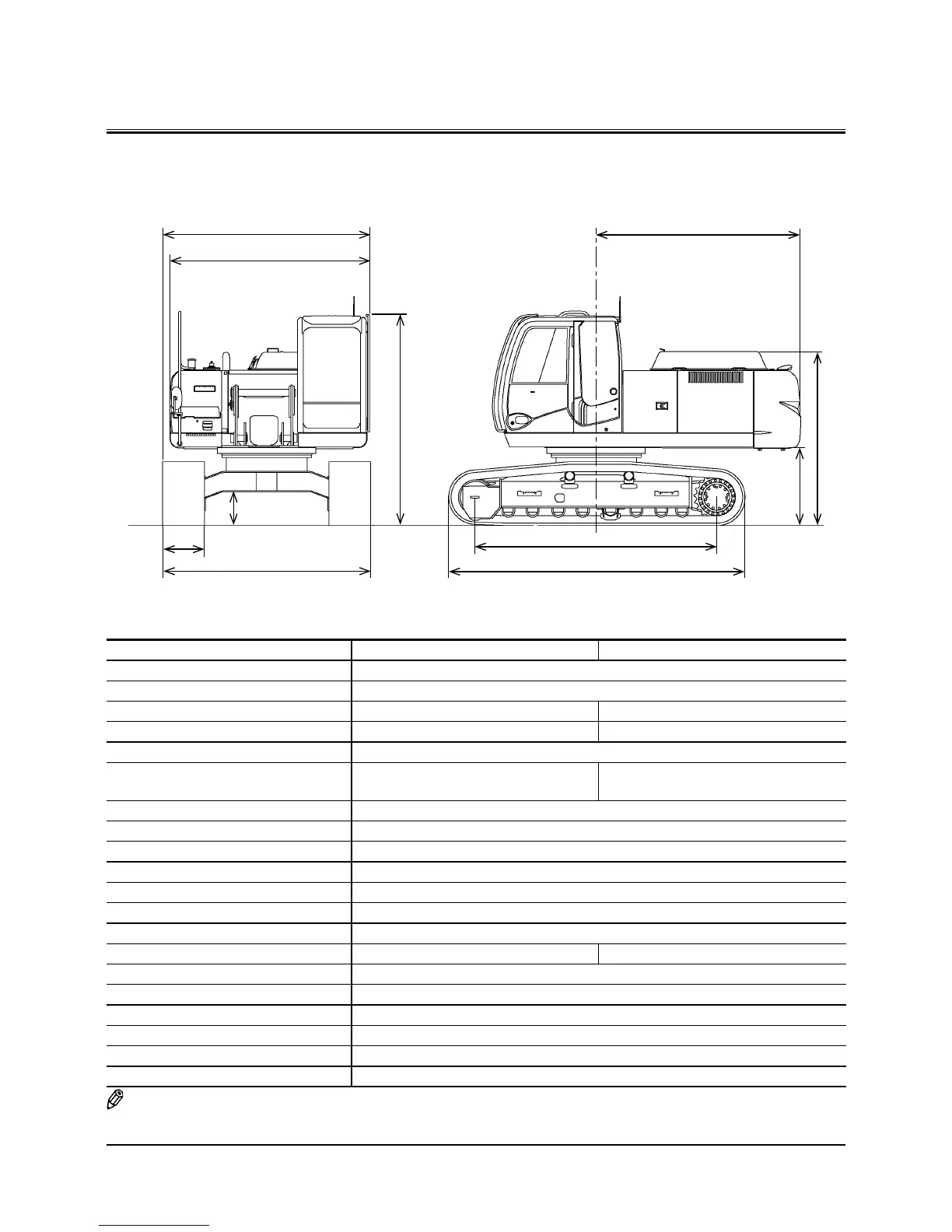

SPECIFICATIONS
ZX250LC-3, 250LCN-3 2-piece Boom
Model ZX250LC-3 2-piece Boom ZX250LCN-3 2-piece Boom
Type of Front-End Attachment 2.19 m (9 ft 9 in) Arm
Bucket Capacity (Heaped) PCSA 1.0 m
3
(1.3 yd
3
), CECE 0.9 m
3
Operating Weight 25600 kg (56400 lb) 25500 kg (56200 lb)
Base Machine Weight 19600 kg (43200 lb) 19500 kg (43000 lb)
Engine Isuzu AH-4HK1XYSA-01 132 kW/2000 min
–1
(180 PS/2000 rpm)
A: Overall Width
(Excluding back mirrors)
3190 mm (10 ft 6 in) 2990 mm (9 ft 10 in)
B: Cab Height
3010 mm (9 ft 11 in)
C Rear End Swing Radius
2940 mm (9 ft 8 in)
D: Minimum Ground Clearance
*460 mm (18 in)
E: Counterweight Clearance
* 1090 mm (3 ft 7 in)
F: Engine Cover Height
* 2425 mm (8 ft)
G: Overall Width of Upperstructure
2890 mm (9 ft 6 in)
H: Undercarriage Length
4640 mm (15 ft 3 in)
I: Undercarriage Width
3190 mm (10 ft 6 in) 2990 mm (9 ft 10 in)
J: Sprocket Center to Idler Center
3845 mm (12 ft 7 in)
K: Track Shoe Width
600 mm (24 in) (Grouser shoe)
Ground Pressure 51 kPa (0.52 kgf/cm
2
, 7.4 psi)
Swing Speed 13.5 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.4 km/h (3.4/2.1 mph)
Gradeability 35° (tan θ = 0.70)
NOTE: * The dimensions do not include the height of the shoe lug.
M1V1-12-001
A
G
B
D
K
I
C
F
E
J
H
