SPECIFICATIONS
12-6
SPECIFICATIONS

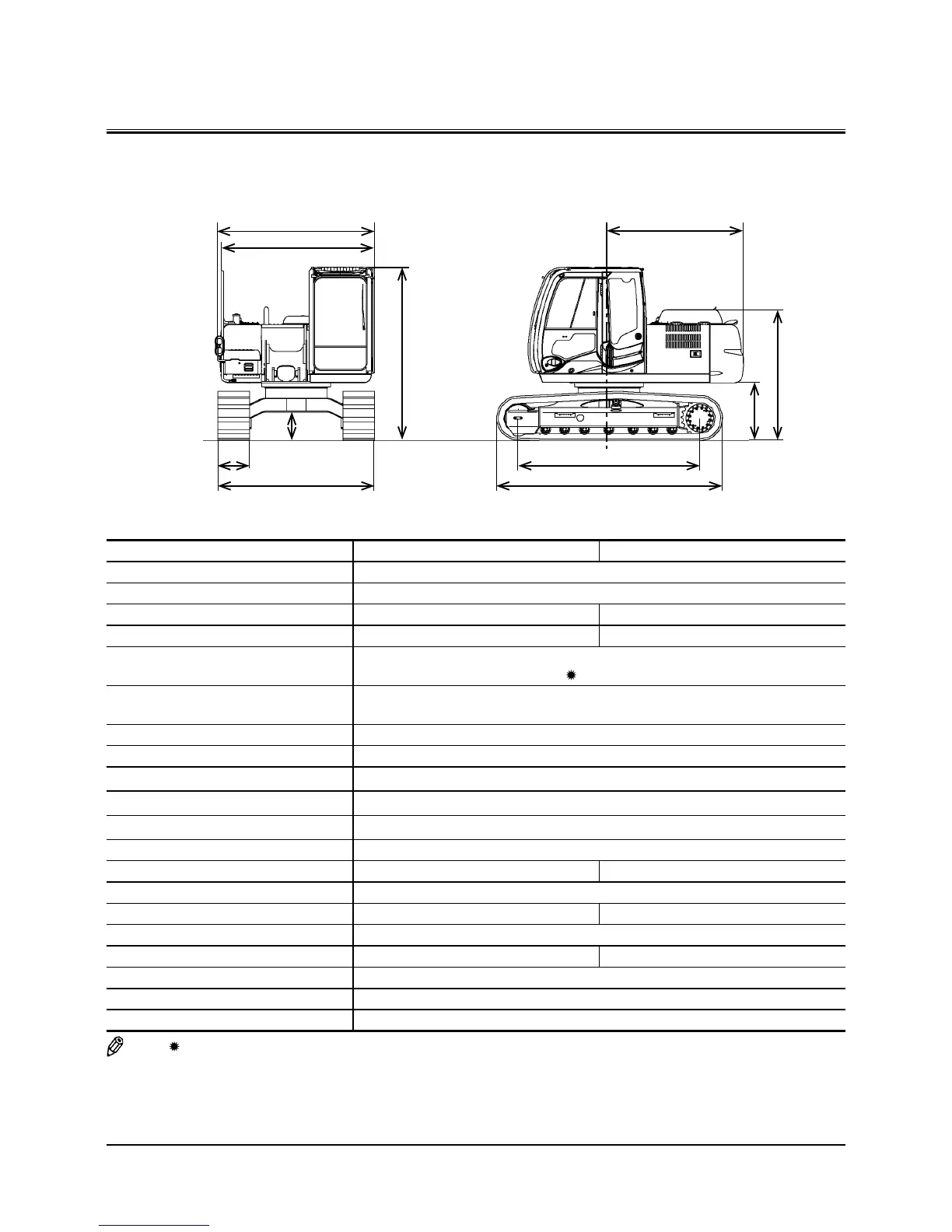

ZX130-3, 130LCN-3
M1U1-12-001
A
G
D
K
I
B
C
E
F
J
H
Model ZX130-3 ZX130LCN-3
Type of Front-End Attachment 2.52 m (8 ft 3 in) Arm
Bucket Capacity (Heaped) PCSA 0.50 m
3
(0.65 yd
3
), CECE 0.45 m
3
Operating Weight 12500 kg (27600 lb) 12700 kg (28000 lb)
Base Machine Weight 9900 kg (21800 lb) 10000 kg (22100 lb)
Engine
ISUZU AJ-4JJ1XYSA-03, 66 kW (90 PS)/1800 min
–1
(rpm)
69 kW (94 PS)/2000 min
–1
(rpm)
A: Overall Width
(Excluding back mirrors)
2490 mm (8 ft 2 in)
B: Cab Height
2740 mm (9 ft 0 in)
C: Rear End Swing Radius
2130 mm (7 ft 0 in)
D: Minimum Ground Clearance
*
440 mm (1 ft 5 in)
E: Counterweight Clearance
*
890 mm (2 ft 11 in)
F: Engine Cover Height
*
2050 mm (6 ft 9 in)
G: Overall Width of Upperstructure
2460 mm (8 ft 1 in)
H: Undercarriage Length
3580 mm (11 ft 9 in) 3750 mm (12 ft 4 in)
I: Undercarriage Width
2490 mm (8 ft 2 in)
J: Sprocket Center to Idler Center
2880 mm (9 ft 5 in) 3050 mm (10 ft 0 in)
K: Track Shoe Width
500 mm (20 in) (Grouser Shoe)
Ground Pressure 39 kPa (0.40 kgf/cm
2
) (5.7 psi) 38 kPa (0.39 kgf/cm
2
) (5.5 psi)
Swing Speed 13.7 min
–1
(13.7 rpm)
Travel Speed (fast/slow) 5.5/3.4 km/h (3.4/2.1 mph)
Gradeability 35° (tan θ = 0.70)
NOTE: H/P mode
* The dimensions do not include the height of the shoe lug.
