Check and Adjust Fan Belt Tension
(ZX120-3, 180-3 Class)
--- every 100 hours (first time after 50 hours)
IMPORTANT: Loose fan belt may result in insufficient bat
-
tery charging, engine overheating as well as
a rapid, abnormal belt wear. Belts that are
too tight, however, can damage both bear-
ings and belts.
Visually check the belt for wear. Replace if necessary. Check
fan belt tension by depressing the midpoint between fan
pulley (3) and alternator pulley (4) with the thumb. Deflec-
tion must be A with a depressing force of approximately 98
N (10 kgf, 22 lbf).
Model A
ZX120-3, 180-3 Class
7 to 8 mm
(0.28 to 0.32 in)
Checking
Check the drive belt for any wear and/or damage. Replace
the belt as needed. Check the belt tension if required.
Adjust Drive Belt Tension
1. Loosen lock nut (6) and alternator lower mounting bolt
(7).
2. Rotate tension adjust bolt (5) to adjust the belt tension.
3. After completing adjustment, tighten lock nut (6) and
alternator lower mounting bolt (7) to specifications.
Standard Tightening Torque:
Nut: 25 N•m (2.5 kgf•m, 18 lbf•ft)
Bolt: 52 N•m (5.2 kgf•m, 38 lbf•ft)
IMPORTANT: When a new belt is installed, be sure to re-
adjust the tension after operating the en-
gine for 3 to 5 minutes at slow idle speed to
be sure that the new belt is seated correctly.

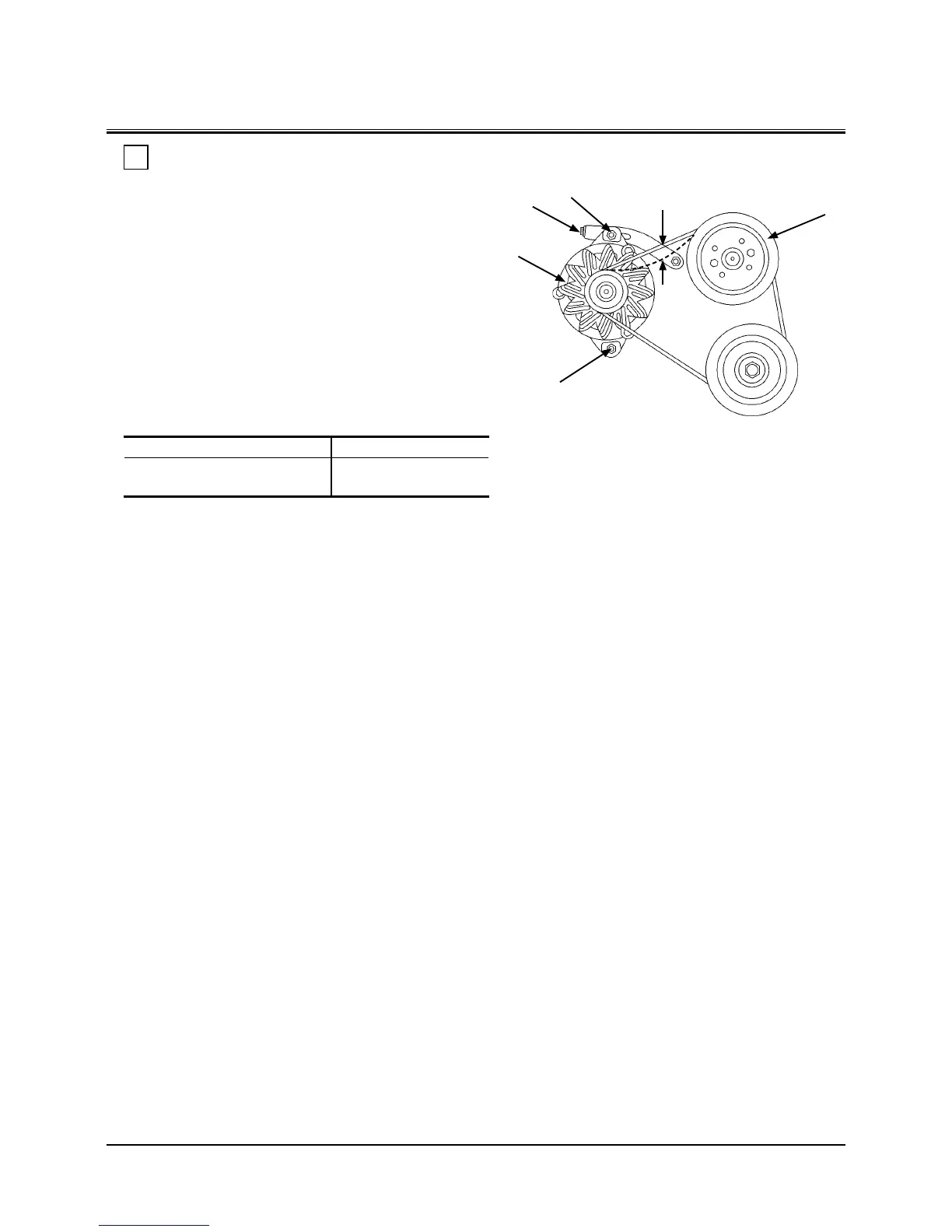

6
3
Deection
7 to 8 mm (0.28 to 0.32 in)
98 N (10 kgf, 22 lbf)
M1U1-07-089
ZX120-3, 180-3 Class
5
4
7
To Next Page
