- 18 -
8) Connection of
ModBus
The IPC5000 with the optional communication provides an RS 485 communications ports
with ModBus RTU protocol support.

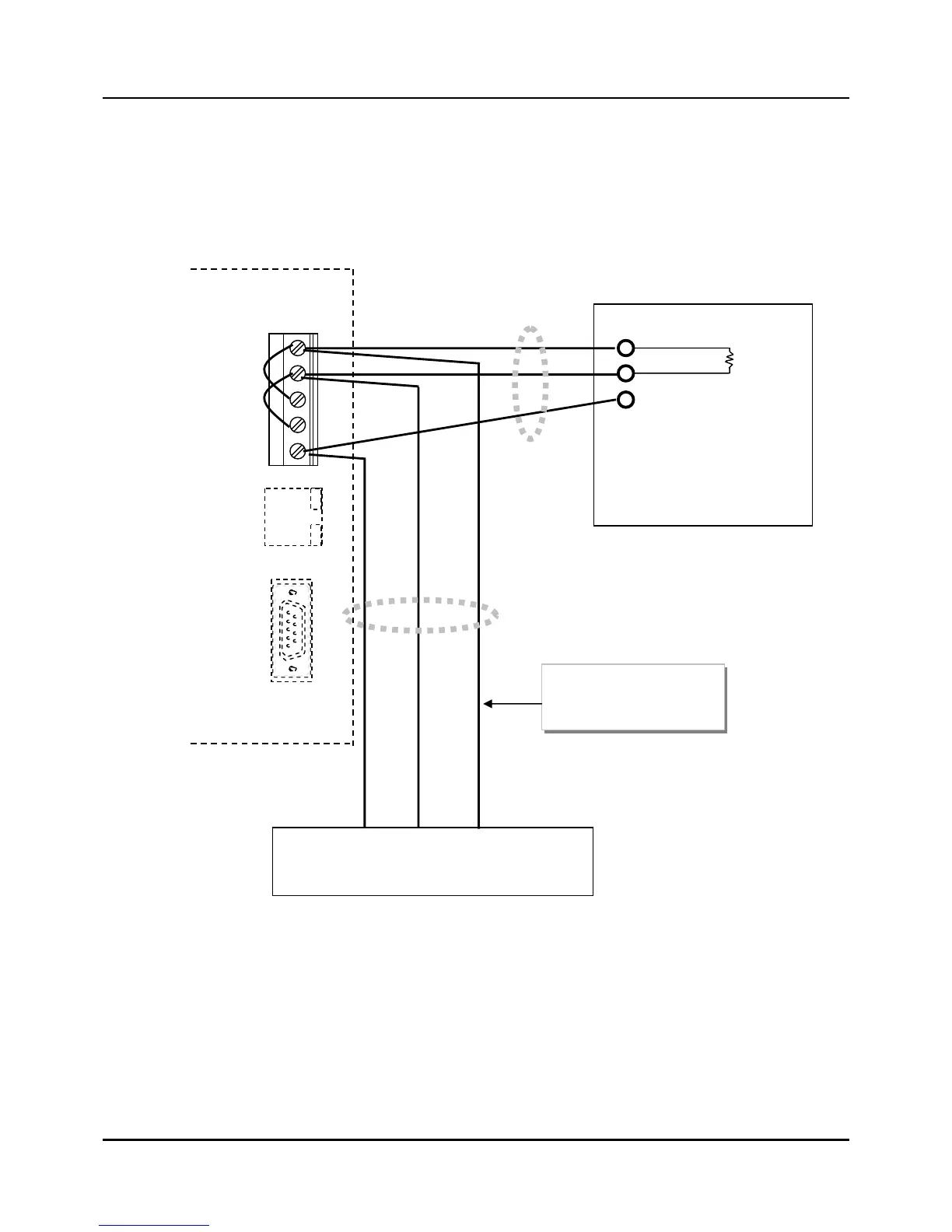

Fig. 2.7.9 RS422/485/Modbus Communications Option Connections (3-Wire shield)
3-Wire
Shielded
SG
SDB
SDA
RDB
RDA
MODBUS
Master
RX+/TX+
RX-/TX-
SG
T
o other communication IPC5000
(Maximum 31)
* 120 Ohm Resistor on Last Leg
120 Ohm
Resistor
Do not run these lines in
the same conduit as AC
power
Use shielded
twisted pair cables
27
29
Table of Contents
Table of Contents
6
Overview
11
Introduction
11
Feature Summary
11
Installation and Wiring
12
Installation Environment
12
Installation Precautions
13
Panel Cutout Dimension
14
Fig. 2.3.1 Panel Cutout
14
Installation of Fixed Brackets
16
Fig. 2.4.1 Installation of Fixed Brackets
16
Making Terminal Connections
18
Fig. 2.5.1 Terminal with Tube
18
Terminal Array
19
Fig. 2.5.2 Terminal Diagram Label and Terminal Block Style
19
Wiring
20
Table 2.7.1 Minimum Recommended Wire Sizes
20
Fig. 2.6.1 Mains Power Supply
21
Fig. 2.6.2 Analog Input 1 / Input 2 Connections
22
Fig. 2.6.3 Control Output 1 / Output 2 Connections
23
Fig. 2.6.4 Digital Outputs Connection
24
Fig. 2.6.5 Digital Inputs Connections
25
Fig. 2.6.6 Auxiliary Output 3 Output 4 Connections
26
Fig. 2.6.7 RS-232C Communication 9 Pin Connection
26
Fig. 2.6.8 RS-232C Communication 25 to 9 Pin Connection
27
Fig. 2.6.9 Rs422/485/Modbus Communications Option Connections (3-Wire Shield)
28
Fig. 2.6.10 Rs422/485/Modbus Communications Option Connections (5-Wire Shield)
29
Table 2.7.2 Instrument Input Range Code and Range
31
Table 2.7.3 the Function Table of External Switch Input (Digital Input)
33
Terminal Allocation
35
Rear Terminal
36
Fig. 2.8.1 Rear Terminal
36
Configuration
37
Screen Configuration
37
Fig. 3.1.1 Screen Switch Block
37
Configuration Screen
38
Fig. 3.1.2 Main Menu Screen
38
Fig. 3.2.1 SETUP (Configuration)
38
AI SET Screen
39
Fig. 3.3.1 AI SET Screen
39
Fig. 3.3.2 SENSOR TYPE SELECTS
39
Fig. 3.4.1.A Outputs Assigning Block Diagram-IPC5000D
43
Fig. 3.4.1.B Outputs Assigning Block Diagram-IPC5000S
44
PWM Set Screen
45
Fig. 3.4.2 PWM SET Screen-IPC5000S
45
Fig 3.4.4 Pulse Control Output at MV = 75
46
AO SET Screen
47
Fig. 3.5.1 AO SET Screen
47
Fig. 3.5.2 Combo Box for Selecting Anlog Output Source
49
Fig. 3.5.3 Current Output Scale Adjustable Graph
49
DIO Status Screen
50
Fig. 3.6.1 DI/DO Screen
50
Fig. 3.6.2 Digital Outputs ON/OFF Status
53
Fig. 3.6.3 Digital Output Type Selection
53
Fig. 3.6.4 DO TYPE SET Screen
54
Fig. 3.6.5 Arranging PWM No. of Digital Output
54
RANGE SET Screen
55
Fig. 3.7.1 RANGE SET Screen
55
OFFSET Screen
57
Fig. 3.8.1 OFFSET Screen
57
Compensation Set Screen
58
Table 3.6.1 Defaults of Compensation
58
Fig. 3.9.1 Compensate Set Screen
58
Event Set
60
Fig. 3.10.1 the Part to Arrange Events to Digital Outputs on FIX SET Screen of User Manual
61
Fig. 3.10.2 the Part to Arrange PV and Time Events to Digital Outputs on SEG EDIT Screen
62
Of User Manual
62
MODE Event Set Screen
63
Table 3.11.1 Mode Event Information
63
Fig. 3.11.1 MODE EVENT SET
63
Table 3.11.2 DO Information Assigned by REGISTRATION Number
65
ALARM EVENT SET Screen
66
Fig. 3.12.1 ALARM SET Screen
66
Table 3.12.1 Alarm Event Flowchart
68
Table 3.12.2 Alarm Event On/Off Operation Algorithm
69
CONTROL SET Screen
70
Fig. 3.13.1 CONTROL SET Screen
70
Fig. 3.13.2 PID ZONE Set Screen
71
Fig. 3.13.3 Example for Setting Segment PID Group
72
PID ZONE SET Screen
73
Fig. 3.14.1 PID ZONE SET Screen
73
PID CONSTANT SET Screen
77
Fig. 3.15.1 PID Const Set
77
PID Set Screen
79
Fig. 3.16.1 PID SET Screen
79
SYSTEM SET Screen
81
Fig. 3.17.1 SYSTEM SET Screen
81
Fig. 3.17.2 Fix Control Operation When SP Tracking on and JC = 2
82
Fig. 3.17.3 Fix Control Operation When SP Tracking off and JC = 2
82
TROUBLE SET Screen
85
Fig. 3.18.1 Trouble and Tune Lock Setting Screen
85
Fig. 3.18.2 Trouble Message Window
86
Fig. 3.18.3 Trouble Message List
86
Fig. 3.18.4 MON SUB Screen
87
TROUBLE MESSAGE Set
88
Fig. 3.19.1 Assigning the TROUBLE MESSAGE
88
Fig. 3.19.2 Keypad Switching
88
NETWORK SET Screen
89
Fig. 3.20.1 Network Setting Screen
89
INITIALIZE Screen
90
Fig. 3.21.1 INITIAL Screen
90
Fig. 3.21.2 Confirm for Initializing
90
Table 3.21.1 Initial PID Parameter List
91
Specification
92
Model Number Interpretation
100
