Honeywell IPC5000 User Manual

- 69 -
3.16 PID set screen

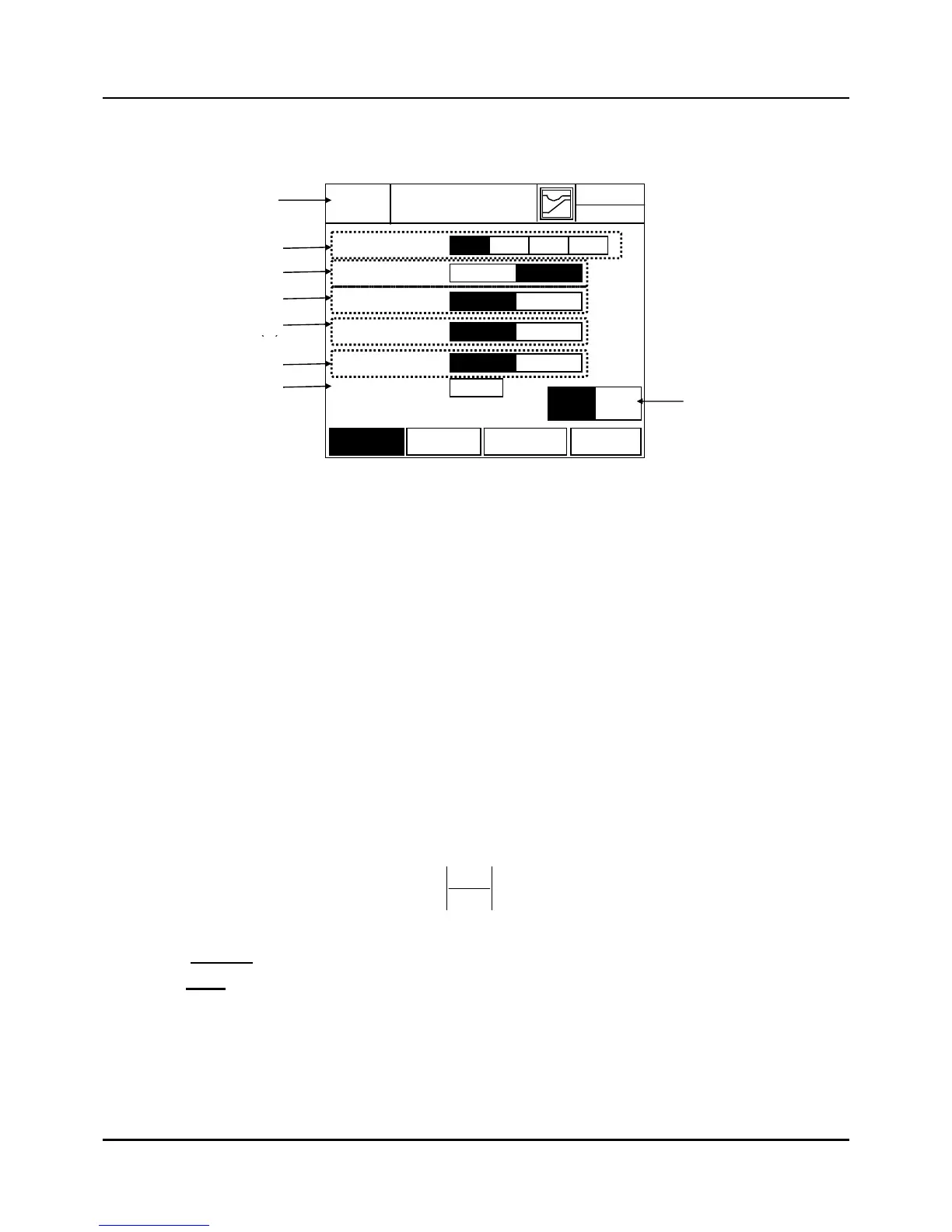

Fig. 3.16.1 PID SET screen
For Channel selection, it is available for IPC5000D.
(1) Control Algorithm selection button : It is changeable only at STOP mode.
z Button to select PID Control Algorithm.
z PID-A : This is three-mode control algorithm(P(Proportional), I(Integral),D(Derivative))
and used for most control field.
z PID-B : Unlike the PID A equation, the controller gives only an integral response to a
setpoint change, with no effect on the output due to the gain or rate action, and
it gives full response to PV changes. Otherwise controller action is as
described for the PID A equation.
z DUP-A : PID-A algorithm for Heat/Cool control.
z DUP-B : PID-B algorithm for Heat/Cool control.
(2) P-value Set selection button
z Selects P (Proportional Band) value type
GAIN =
BP.
%100
P-BAND is the range indicated by the percentage of process value.
GAIN
is the ratio of process value change (%) to output change (%).
(3) Reset value set selection button
z Selects the type applied to Reset value.
z MIN / RPT: Minutes per Repeat.
z RPT / MIN: Repeat per Minutes.
Return to
configuration
screen
(1)
(2)
(3)
(4)
(5)
(6)
EXIT
12 H 59 M
PID SET
2003.01.23
PID SET
PID ZONE CONTROL
CONTROL ALGORITHM
P VALUE SET
RESET VALUE SET
PID-A PID-B
GAIN P-BAND
MIN / RPM RPM / MIN
CH2CH1
FUZZY CONTROL
OFF ON
DUP-A DUP-B
CONTROL DIRECTION
REVERSE DIRECT
PID VAL
FAIL-SAFE
0.0
%
(2)
Channel selection
