6.3.3 Sector Configuration
Once the network has been completely configured
with control panels and repeaters, the network can
be partitioned so that control panels and repeaters
located in each geographical sub-network (sector)
respond only to events and control actions arising
within the same sector, while network events and
control actions arising from other sectors are filtered
out, i.e. ignored. To configure network event filtering
go to the System Parameters menu to select the
Sector Configuration option as follows:
Note: If you have a panel configuration open
you will be prompted to close it before
selecting this option.

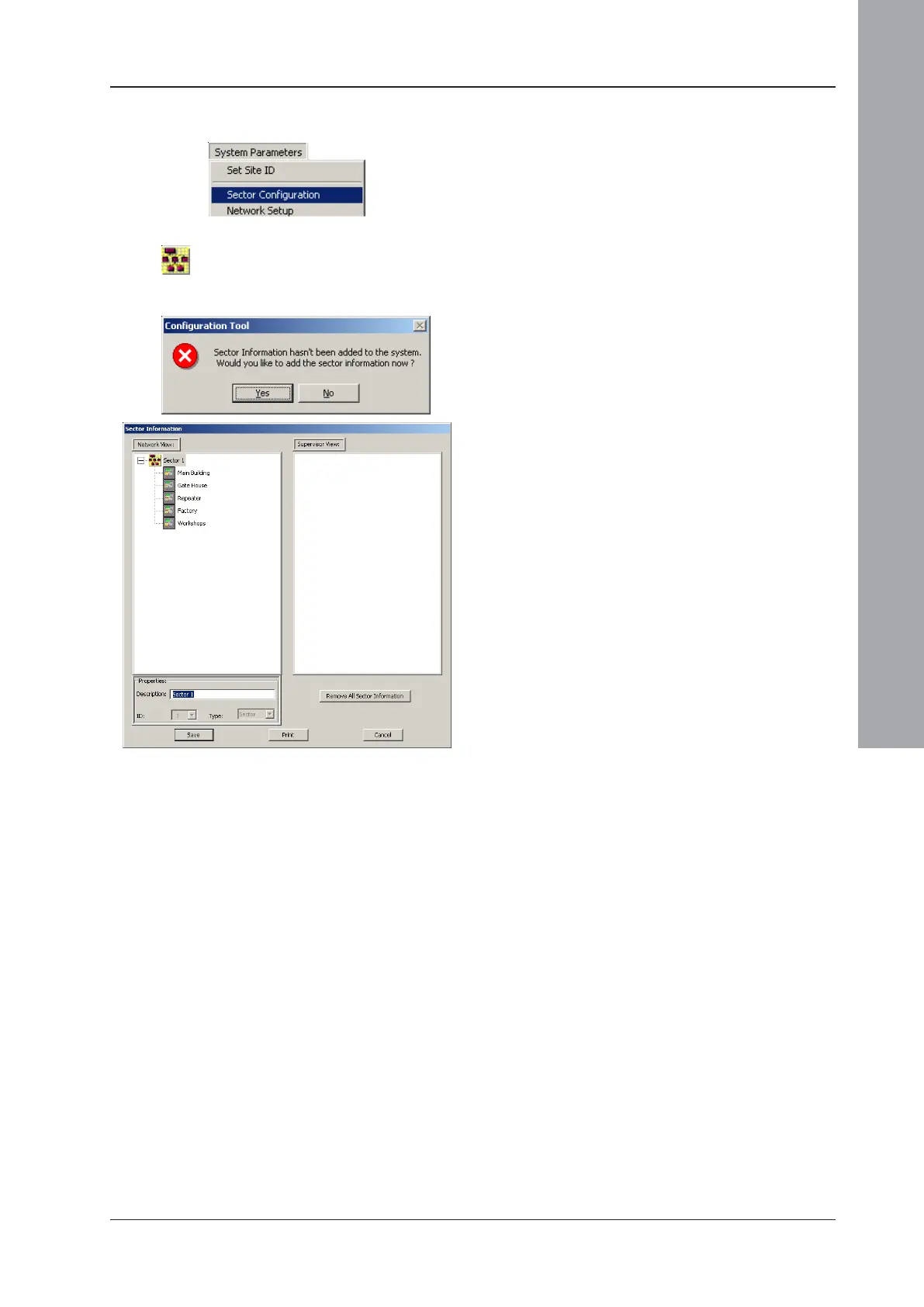

1 Select the Sector Configuration option. If the
network is not yet set up for filtering the
configuration tool alerts you to this fact by
displaying the warning shown at left. After
confirming that you require to add sector
information the Sector Information screen is
displayed as below left. This screen features
a simple two-window structure: the left-hand
window is the Network View and the right-hand
window is known as the Supervisor View.
The complete ID
2
net network configuration
is displayed in the Network View window
whilst the Supervisor View window is empty.
2 Sectors can be created using the Network View
window and the allocation of panels and repeaters
to sectors can also be carried out here. In
addition, each sector and node ID can be edited
using the properties box below this window.
Network Sector
