21Chapter 5 Mechanical Installation
Searchline Excel™ Plus / Searchline Excel™ Edge – Technical Manual
5.5Mounting the transmitter and receiver
The mechanical installation is the same for both the receiver and the transmitter.
Searchline Excel Plus & Searchline Excel Edge will normally be mounted at height, for example secured to a pole using
the UBolts or Worm Drive Clips supplied in the Pole Installation Kit (recommended option).
The supplied Universal Mounting Bracket allows mounting on a plate, pole or other plant infrastructure. All bolts are captive
to avoid accidental loss during installation.
To ensure functionality of the fine adjustment screws, clean the threads with a fabric and apply grease prior to installation.
Repeat with each re-alignment.
IMPORTANT: When tightening the pivot bolts, first, tighten the left-facing horizontal M10 bolt to 30 Nm/ 22 lb.ft torque
to fix the pivot in its horizontal position. Second, tighten the right-facing horizontal M10 bolt to 10 Nm/ 7.4 lb.ft torque.
116 mm (4.57")
137 mm (5.39")
126 mm (4.96")
165 mm (6.5")
126 mm (4.96")
165 mm (6.5")
168 mm (6.6")
41 mm (1.6")

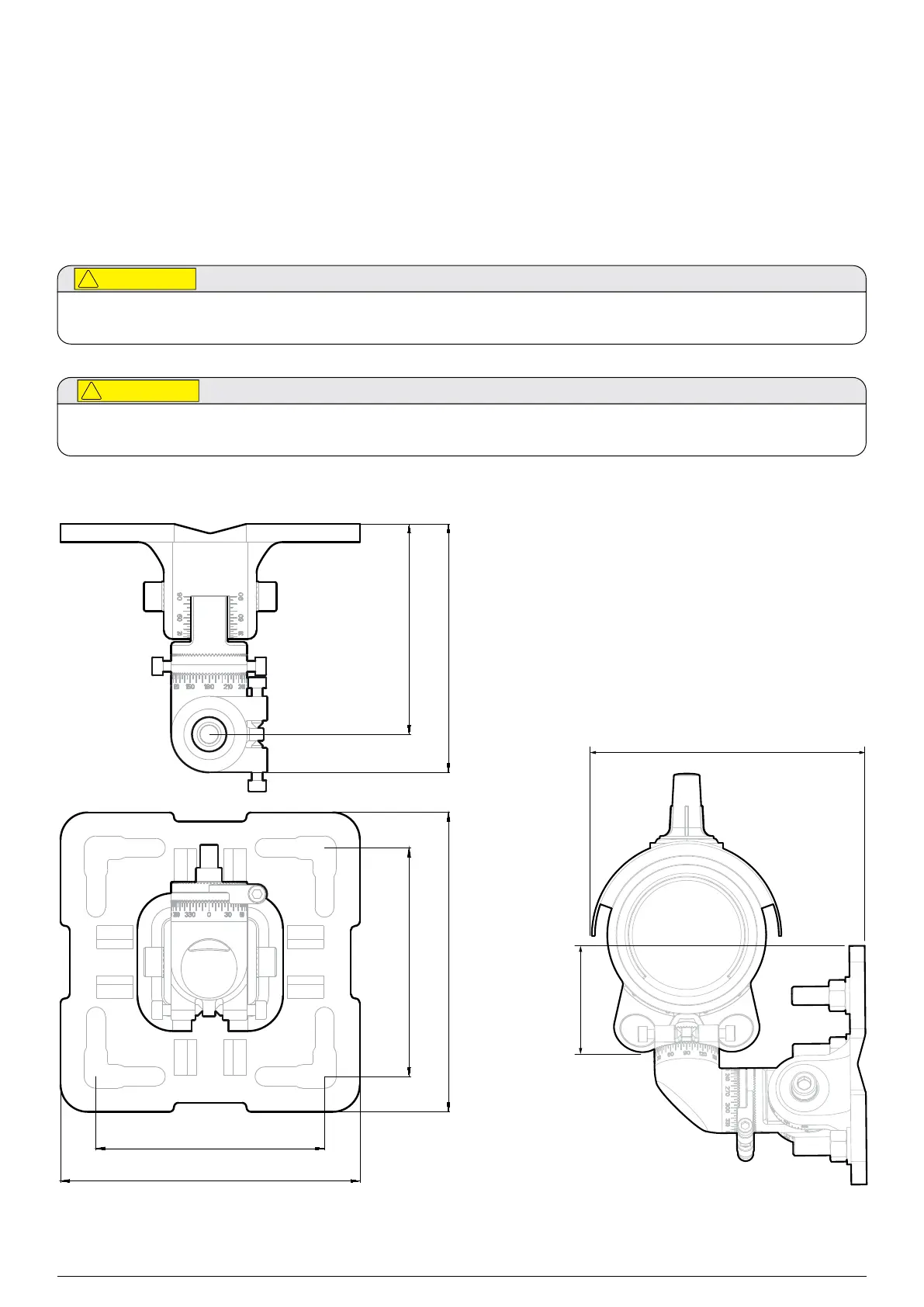

Figure 7.Universal Mounting Bracket general view and dimensions
