35Chapter 6 Electrical Installation
Searchline Excel™ Plus / Searchline Excel™ Edge – Technical Manual

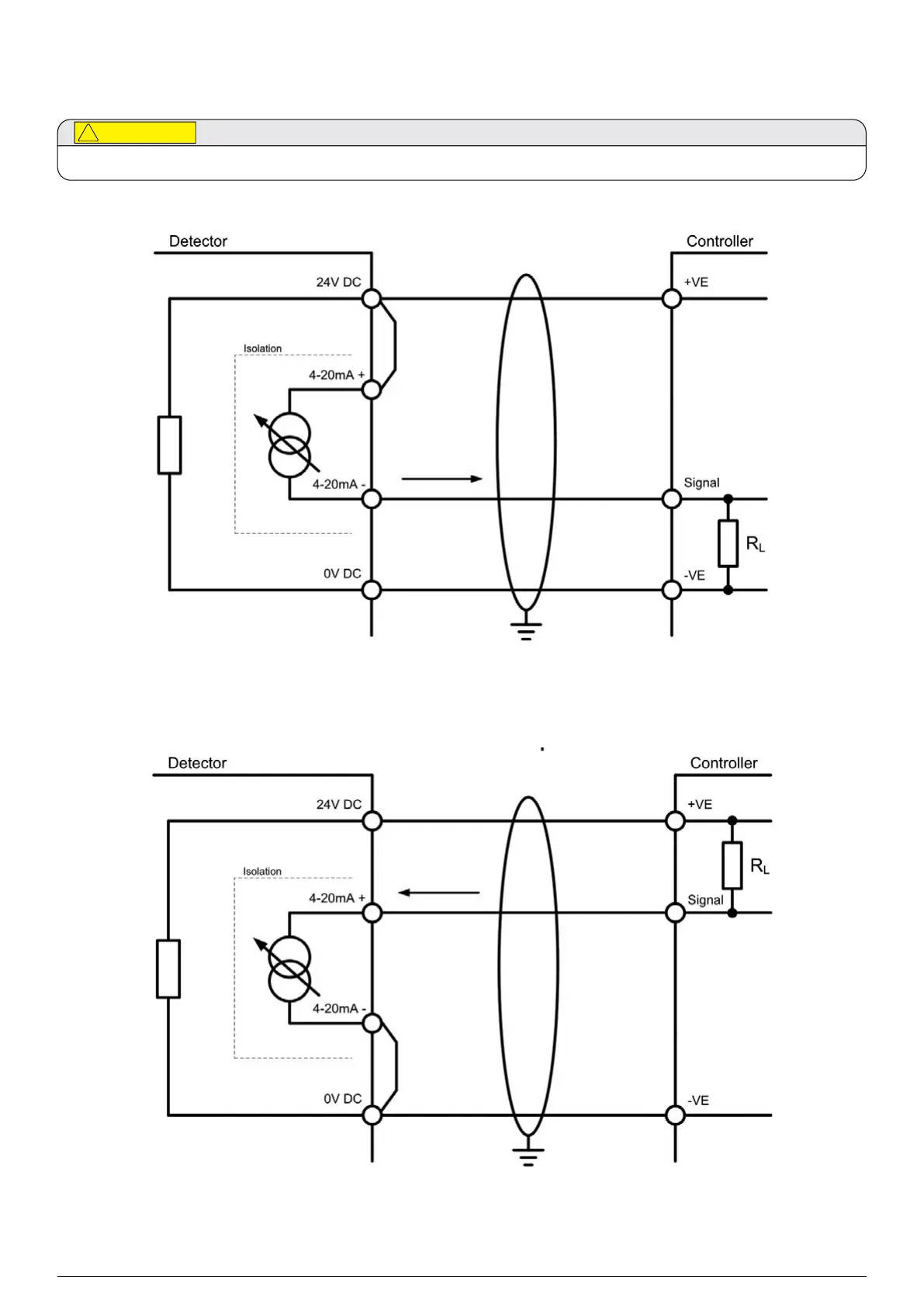

6.2.3Connection for mA loop Configuration as Current Source
CAUTION
!
Ensure that jumper wires are installed applicable for the selected mA current loop configuration.
Figure 22.mA loop configuration as current source
6.2.4Connection for mA Loop Configuration as Current Sink
Figure 23.mA loop configuration as current sink
