3-102
Performance Tests
SDH Transmit/Receive Jitter Amplitude Accuracy
Equipment Required
* Note the 15dB optical attenuator accessory E4546A (supplied with your
instrument) is NOT suitable for this purpose.
1 Recall the HP 37718A DEFAULT SETTINGS as shown on page 3-4.

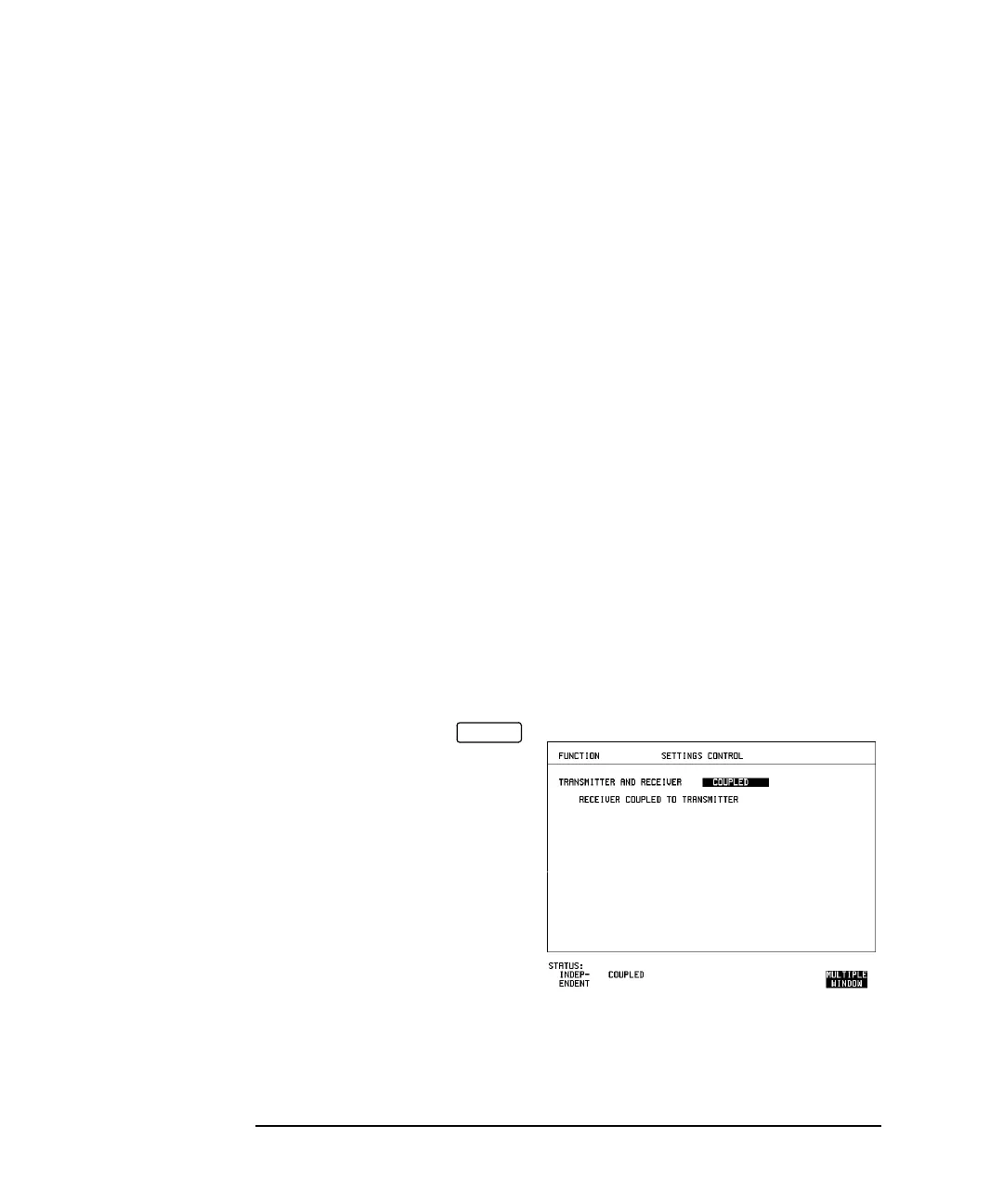

2 Setup the HP 37718A
display as shown opposite.
Spectrum Analyzer : HP 8560E
Optical Coupler : HP 15744C
O/E Converter : HP 11982A
Optical Attenuator : HP 8156A*
Synthesizer : HP 3335B Opt 001
Oscilloscope : HP 54520A
75Ω/50Ω Matching Pad
: HP 11825B
75Ω Power Splitter
: SUHNER 4901.02A
75Ω Termination
: HP 15522-80010
Blocking Capacitor : HP 10240B
OTHER
To Next Page
