3-103
P
erformance T
ests
SDH T
ransmit/Receive Jitter Amplitude Accuracy
Procedur
e
STM-1e Electrical T
ransmit/Receive SDH Jitter Amplitude Accuracy
3

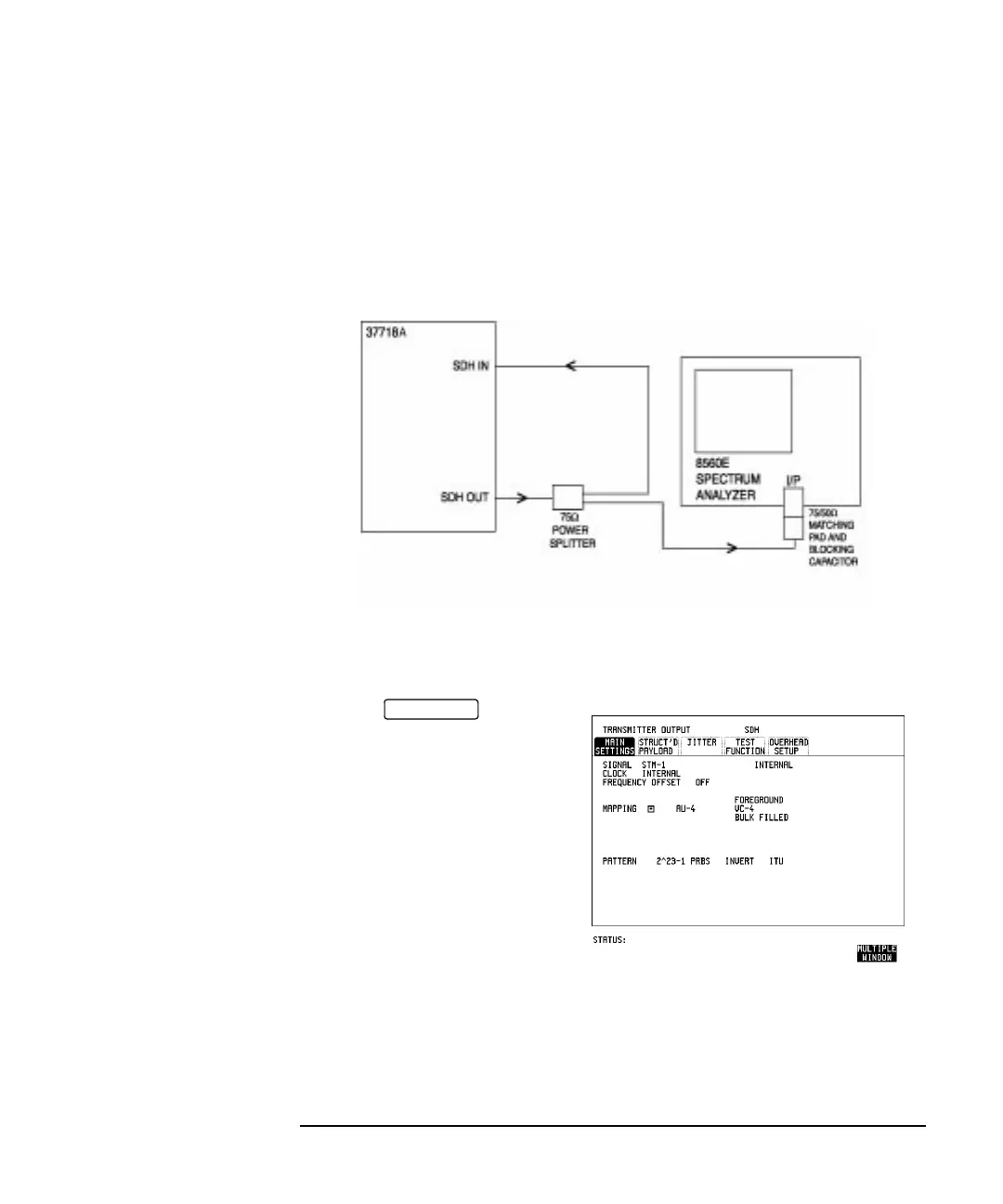

Connect up the equipment as shown in Figure 3-9.
Figure 3-9
STM-1e Electrical T
ransmit/Receive T
est Setup
4
Select
and setup
the
HP
37718A
display
as
sho
wn
opposite. Setup for STM-1 E
CMI with bulk loading.
TRANSMIT
142
144
