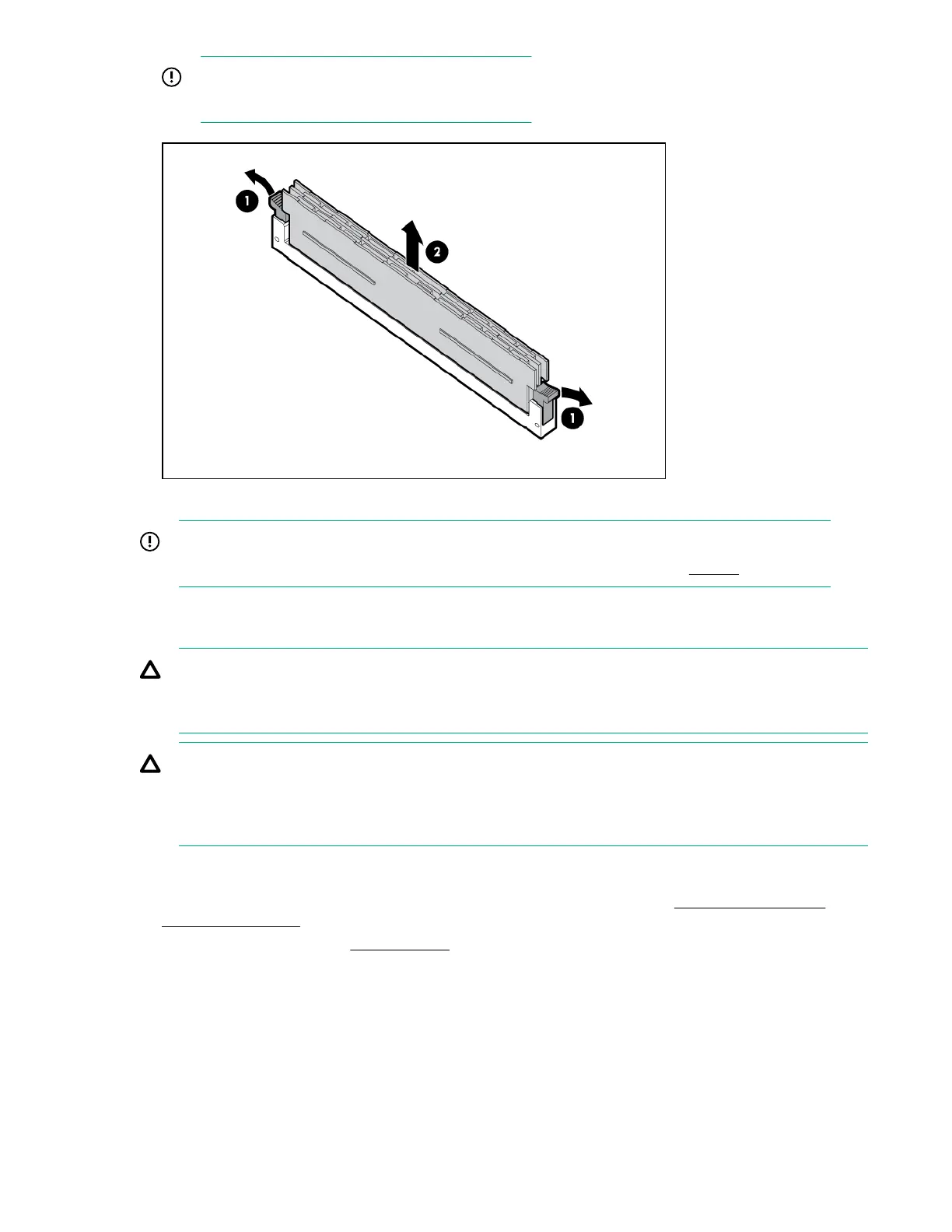

IMPORTANT:
DIMMs do not seat fully if turned the wrong way.
To replace the component, reverse the removal procedure.
IMPORTANT:
Follow the DIMM installation guidelines when replacing or adding DIMMs (DIMMs on page 48).
CPU baffle
CAUTION:
To prevent damage to the server blade, never power on a server blade without a CPU baffle or CPU
in each CPU socket. The CPU baffle is needed for proper system cooling.
CAUTION:
Immediately install a CPU baffle in an empty CPU socket. To avoid damage to the socket pins, the
socket should never be uncovered for more than 5 seconds. If the socket is damaged, the entire
base blade must be replaced.
Procedure
1. Power off the server blade and remove it from the server blade enclosure (Preparing the server
blade for servicing on page 112).
2. Remove the access panel (Access panel on page 117).
3. Pull the CPU baffle straight up and out.
122 CPU baffle
