NOTE:

When a mixed configuration of BL860c i4, BL870c i4, and BL890c i4 server blades and other c-

Class server blades is in the same enclosure, the preferred location for the P711m cards is slot 3.

Supercap pack mounting kit

The Smart Array P711m Controller includes a cabled Supercap Pack which mounts inside the server

using the orderable AM341A Mounting Kit for Low profile battery (Hewlett Packard Enterprise part

number AD399-2132A KIT, RAID BATTERY HOLDER). This kit contains a black metal mounting bracket

and a mezzanine card blank. The mounting bracket clips onto a mezzanine card in slot 1. If no card is

used in slot 1, the mezzanine card blank included in the kit must be installed to mount the bracket.

For installing the bracket on to the server blade, the mounting bracket has:

• A mezzanine post loop that slides over the abutting mezzanine 2 post

• A thumbscrew clip that clips over the mezzanine 1 card or mezzanine blank thumbscrew located at the

rear of the blade

• A mezzanine foot that clips over the edge of the mezzanine 1 card or mezzanine card blank that is

installed closest to the center of the blade

For installing the Supercap Pack onto the bracket, the mounting bracket has:

• A C-hook to restrain the cable

• Two restraining clips to restrain the Supercap Pack

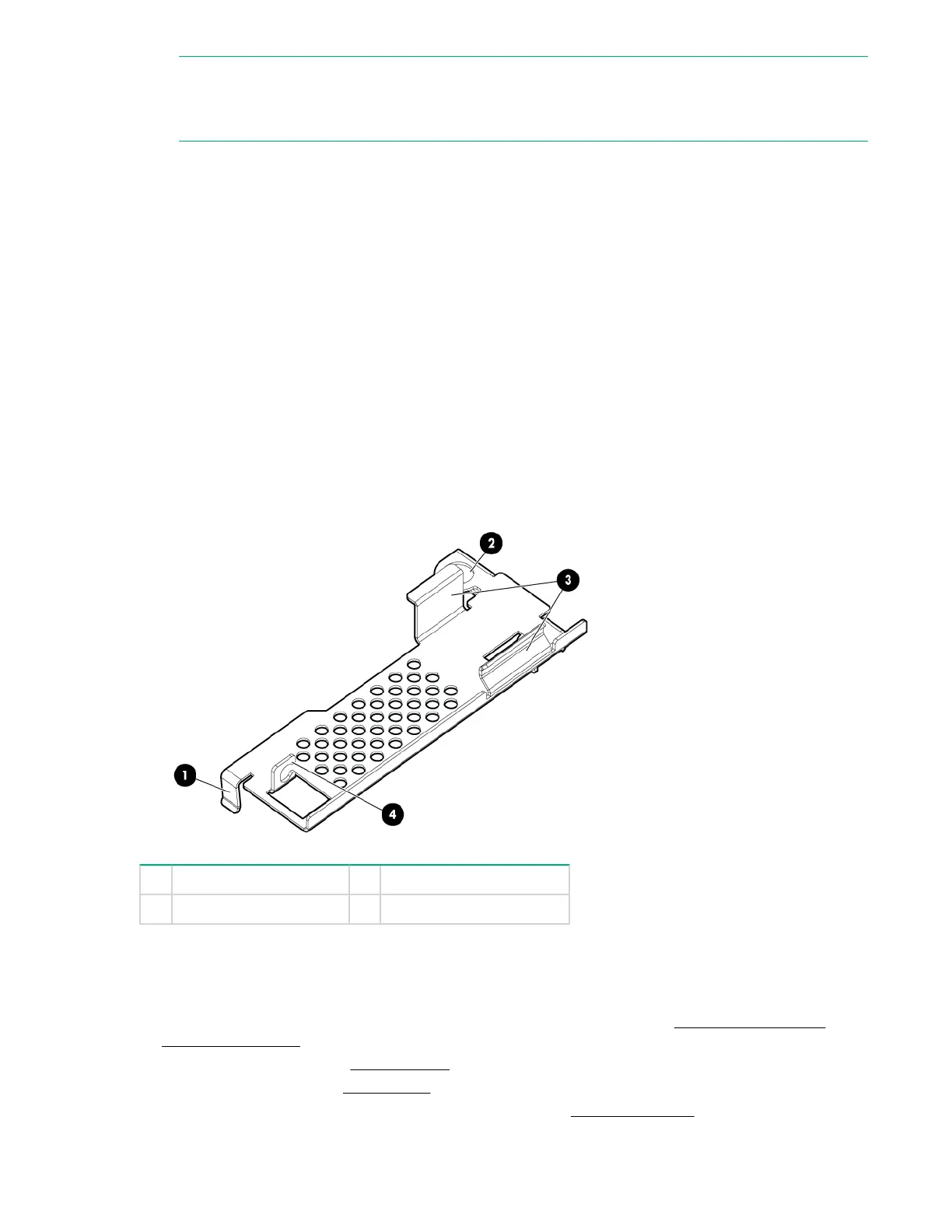

1 Mezzanine foot 3 Cable restraining clips

2 Mezzanine post loop 4 C-hook

Installing the Supercap mounting bracket

Procedure

1. Power off the server blade and remove it from the server blade enclosure (Preparing the server

blade for servicing on page 112).

2. Remove the access panel (Access panel on page 117).

3. Remove the DIMM baffle (DIMM baffle on page 120).

4. Temporarily remove any mezzanine card installed in slot 2 (Mezzanine cards on page 127).
