HP Integrity BL860c i4 User Manual

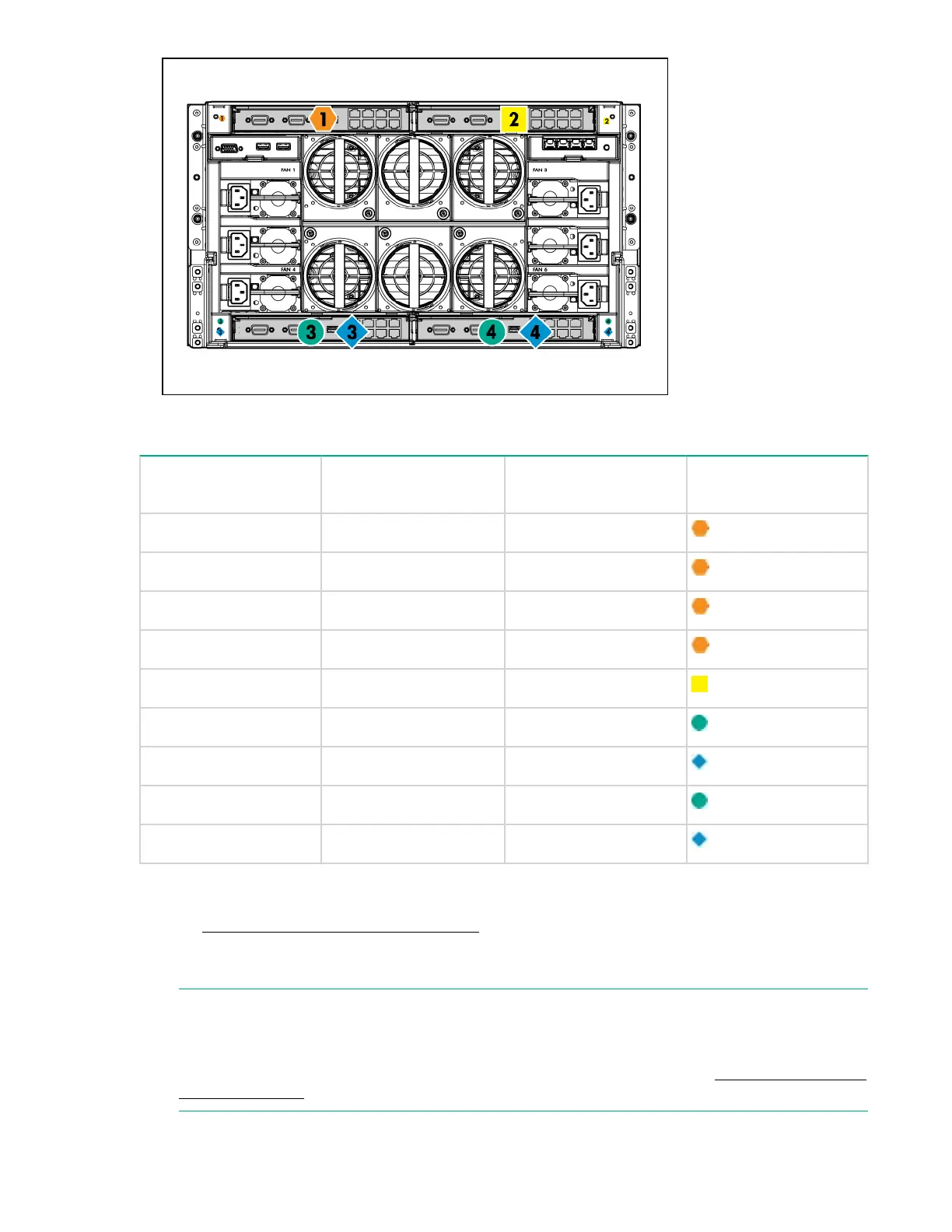

To support network connections for specific signals, install an interconnect module in the bay
corresponding to the embedded NIC or mezzanine signals.
Server blade signal c7000 interconnect bay c3000 interconnect
bay
Interconnect bay
labels
NIC 1 (Embedded) 1 1
NIC 2 (Embedded) 2 1
NIC 3 (Embedded) 1 1
NIC 4 (Embedded) 2 1
Mezzanine 1 3 and 4 2
Mezzanine 2 5 and 6 3 and 4
7 and 8 3 and 4
Mezzanine 3 5 and 6 3 and 4
7 and 8 3 and 4
For detailed port mapping information, see the BladeSystem enclosure installation poster or the
BladeSystem enclosure setup and installation guide for your product on the Hewlett Packard Enterprise
website (http://www.hpe.com/info/Blades-docs).
Installing the server blade into the enclosure
NOTE:
When installing additional blades into an enclosure, additional power supplies might also be needed
to meet power requirements. For more information, see the BladeSystem enclosure setup and
installation guide for your product on the Hewlett Packard Enterprise website (http://www.hpe.com/
info/Blades-docs).
22 Installing the server blade into the enclosure
