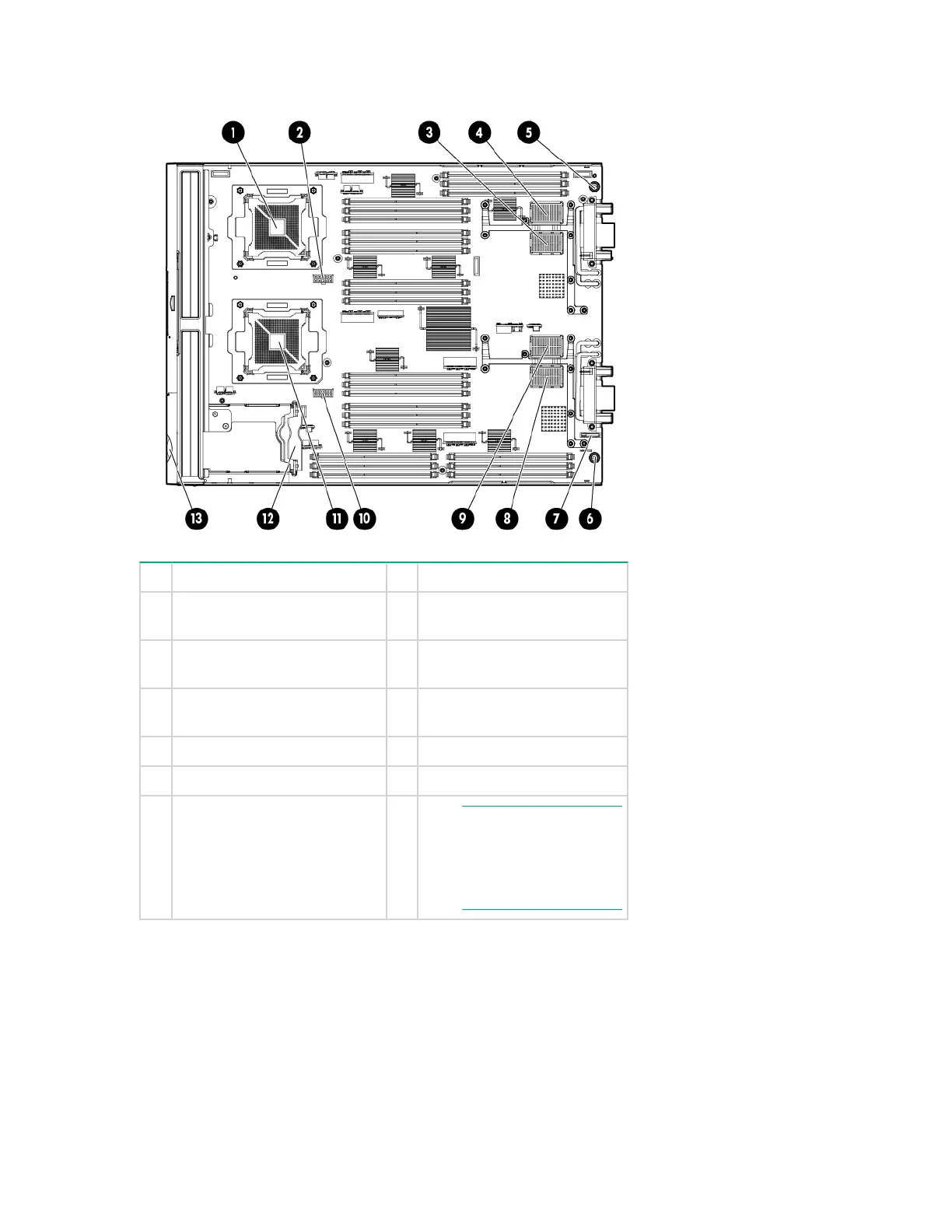

Server blade components
1 CPU0 8 ICH mezzanine connector
2 CPU0 power connector 9 Mezzanine connector 3
(type 1 or 2)
3 Mezzanine connector 1 (type
1)
10 CPU1 power connector
4 Mezzanine connector 2 (type
1 or 2)
11 CPU1
5 System board thumbscrew 12 SAS backplane
6 System board thumbscrew 13 Pull tab
7 Battery (CR2032)
NOTE:
The iLO 3 password is
located on the pull
tab.
Server blade components 9
