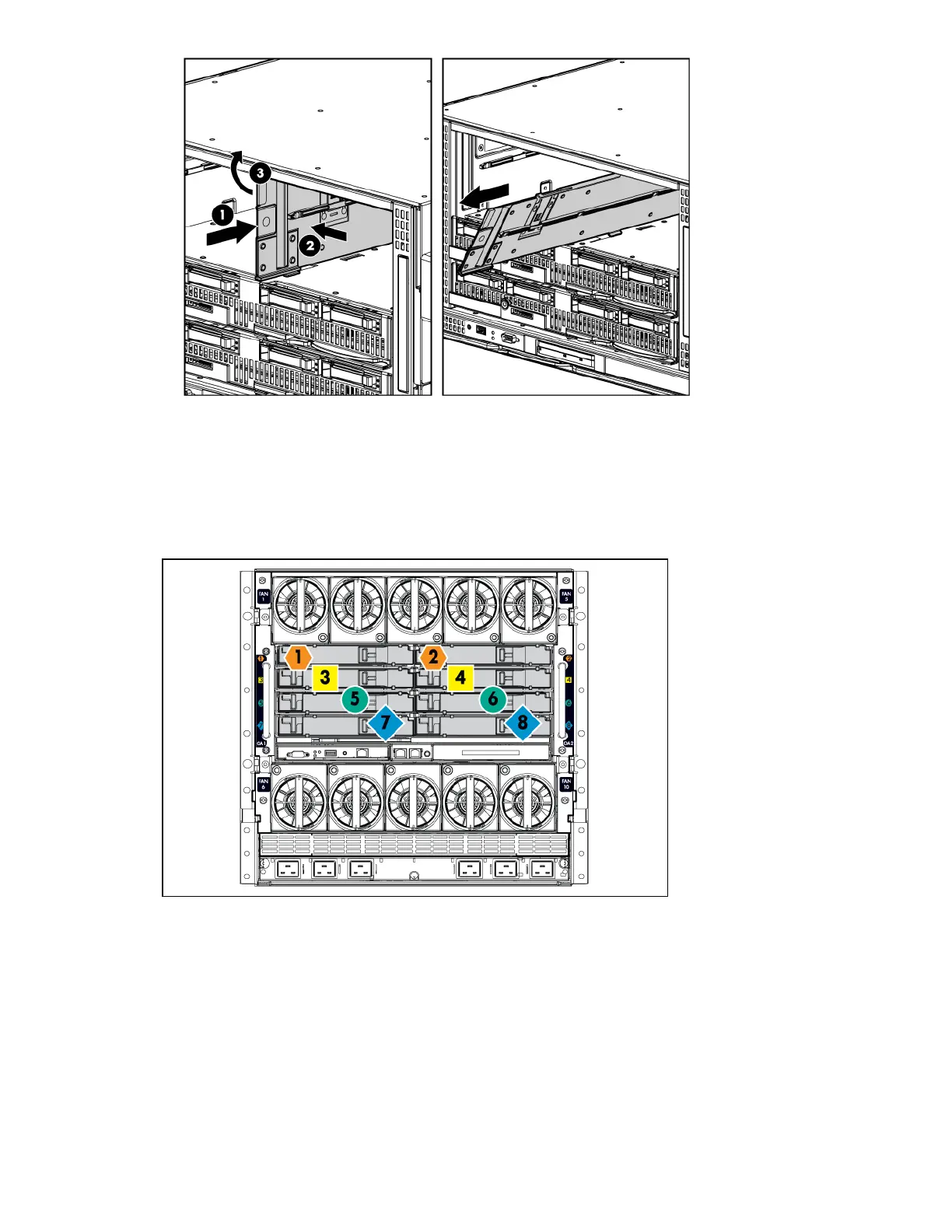

Installing interconnect modules
For specific steps to install interconnect modules, see the documentation that ships with the interconnect
module.
Interconnect bay numbering and device mapping
•
HPE BladeSystem c7000 Enclosure
•
HPE BladeSystem c3000 Enclosure
Installing interconnect modules
21
20
22
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
3
Overview
8
Server Blade Overview
8
Server Blade Components
9
Site Preparation
10
Server Blade Dimensions and Weight
10
Enclosure Information
10
Enclosure Environmental Specifications
11
Sample Site Inspection Checklist
11
Power Subsystem
14
ESD Handling Information
15
Unpacking and Inspecting the Server Blade
15
Verifying Site Preparation
15
Inspect the Shipping Containers for Damage
15
Unpacking the Server Blade
16
Verifying the Inventory
16
Returning Damaged Equipment
16
Installing the Server Blade into the Enclosure
17
Installation Sequence and Checklist
17
Installing and Powering on the Server Blade
17
Preparing the Enclosure
17
Removing a C7000 Device Bay Divider
18
Removing a C3000 Device Bay Mini-Divider or Device Bay Divider
19
Installing Interconnect Modules
21
Installing the Server Blade into the Enclosure
22
Server Blade Power States
24
Powering on the Server Blade
24
Powering off the Server Blade
25
Installing the Blade Link for Bl860C I4, Bl870C I4 or Bl890C I4 Configurations
25
Using Ilo 3
29
Accessing UEFI or the os from Ilo 3 MP
29
UEFI Front Page
30
Saving UEFI Configuration Settings
33
Booting and Installing the Operating System
33
Operating System Is Loaded Onto the Server Blade
33
Operating System Is Not Loaded Onto the Server Blade
33
OS Login Prompt
33
Installing the Latest Firmware Using HP Smart Update Manager
34
Operating System Procedures
35
Operating Systems Supported on the Server Blade
35
Installing the Operating System Onto the Server Blade
35
Installing the os from an External USB DVD Device or Tape Device
35
Installing the os Using Ignite-UX
36
Installing the os Using Vmedia
37
Configuring System Boot Options
37
Booting and Shutting down HP-UX
37
Adding HP-UX to the Boot Options List
38
HP-UX Standard Boot
38
Booting HP-UX from the UEFI Boot Manager
39
Booting HP-UX from the UEFI Shell
39
Booting HP-UX in Single-User Mode
40
Booting HP-UX in LVM-Maintenance Mode
40
Shutting down HP-UX
40
Optional Components
41
Partner Blades
41
Hot-Plug SAS Disk Drives
41
Installing Internal Components
43
Removing the Access Panel
43
Processor and Heatsink Module
43
Dimms
48
Mezzanine Cards
54
HPE Smart Array P711M Controller
55
Installing the Supercap Mounting Bracket
56
Supercap Pack Mounting Kit
56
Installing the P711M Controller Board
57
Installing the Supercap Pack
58
Replacing the Access Panel
59
Upgrading a Conjoined Configuration
59
Procedure Summary
60
Upgrade Kit Contents
60
Before Getting Started
61
Determining Your Current Firmware Revisions
62
Rules for Server Blade Internal Components
66
Upgrading the Original Server
67
Booting the Operating System
74
Final Hardware Check
74
Blade Link and System Information Parameters
75
Support
75
Operating System Licenses
76
Possible Changes Due to VC Profile Mapping on the Upgraded Blade Server
77
The Quick Boot Option
77
Preserving VC-Assigned MAC Addresses in HP-UX by Enabling Portable Image
82
Troubleshooting
84
Methodology
84
General Troubleshooting Methodology
84
Executing Recommended Troubleshooting Methodology
86
Basic and Advanced Troubleshooting Tables
87
Troubleshooting Tools
92
Controls and Ports
92
Front Panel View
93
Rear Panel View
93
Server Blade Leds
94
Front Panel Leds
94
SAS Disk Drive Leds
95
Sas Hard Drive Led Combinations
96
Blade Link Leds
98
Virtual Front Panel Leds in the Ilo 3 TUI
98
SUV Cable and Ports
100
Connecting to the Serial Port
101
Diagnostics
102
General Diagnostic Tools
102
Fault Management Overview
102
HP-UX Fault Management
102
Errors and Error Logs
103
Event Log Definitions
103
Event Log Usage
103
Ilo 3 MP Event Logs
104
SEL Review
105
Troubleshooting Processors
106
Processor Installation Order
106
Processor Module Behaviors
106
Enclosure Information
106
Cooling Subsystem
106
Firmware
107
Identifying and Troubleshooting Firmware Issues
107
Verify and Install the Latest Firmware
107
Troubleshooting the Server Interface (System Console)
107
Troubleshooting the Environment
108
Removing and Replacing Components
109
Server Blade Components List
109
Preparing the Server Blade for Servicing
112
Powering off the Server Blade
113
Blade Link for Bl870C I4 or Bl890C I4 Configurations
113
Removing the Blade Link for Bl870C I4 or Bl890C I4 Configurations
113
Replacing the Blade Link for Bl870C I4 or Bl890C I4 Configurations
114
Blade Link for Bl860C I4 Configurations
115
Server Blade
116
Access Panel
117
Disk Drive Blanks
118
Removing a Disk Drive Blank
118
Disk Drives
118
DIMM Baffle
120
Dimms
121
CPU Baffle
122
CPU and Heatsink Module
123
SAS Backplane
126
Server Battery
126
Mezzanine Cards
127
ICH Mezzanine Board
128
System Board
129
Blade Link
130
Support and Other Resources
131
Accessing Hewlett Packard Enterprise Support
131
Accessing Updates
131
Websites
132
Customer Self Repair
132
Remote Support
132
Documentation Feedback
132
RAID Configuration and Other Utilities
133
Configuring a Smart Array Controller
133
Using the Saupdate Command
133
Get Mode
133
Set Mode
134
Updating the Firmware Using Saupdate
135
Determining the Driver ID and CTRL ID
135
Configuring RAID Volumes Using the ORCA Menu-Driven Interface
136
Creating a Logical Drive
138
Deleting a Logical Drive
139
Useful UEFI Command Checks
141
Uefi
141
UEFI Shell and POSSE Commands
142
Drive Paths in UEFI
145
Using the Boot Maintenance Manager
146
Boot Options
147
Add Boot Option
147
Delete Boot Option
148
Change Boot Order
149
Driver Options
150
Add Driver Option
151
Delete Driver Option
151
Change Driver Order
152
Console Configuration
152
Boot from File
153
Set Boot Next Value
154
Set Time out Value
155
Reset System
155
Ilo 3 MP
156
Warranty and Regulatory Information
157
Warranty Information
157
Regulatory Information
157
Belarus Kazakhstan Russia Marking
157
Turkey Rohs Material Content Declaration
158
Ukraine Rohs Material Content Declaration
158
Standard Terms, Abbreviations, and Acronyms
159
