WARNING:
The computer contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline
battery pack. A risk of fire and burns exists if the battery pack is not properly handled. To reduce the
risk of personal injury:
• Do not attempt to recharge the battery.
• Do not expose the battery to temperatures higher than 60°C (140°F).
• Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
• Replace only with the spare designated for this product.
Procedure
1. Power off the server and remove it from the enclosure (Preparing the server blade for servicing on
page 112).
2. Remove the access panel (Access panel on page 117).

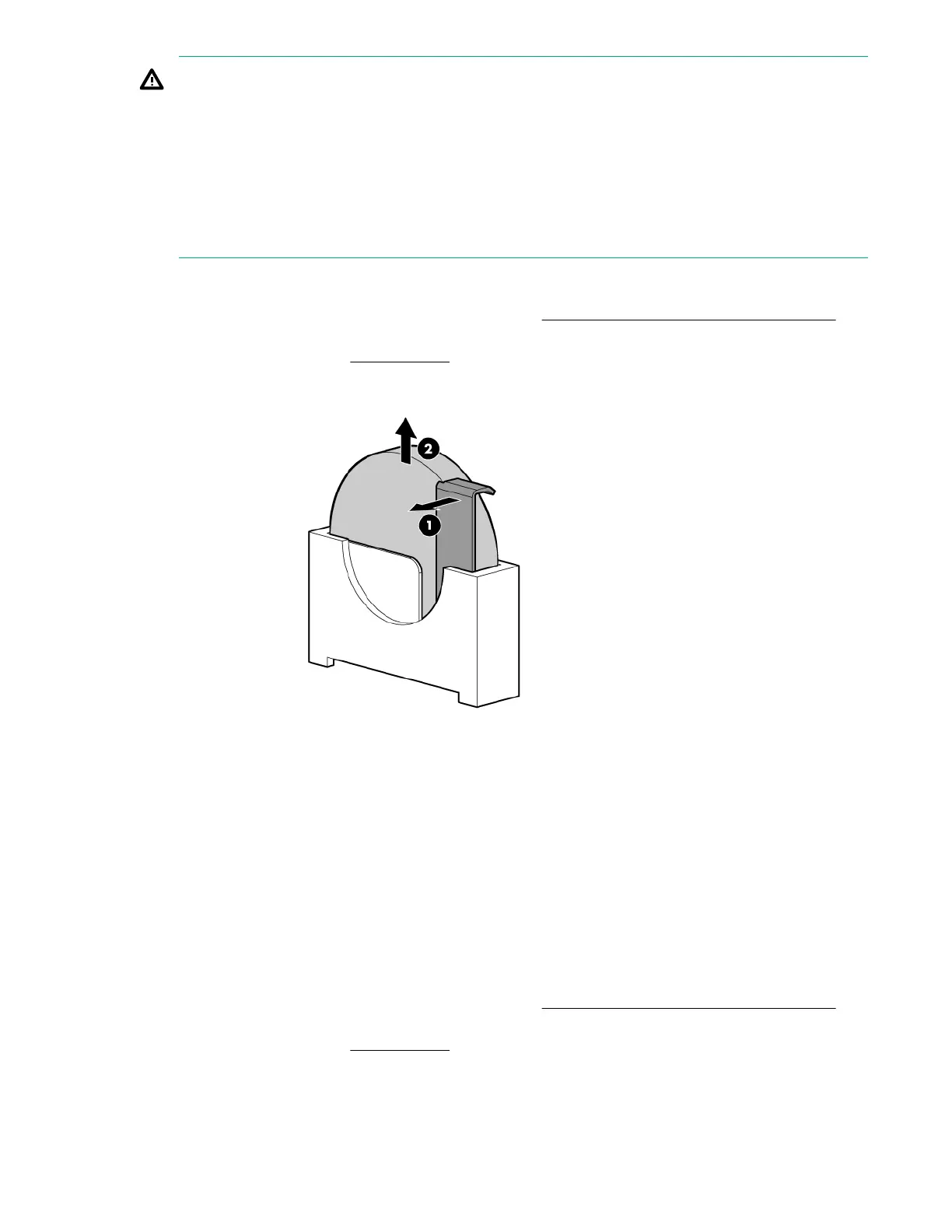

3. Remove the battery.
To replace the component, reverse the removal procedure.
Mezzanine cards
The I/O subsystem is composed of embedded core I/O and up to three mezzanine cards. The server
blade supports the following configurations:
• Up to three type I mezzanine cards using up to x8-PCIe Gen-2 links
• One type I and up to two type II mezzanine cards using up to x8-PCIe Gen-2 links
The server blade does not support PCI Hot Plug.
Procedure
1. Power off the server and remove it from the enclosure (Preparing the server blade for servicing on
page 112).
2. Remove the access panel (Access panel on page 117).
3. Remove the mezzanine card.
Mezzanine cards 127
