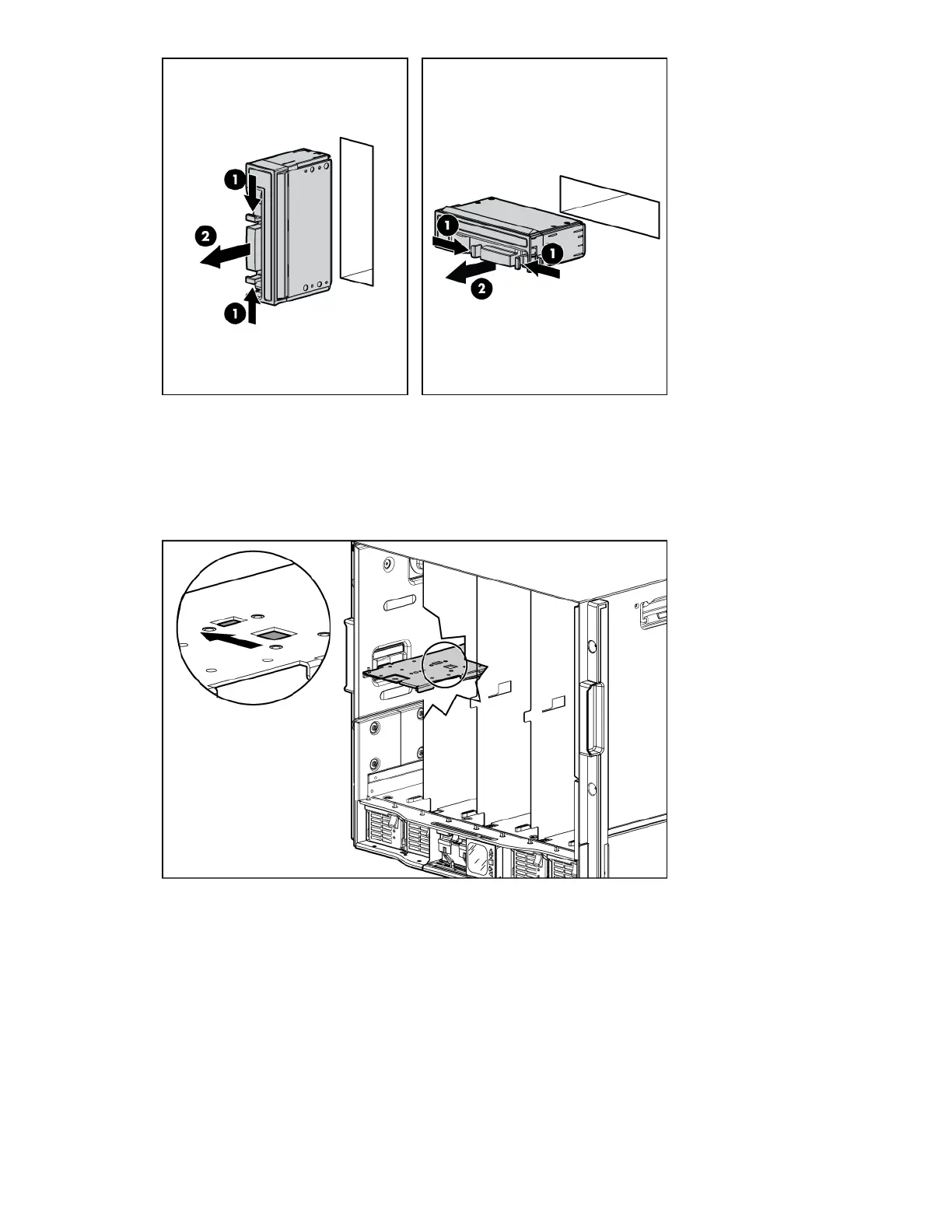

2. Remove the three adjacent blanks.
Removing a c7000 device bay divider
Procedure
1. Slide the device bay shelf locking tab to the left to open it.
2. Push the device bay shelf back until it stops, lift the right side slightly to disengage the two tabs from
the divider wall, and then rotate the right edge downward (clockwise).
18 Removing a c7000 device bay divider
