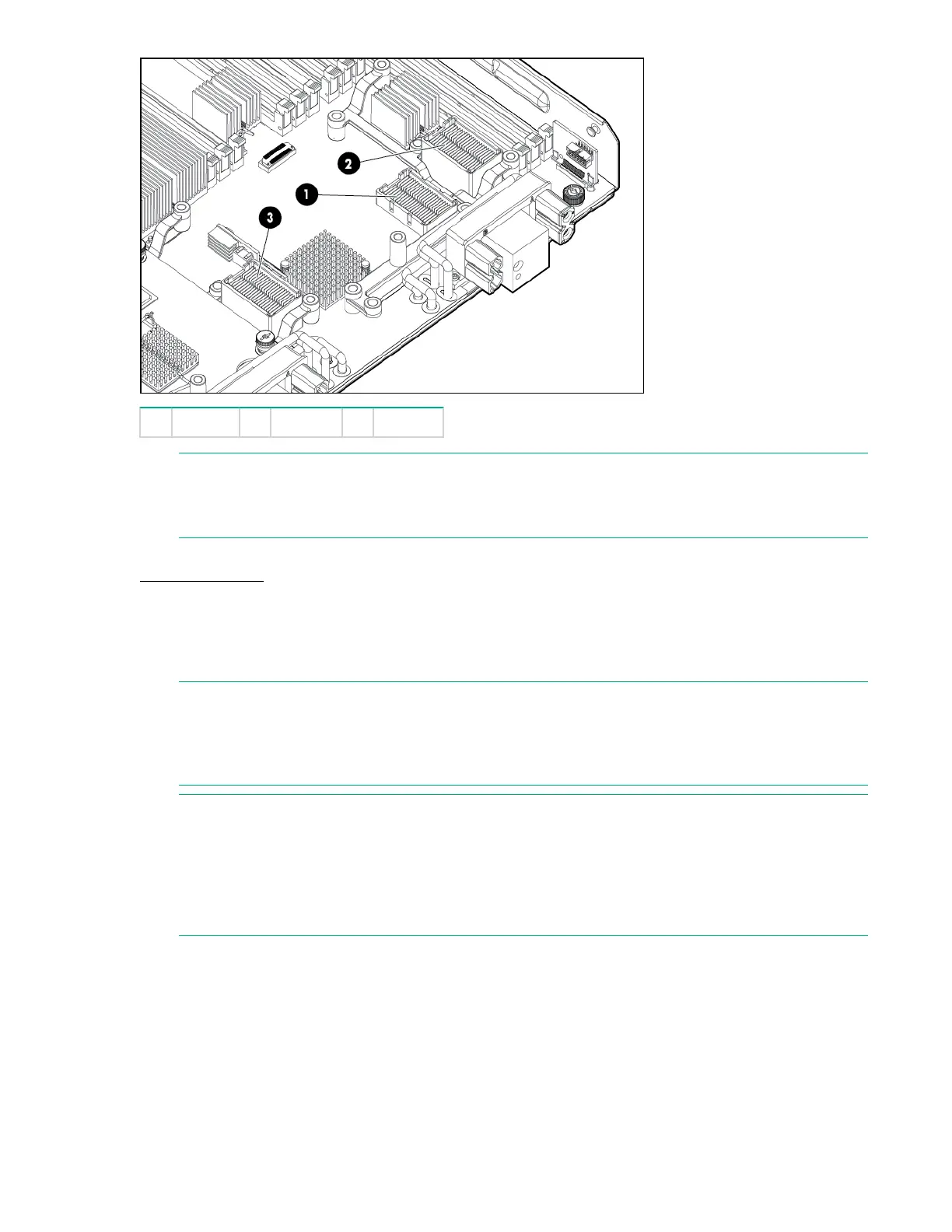

1 Slot 1 2 Slot 2 3 Slot 3
NOTE:
When a mixed configuration of BL860c i4, BL870c i4, and BL890c i4 server blades and other c-
Class server blades are in the same enclosure, the preferred location for the P711m cards is slot 3.
Use the procedure for installing standard mezzanine cards to install the SAS controller board, see
Mezzanine cards on page 54 for more information.
Installing the Supercap Pack
The Supercap Pack snaps onto the mounting bracket to secure the Supercap Pack inside the server
blade.
NOTE:
The mounting bracket is installed either on top of a mezzanine card in slot 1, or the mezzanine
blank in slot 1, depending upon the customer's configuration. If no card is used in slot 1, the
mezzanine card blank must be installed for the bracket to clip onto.
NOTE:
The Supercap Pack includes two plastic tabs that must be removed for proper fit in the BL860c i4,
BL870c i4, and BL890c i4 server blades. One tab is located on the rounded end of the Supercap
Pack, the other tab is directly above the cable as it exits the plastic housing of the Supercap Pack.
To remove these tabs, squeeze them firmly toward each other (significant force is required).
Optionally, these two tabs can be clipped off even with the rest of the Supercap Pack.
58 Installing the Supercap Pack
