Installing and configuring the Edge Switch 2/2456
2. Click New. The New Threshold Alert dialog box is displayed, as shown in Figure 26.

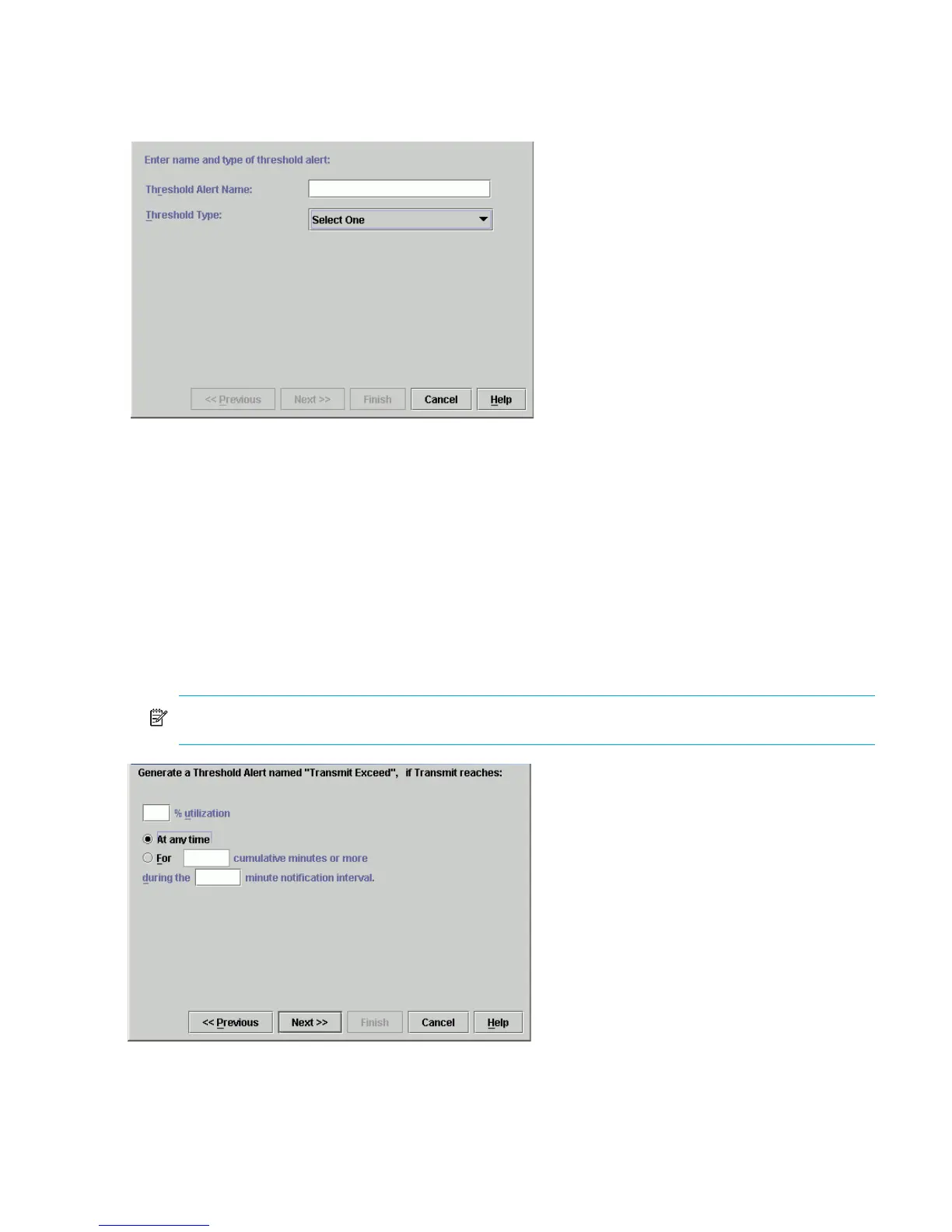

Figure 26 New Threshold Alerts dialog box
—first screen
3. Enter a name from one to 64 characters in length. All characters in the ISO Latin-1 character set,
excluding control characters, are allowed.
4. Select one of the following from the Threshold Type drop-down list:
• Transmit—An alert will occur if the threshold set for transmit throughput is reached.
• Receive—An alert will occur if the threshold set for receive throughput is reached
• Receive and Transmit—An alert will occur if the threshold set for either receive or transmit
throughput is reached.
5. Click Next. A new screen is displayed with additional parameters, as shown in Figure 27. The
name configured for the alert is displayed at the top of the screen.
NOTE: Click Previous if you need to return to the previous screen.
Figure 27 New Threshold Alerts dialog box—second screen
