Edge Switch 2/24 installation guide 71
Configure date and time
Perform this procedure to configure the effective date and time for the switch. To set the date and
time:
1. Select Configure > Switch > Date/Time. The Switch page is displayed with the Date/Time tab
selected (Figure 38).

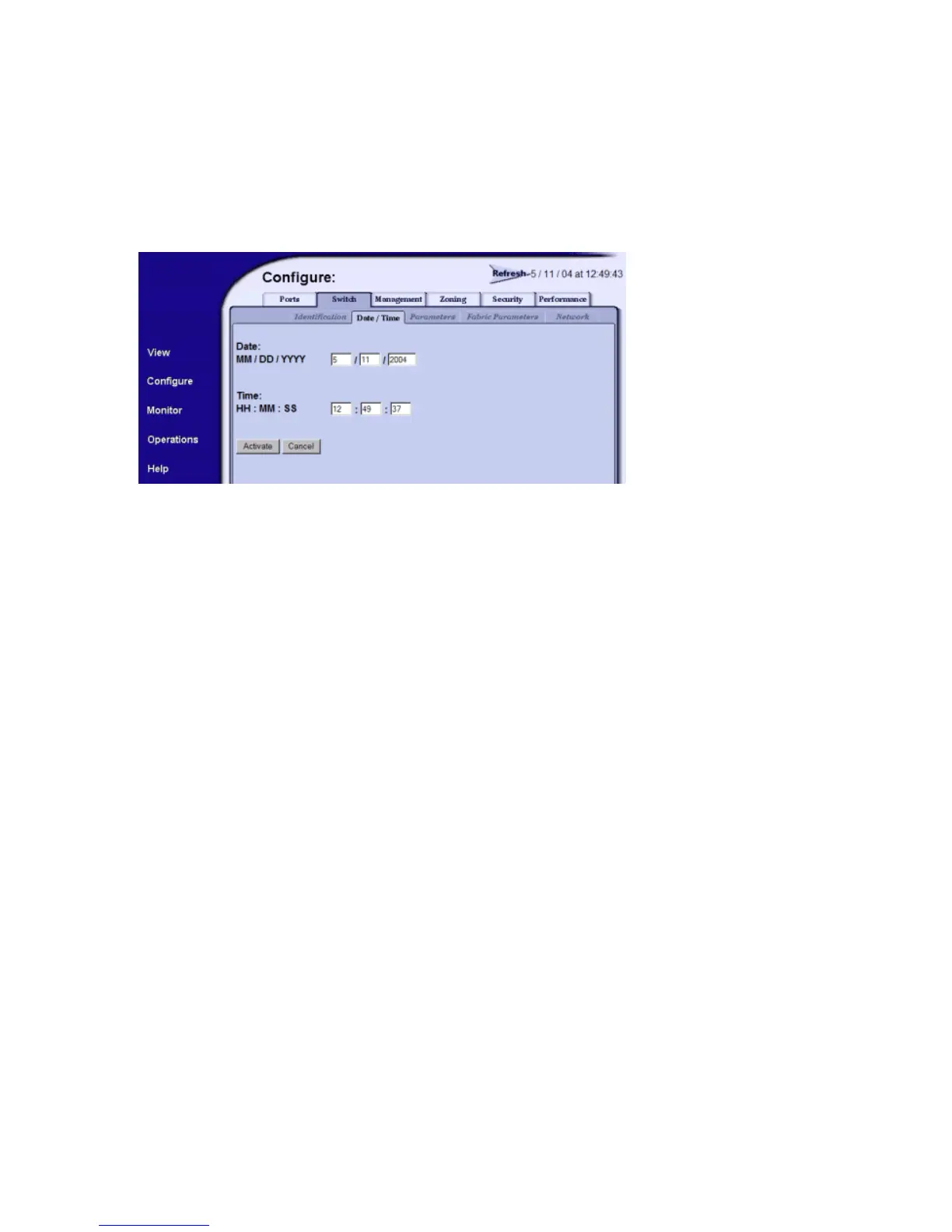

Figure 38 Switch page—Date/Time tab
a. Click the Date fields that require change, and enter numbers in the following ranges:
Month (MM): 1 through 12
Day (DD): 1 through 31
Year (YY): greater than 1980
b. Click the Time fields that require change, and enter numbers in the following ranges:
Hour (HH): 0 through 23
Minute (MM): 0 through 59
Second (SS): 0 through 59
2. Click Activate to save the information. The message Your changes to the Date/Time
configuration have been successfully activated is displayed.
Configure switch and fabric parameters
Perform this procedure to configure the following switch and fabric operating parameters:
Buffer-to-Buffer Credit (BB_Credit), Error Detect Time Out Value (E_D_TOV), and Resource Allocation
Time Out Value (R_A_TOV), preferred domain ID, and switch priority.
Configure switch parameters
The switch must be set offline to configure operating parameters. To configure the parameters:
1. Set the switch offline as follows:
a. Select Operations > Online State to display the Online State tab.
b. Click Set Offline. The message Your changes have been successfully
activated is displayed.
2. Click Configure at the left side of the panel. The Configure panel opens with the Ports page
displayed.
