HP V1910 Switch Series User Manual

319
EAP termination
Figure 287 shows the basic 802.1X authentication procedure in EAP termination mode, assuming that
CHAP authentication is used.

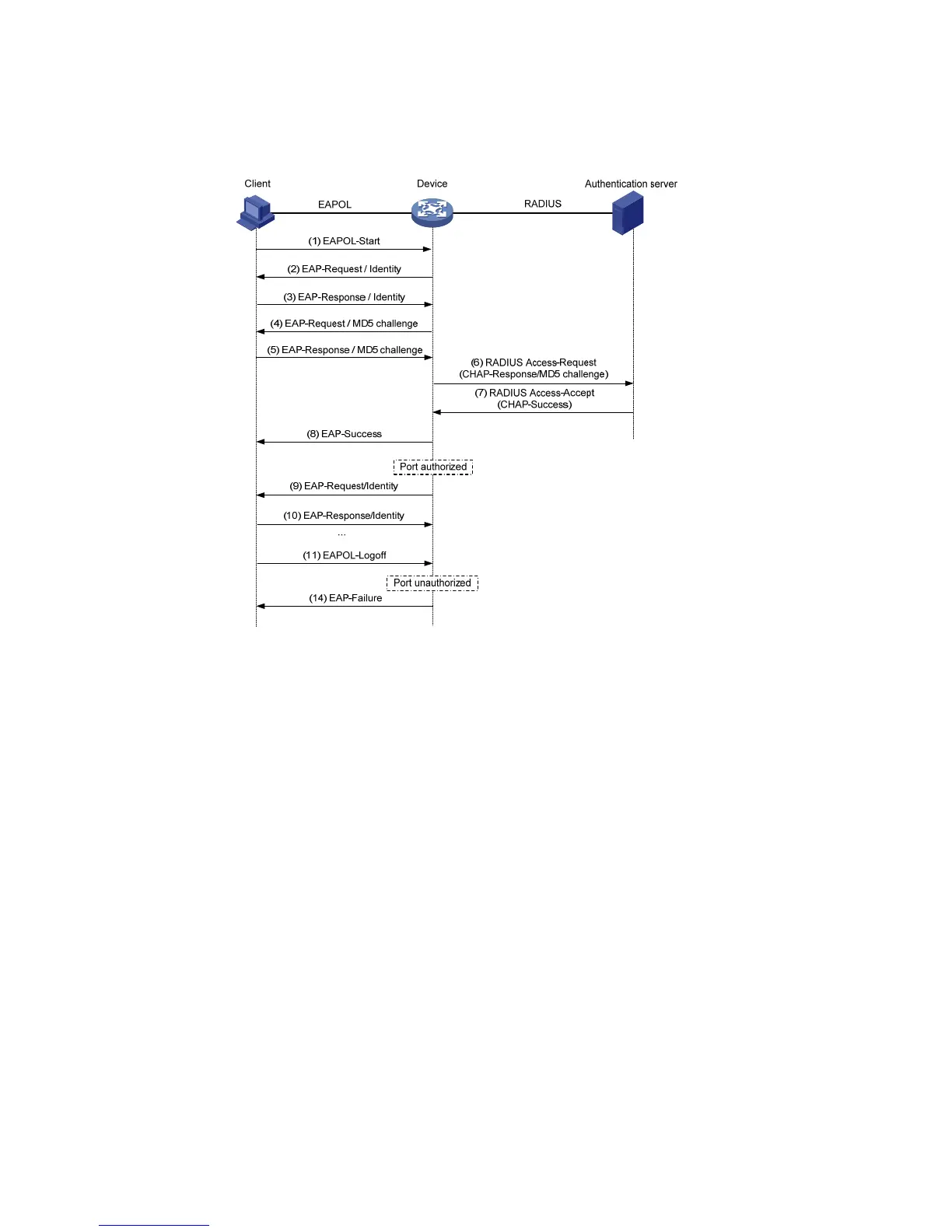

Figure 287 802.1X authentication procedure in EAP termination mode
In EAP termination mode, it is the network access device rather than the authentication server generates
an MD5 challenge for password encryption (see Step 4). The network access device then sends the MD5
challenge together with the username and encrypted password in a standard RADIUS packet to the
RADIUS server.
