453
Configuration procedure
# Enable PoE on GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2, and set their power supply priority
to critical.
ï‚· Select PoE > PoE from the navigation tree and click the Setup tab to perform the following
configurations, as shown in Figure 428.

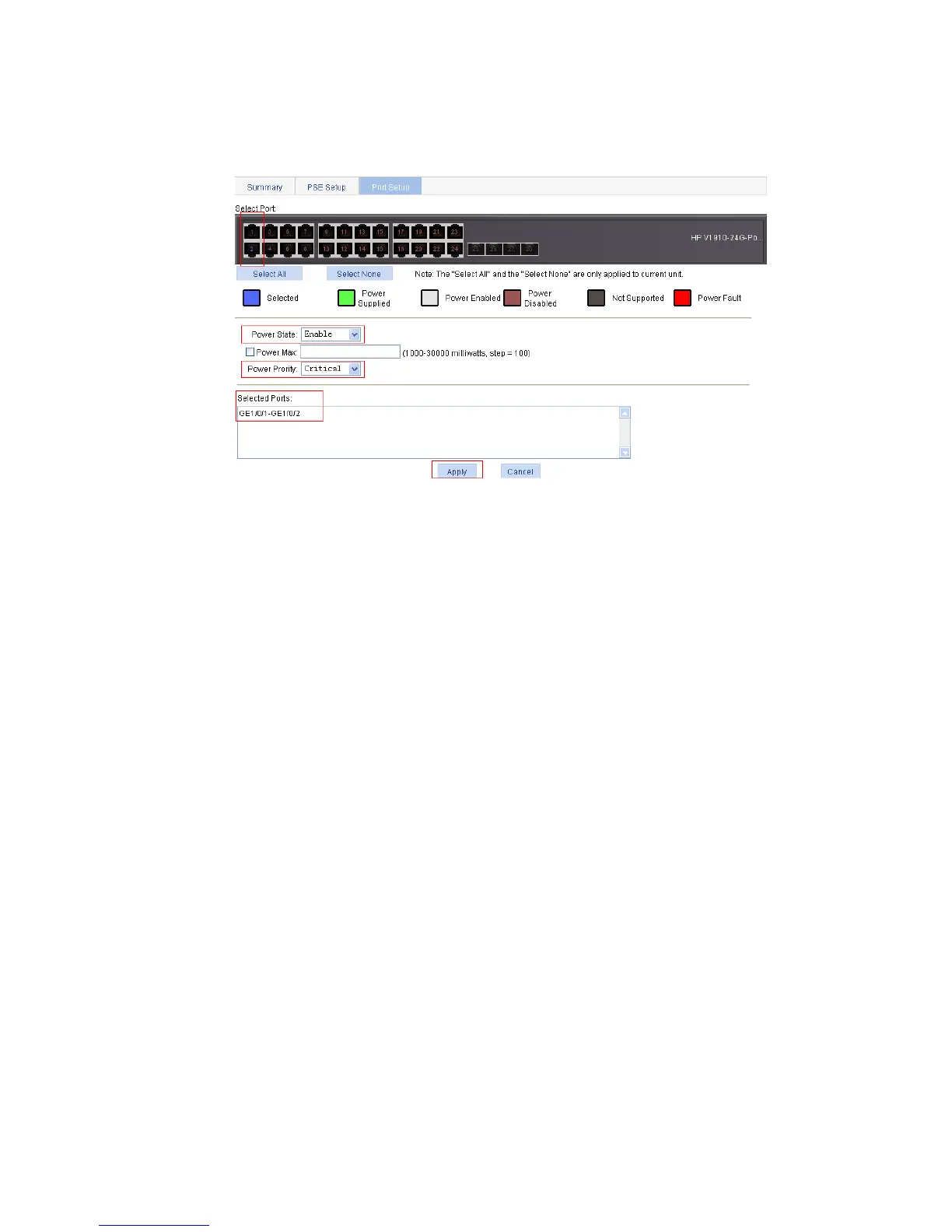

Figure 428 Configure the PoE ports supplying power to the IP telephones
ï‚· Click to select ports GigabitEthernet 1/0/1 and GigabitEthernet 1/0/2 from the chassis front
panel.
ï‚· Select Enable from the Power State drop-down list.
ï‚· Select Critical from the Power Priority drop-down list.
ï‚· Click Apply.
# Enable PoE on GigabitEthernet 1/0/11 and configure the maximum power of the port to 9000
milliwatts.
ï‚· Click the Setup tab and perform the following configurations, as shown in Figure 429.
