Step 5 Take a spare drive out of its ESD bag.
Step 6 Fully open the ejector lever and push the drive into the chassis along the guide rails as far as it
will go. See (1) in Figure 5-8.

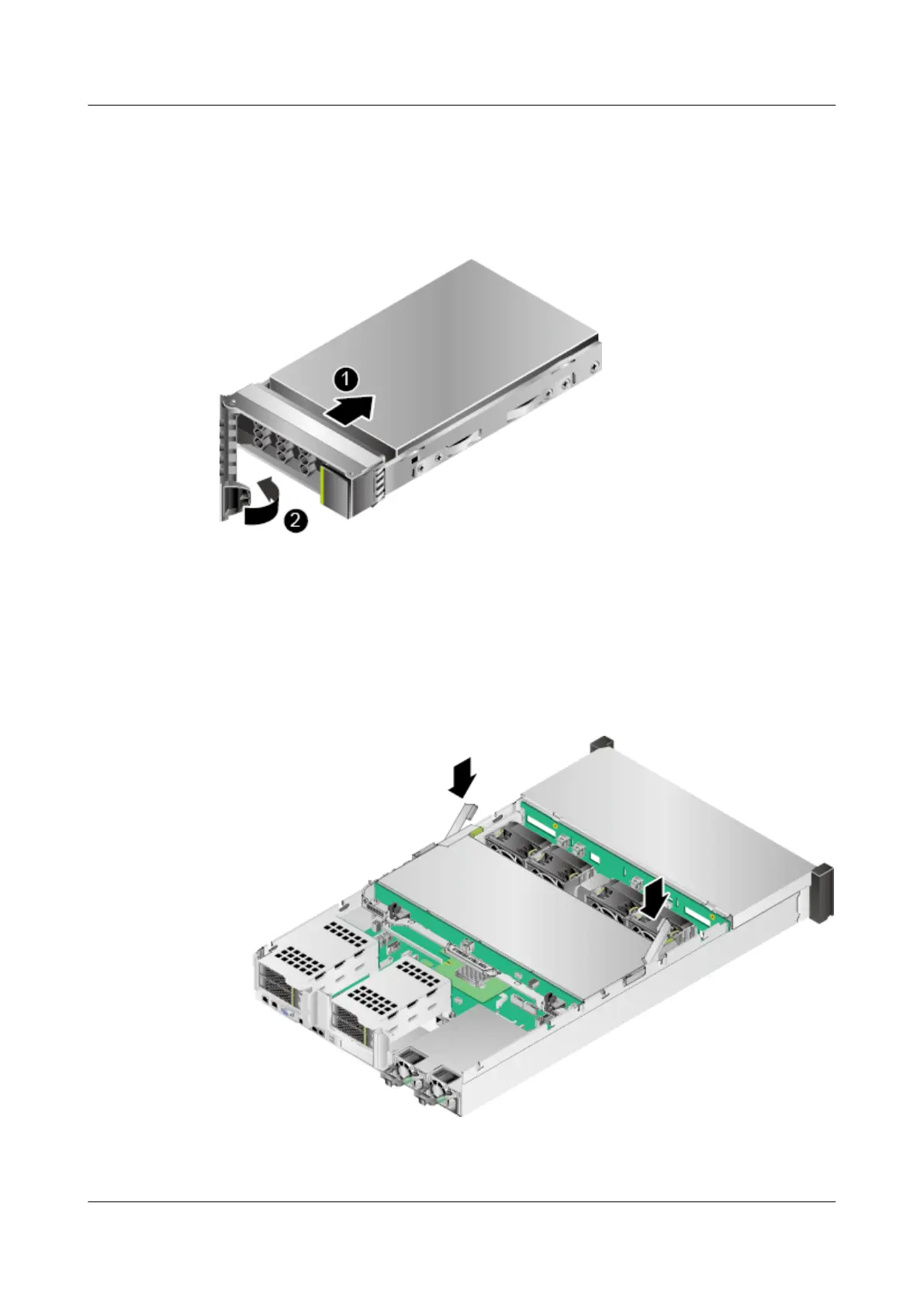

Figure 5-8 Installing a drive
Step 7 Ensure that the ejector lever is fastened to the chassis beam, and then close it to completely
insert the drive into the chassis. See (2) in Figure 5-8.
Step 8 If the drive is to be installed in the built-in drive module, perform the following operations:
1. Close the handles of the built-in drive module. See Figure 5-9.
Figure 5-9 Closing the handles of the built-in drive module
2. Install the chassis cover. For details, see 3.5 Installing the Chassis Cover.
2288H V5 Server
User Guide
5 Optional Part Installation
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 119

Huawei 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
