Huawei 2288H V5 User Manual

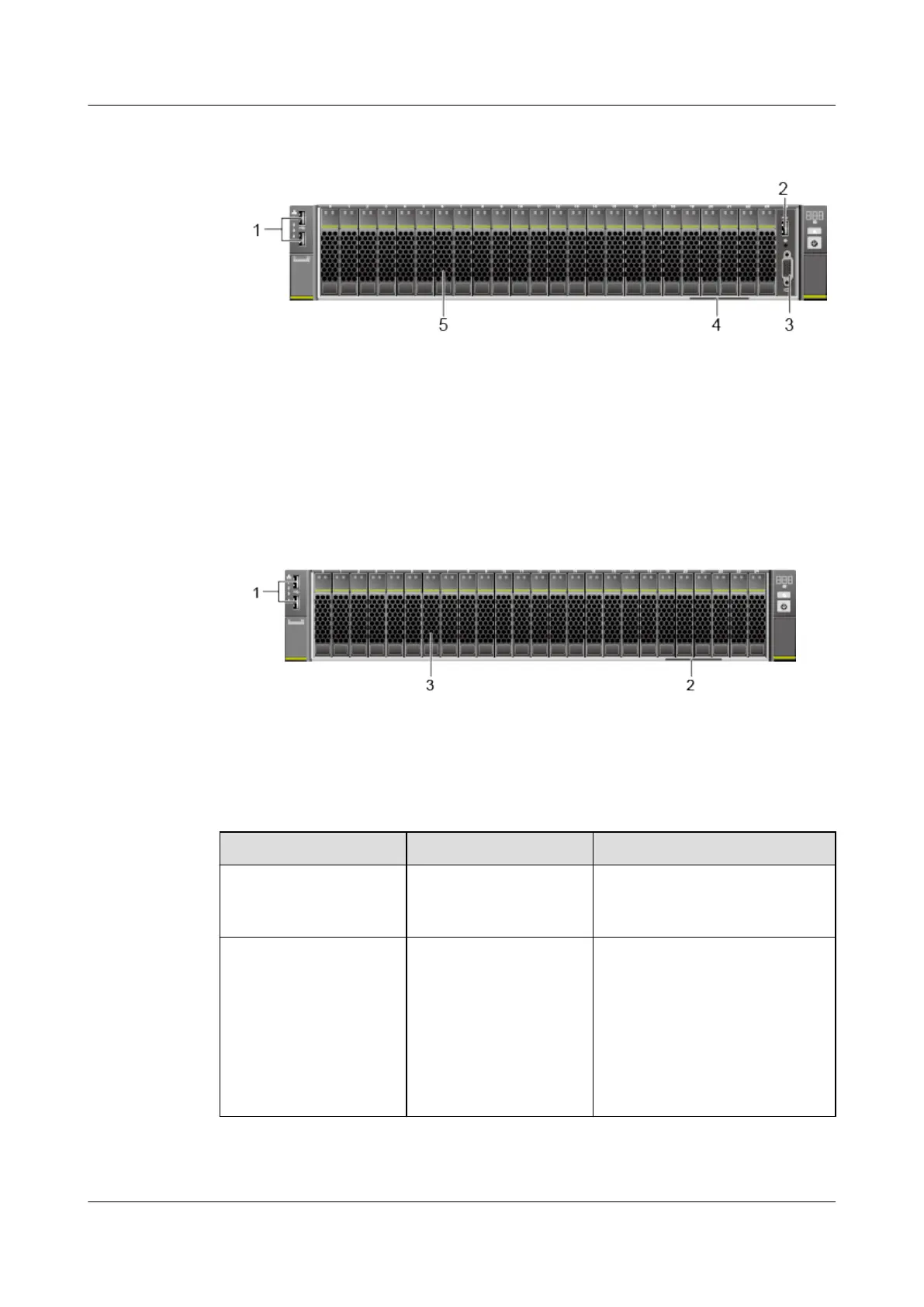

Figure 2-4 Components on the front panel of a server with twenty-four 2.5-inch front
drives
1 USB 2.0 ports 2 USB 3.0 port
3 VGA port 4 Label plate with an SN label
5 Drive - -
l Figure 2-5 shows the components on the front panel of a server with twenty-five 2.5-
inch front drives.
Figure 2-5 Components on the front panel of a server with twenty-five 2.5-inch front
drives
1 USB 2.0 ports 2 Label plate with an SN label
3 Drive - -
Table 2-1 Ports on the front panel
Port
Type Description
VGA port DB15 The VGA port is connected to a
terminal, such as a monitor or
KVM.
USB port USB 2.0/USB 3.0 The USB ports allow USB
devices to be connected to the
server.
NOTE
Before connecting an external USB
device, check that the USB device
functions properly. A server may
operate abnormally if an abnormal
USB device is connected.
2288H V5 Server
User Guide
2 Components
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 4

Huawei 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
