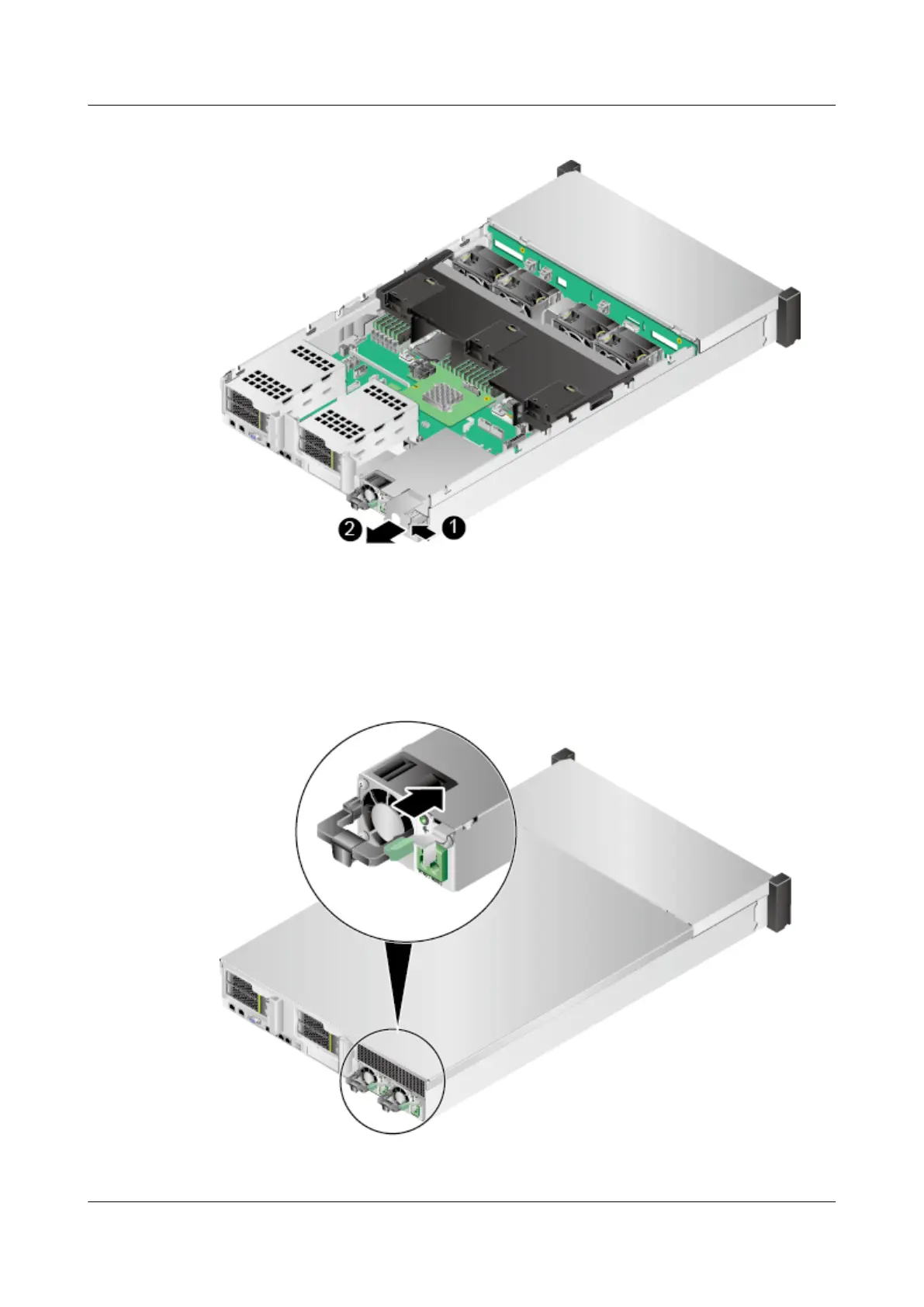

Figure 5-21 Removing the PSU filler panel

Step 3 Take a spare PSU out of its ESD bag.

Step 4 Push the spare PSU along the guide rails into a slot until the PSU clicks into place. See

Figure 5-22.

Figure 5-22 Installing a PSU

Step 5 Connect cables to a DC PSU.

2288H V5 Server

User Guide

5 Optional Part Installation

Questions and Answers:

Need help?

Do you have a question about the Huawei 2288H V5 and is the answer not in the manual?

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
