Huawei 2288H V5 User Manual

Step 1 Wear an ESD wrist strap. For details, see 12 Preventing Electrostatic Discharge.
Step 2 Power off the server. For details, see 3.2 Powering Off the Server.
Step 3 Remove the power cables. For details, see 3.7 Removing Cables from a PSU.
Step 4 Remove the server. For details, see 3.3 Removing the Server and Guide Rails.
Step 5 Remove the chassis cover. For details, see 3.4 Removing the Chassis Cover.
Step 6 Take a spare USB flash drive out of its ESD bag.

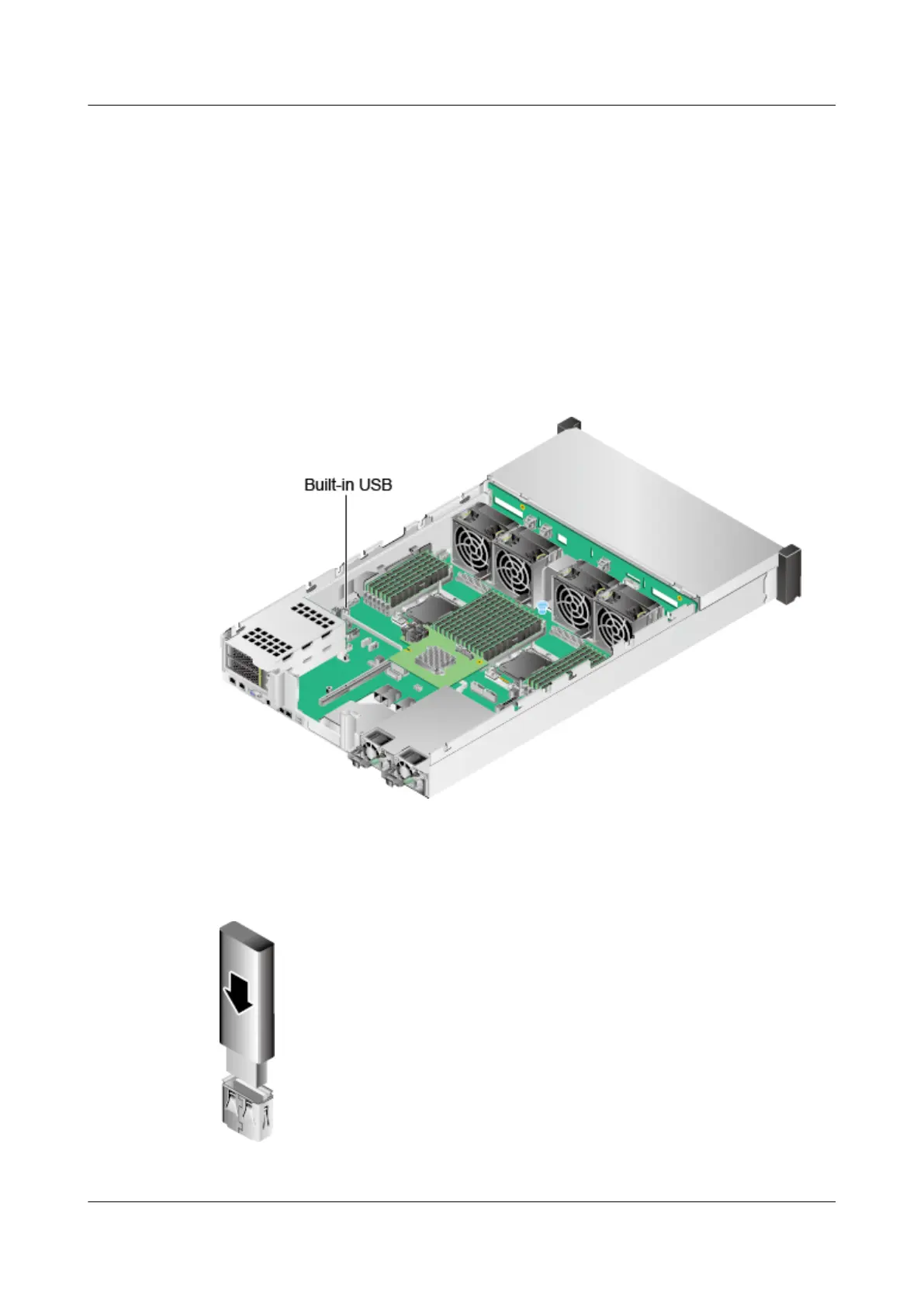

Step 7 Determine the position of the USB port on the mainboard. See Figure 5-31.
Figure 5-31 USB port position
Step 8
Insert the USB flash drive into the USB port. See Figure 5-32.
Figure 5-32 Installing the USB flash drive
2288H V5 Server
User Guide
5 Optional Part Installation
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 139

Huawei 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware

Summary

About This Document

Purpose

Describes the server's appearance, functions, structure, and parameters for installation and troubleshooting.

Intended Audience

Identifies target readers including technical support engineers and enterprise administrators.

Symbol Conventions

Explains the meaning of symbols used in the document for hazard and note indications.

1 Overview

2 Components

2.1 Front Panel Components

Details components on the front panel of servers with different drive configurations.

2.3 Rear Panel Components

Illustrates and lists components located on the rear panel of the server.

2.9 Drive Slot Numbers and Indicators

Identifies drive slot numbering and indicators for different server configurations.

3 Basic Operations

3.1 Powering On the Server

Provides methods for powering on the server using front panel, iBMC WebUI, or iBMC CLI.

3.2 Powering Off the Server

Details procedures for powering off the server to standby or forcibly.

3.7 Removing Cables from a PSU

Guides on removing power cables from AC and DC PSUs for replacement.

4 Setup

4.1 Environmental Requirements

Specifies space, airflow, temperature, and humidity requirements for server installation.

4.4 Installing the Server on Guide Rails

Provides instructions for installing the server onto L-shaped, adjustable, and holding guide rails.

4.6 Initial Configuration

Details the process of initial server configuration, including IP settings and password changes.

5 Optional Part Installation

5.3 Drive

Provides procedures for removing and installing SAS/SATA and NVMe SSD drives.

5.12 CPU

Details the steps for installing a CPU, including thermal paste application.

5.13 DIMM

Explains DIMM compatibility, subsystem architecture, ranks, and installation rules.

7 Internal Cabling

7.1 Internal Cabling for a Server with 8 x 2.5-inch Drives

Illustrates internal cabling for DVD drive, USB, VGA, mounting ears, drive backplanes, and SAS signals.

7.7 Internal Cabling for a Server with 8 x 2.5-inch SAS/SATA + 12 x 2.5-inch NVMe drives

Details internal cabling for mounting ears, drive backplanes, and SAS signals for specific drive configurations.

8 Software and Configuration Utilities

8.1 BIOS

Explains the basic software loaded to hardware, its functions, and development basis.

8.2 iBMC

Describes Huawei's intelligent management system for remote server management.

14 Common Operations

14.1 Querying the Management Network Port IP Address

Details how to query the iBMC management network port IP address via BIOS or iBMC CLI.

14.2 Logging In to the Remote Virtual Console

Guides on accessing the Remote Console via iBMC WebUI for server management.

14.3 Logging In to the iBMC CLI

Explains how to log in to the iBMC Command Line Interface (CLI) over SSH or serial port.

15 Support and Other Resources

15.1 Technical Support

Provides information on accessing technical support websites, platforms, and communities.

15.3 Maintenance Tools

Lists software tools for routine maintenance, including uMate, InfoCollect, and ServiceCD.

A Appendix

A.1 Logical Structure

Presents a logical structure diagram of the 2288H V5 server's hardware components.

A.4 Acronyms and Abbreviations

Provides a comprehensive list of acronyms and abbreviations used throughout the document.
