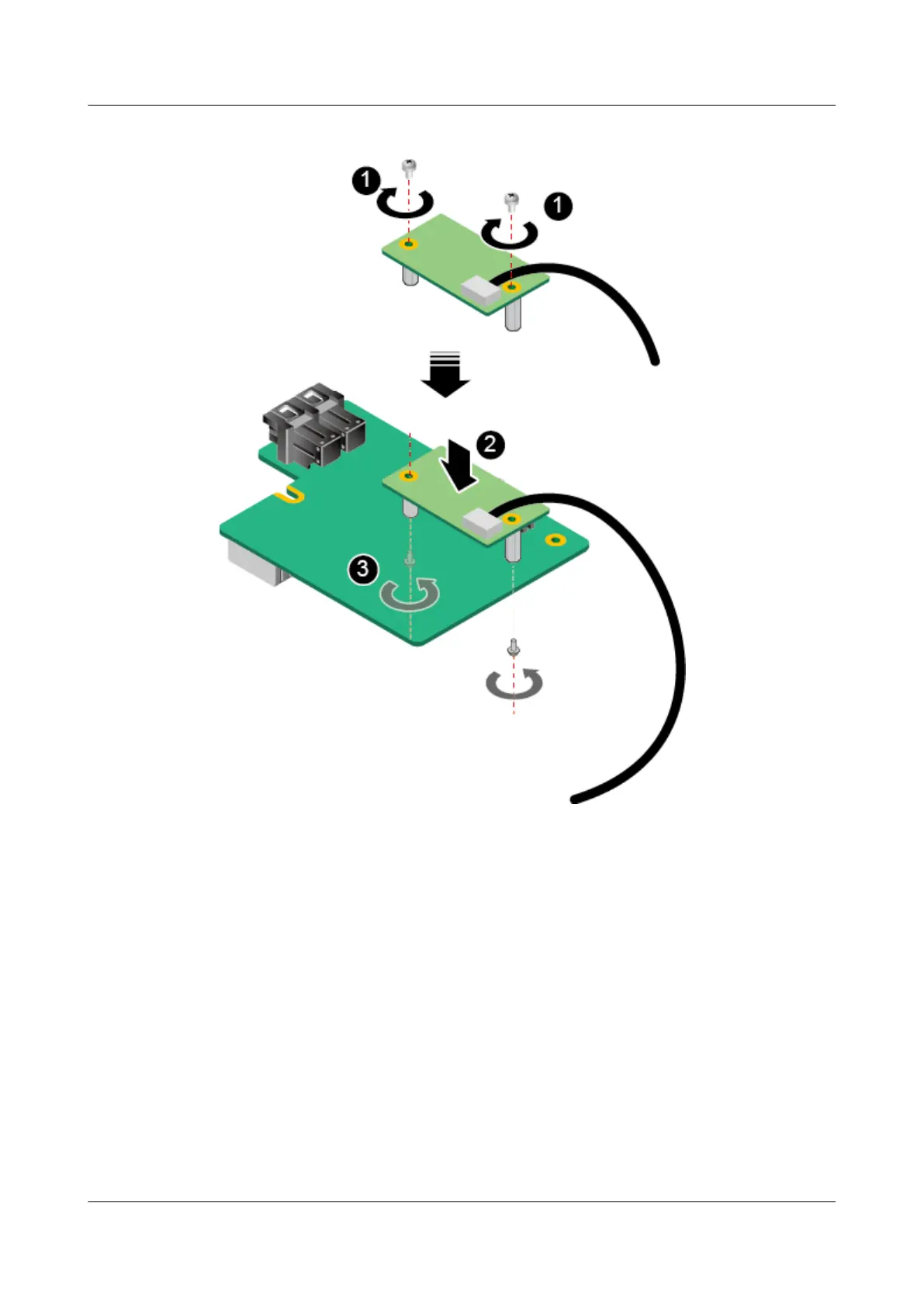

Figure 5-39 Installing a TFM

Step 14 Tighten the screws on the TFM. See (3) in Figure 5-39.

Step 15 Install the RAID controller card. For details, see 5.8 Screw-in RAID Controller Card.

Step 16 Install the riser card tray above the RAID controller card. For details, see 3.13 Installing a

Riser Card Tray.

Step 17 Install the chassis cover. For details, see 3.5 Installing the Chassis Cover.

Step 18 Install the server. For details, see 4.4 Installing the Server on Guide Rails.

Step 19 Connect the power cables. For details, see 5.4 PSU.

Step 20 Power on the server. For details, see 3.1 Powering On the Server.

Step 21 Log in to the iBMC WebUI, and check whether the new component is normal. For details, see

the Huawei Rack Server iBMC User Guide.

----End

2288H V5 Server

User Guide

5 Optional Part Installation
