Huawei 2288H V5 User Manual

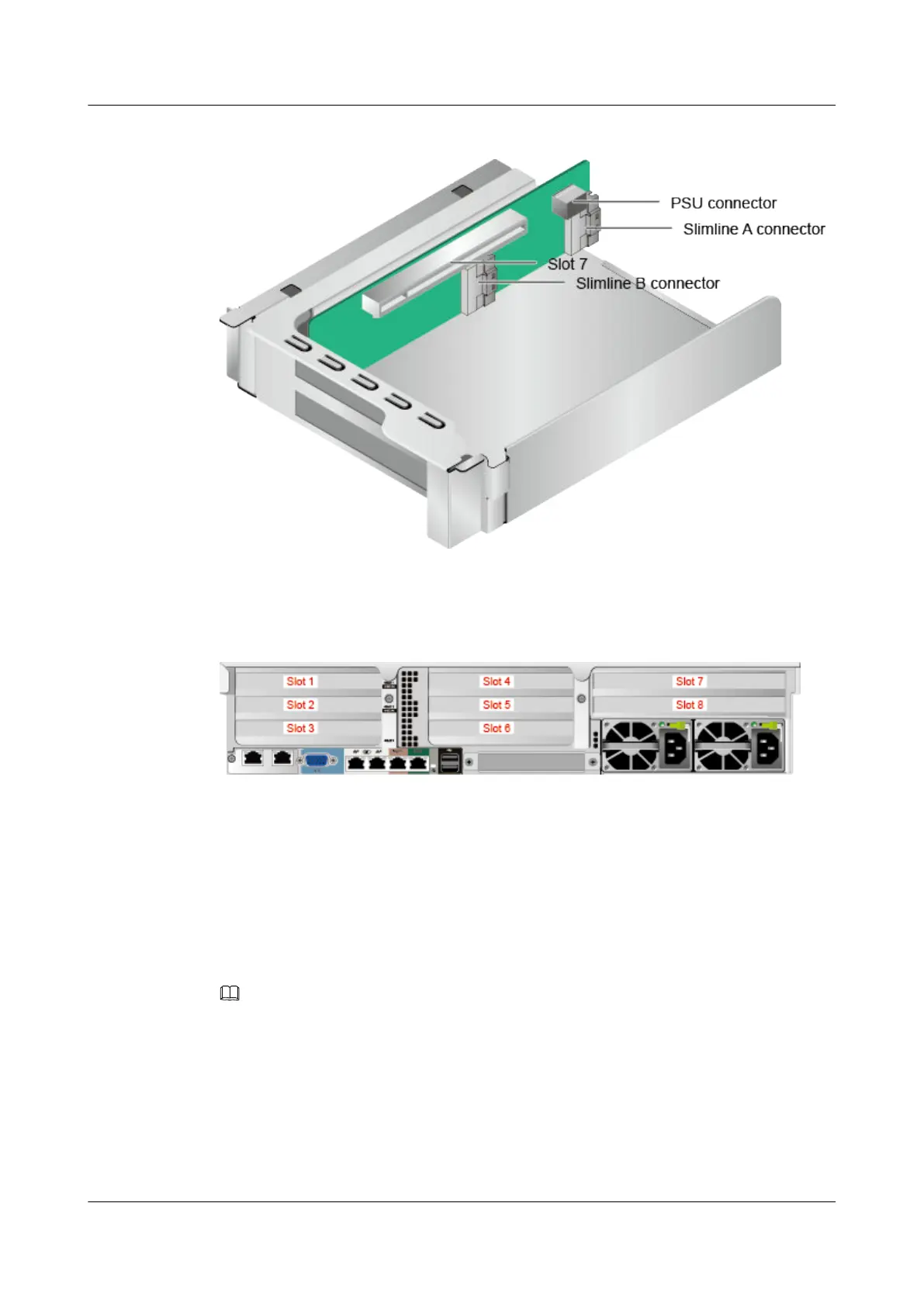

Figure 2-50 Riser card 6
Figure 2-51 shows the PCIe slots on the rear panel of the 2288H V5.
Figure 2-51 PCIe slots
I/O module 1 provides slots 1 to 3, I/O module 2 provides slots 4 to 6, and I/O module 3
provides slots 7 and 8.
l If I/O module 1 uses a 2-slot PCIe riser module (PRM), slot 2 is unavailable.
l If I/O module 2 uses a 2-slot PRM, slot 5 is unavailable.
l If I/O module 3 uses a 1-slot PRM, slot 8 is unavailable.
Table 2-11 describes the PCIe slots.
NOTE
If CPU 2 is not installed, the PCIe slots provided by I/O modules 2 and 3 and the flexible NIC are
unavailable.
2288H V5 Server
User Guide
2 Components
Issue 04 (2018-09-04) Copyright © Huawei Technologies Co., Ltd. 35

Huawei 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	24 DDR4 DIMM slots
Storage	Supports 25 x 2.5-inch drives
RAID Support	RAID levels 0, 1, 5, 6, 10, 50, 60
Network	2 x GE ports
Expansion Slots	Multiple PCIe slots
Power Supply	800W/1200W
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
