Hypertherm HyPerformance Plasma HPR800XD User Manual

Parts List

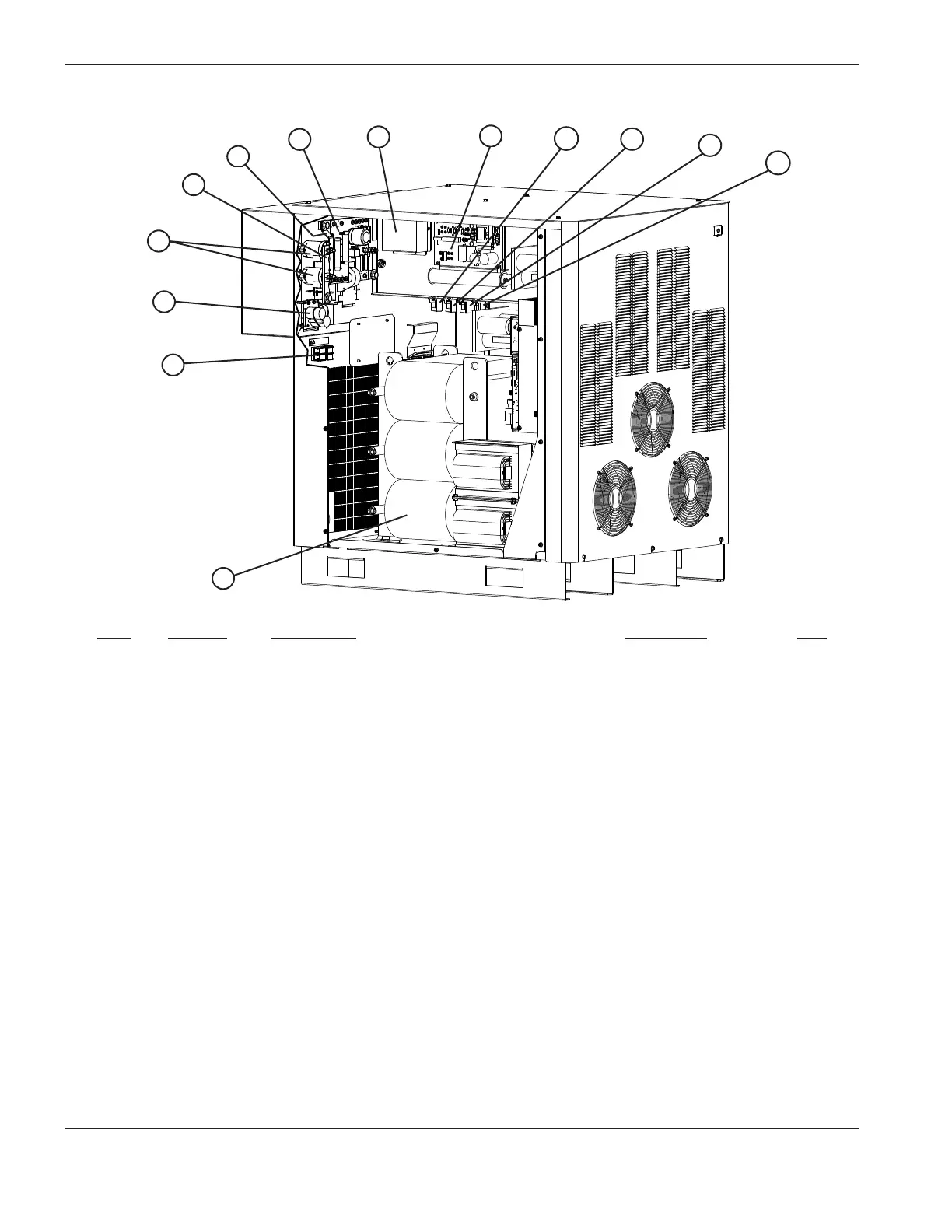

6-4 HPR800XD Auto Gas – 806500
Power supply
Part
Item Number Description Designator Qty.
1 108847* Fuse: 7.5 amp, 600 volt, high surge F1, F2 2
008709** Fuse: 20 amp, 500 volt, slow blow F1, F2 2
2 229340 Snubber assembly 1
3 229360 Contactor: 500 amp DC 120 VAC COIL Con2, Con3 2
4 104496 Bus bar 1
5 104495 Bus bar 1
6 229213 PCB: I/O 1
7 003149*** Relay: Pilot arc, 120 VAC CR1 1
8 229238 Start circuit assembly PCB1 1
9a 109004 Current sensor: Hall 100 amp, 4 volt CS1 1
9b 109004 Current sensor: Hall 100 amp, 4 volt CS2 1
9c 109004 Current sensor: Hall 100 amp, 4 volt CS3 1
9d 109004 Current sensor: Hall 100 amp, 4 volt CS4 1
10 014321 200 volt main transformer: 80KW, 3 ph, 50 HZ T2 1
014322 220 volt main transformer: 80KW, 3 ph, 50 HZ 1
014323 240 volt main transformer: 80KW, 3 ph, 60 HZ 1
014324 380 volt main transformer: 80KW, 3 ph, 50 HZ 1
014325 400 volt main transformer: 80KW, 3 ph, 50 HZ 1
014326 440 volt main transformer: 80KW, 3 ph, 50 HZ 1
014327 480 volt main transformer: 80KW, 3 ph, 60 HZ 1
014328 600 volt main transformer: 80KW, 3 ph, 60 HZ 1
228309 Kit: Thermistor replacement for main transformer 1
* 380, 400, 440, 480, and 600 volt power supplies
** 200, 220, and 240 volt power supplies
*** CR1 is located under the cover
4
1
7
2
3
5
6
8
9a
10
9b
9c
9d
