InstallatIon
3-18 HPR800XD Auto Gas – 806500

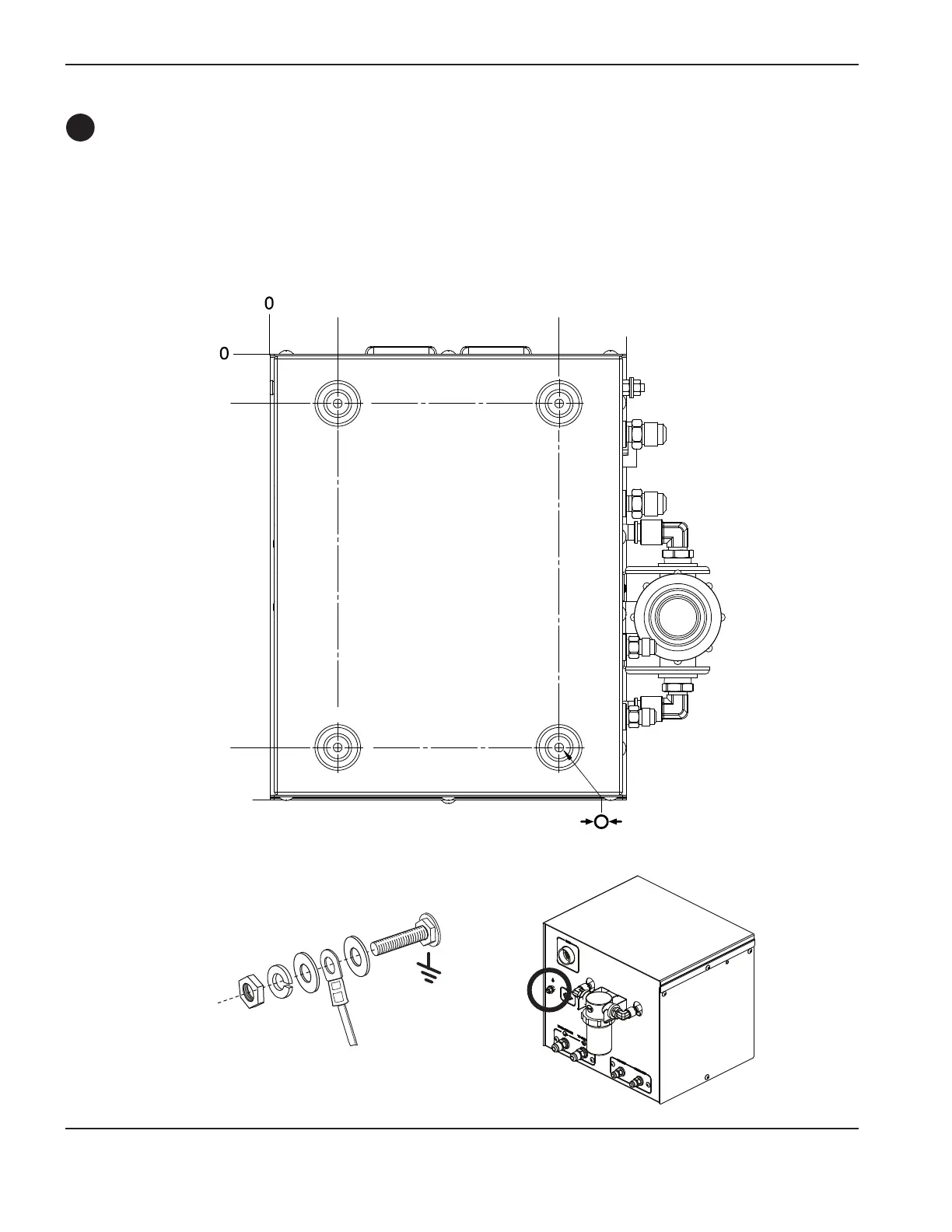

Install the chiller interface console
• Mount the chiller interface console in a horizontal position.
• Allow room to remove the top for servicing.
• If the chiller interface console is placed on top of power supply, do not drill holes though the power supply cover
to bolt it in place.
E
Ignition console grounding
7 mm
0.28 in
(4 places)
38 mm
1.5 in
50.8 mm
2.0 in
314.5 mm
12.38 in
228.6 mm
9.0 in
279.4 mm
11.0 in
355.6 mm
13.88 in
