Hypertherm HyPerformance Plasma HPR800XD User Manual

InstallatIon
3-22 HPR800XD Auto Gas – 806500

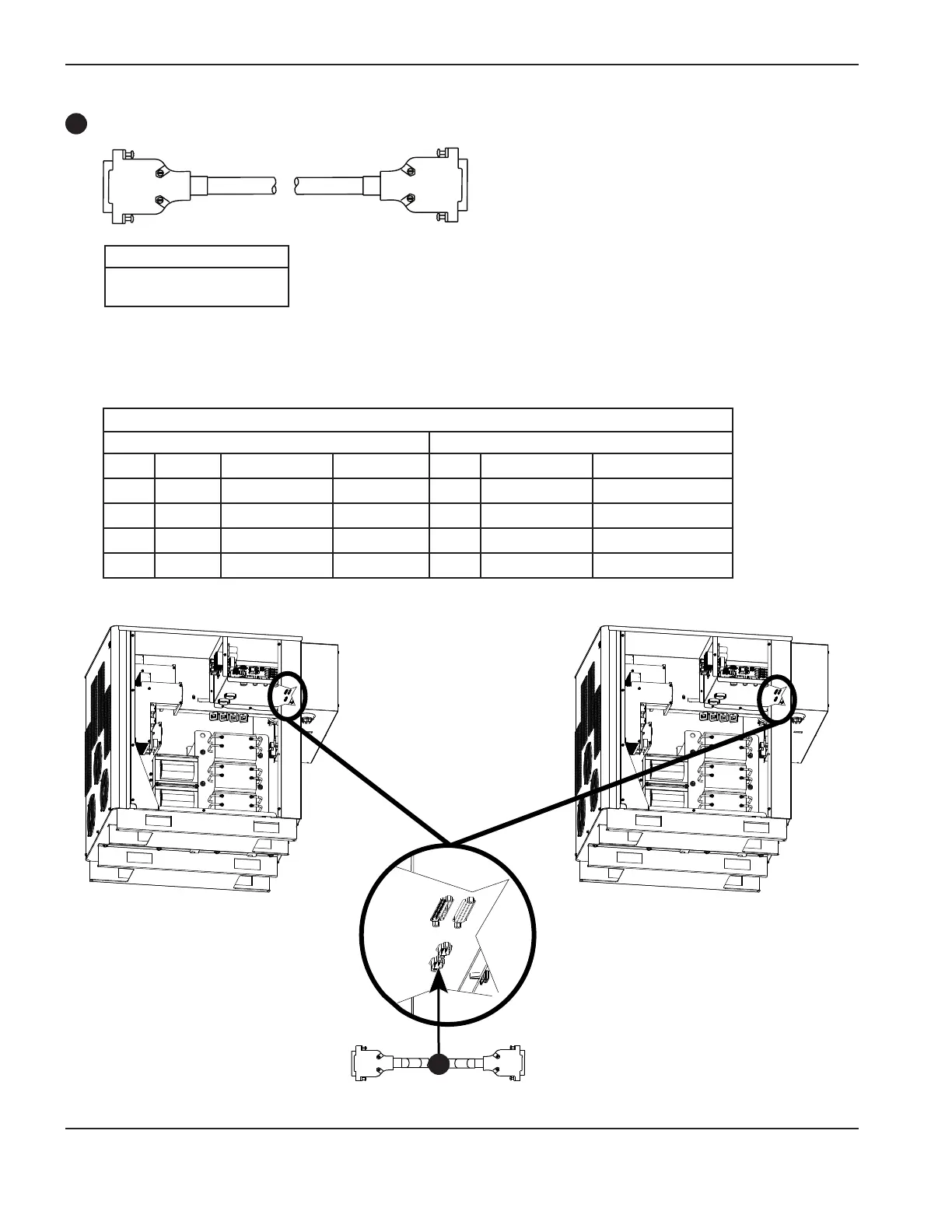

Communication cable
2
Cable signal list – power supply to power supply (9-pin DSUB connectors)
Primary power supply end Secondary power supply end
Pin No. Wire color Input/Output Description Pin No. Input/Output Function
2 Black Input/Output CAN L 2 Input/Output CAN communication
3 Black Input CAN ground 3 Output Power ground
7 Red Input/Output CAN H 7 Input/Output CAN communication
9 Red Input Not used 9 Output Not used
2
Part no. Length
123839 4.5 m (15 ft)
123691 7.5 m (25 ft)
