Parts List
HPR800XD Auto Gas – 806500 6-13

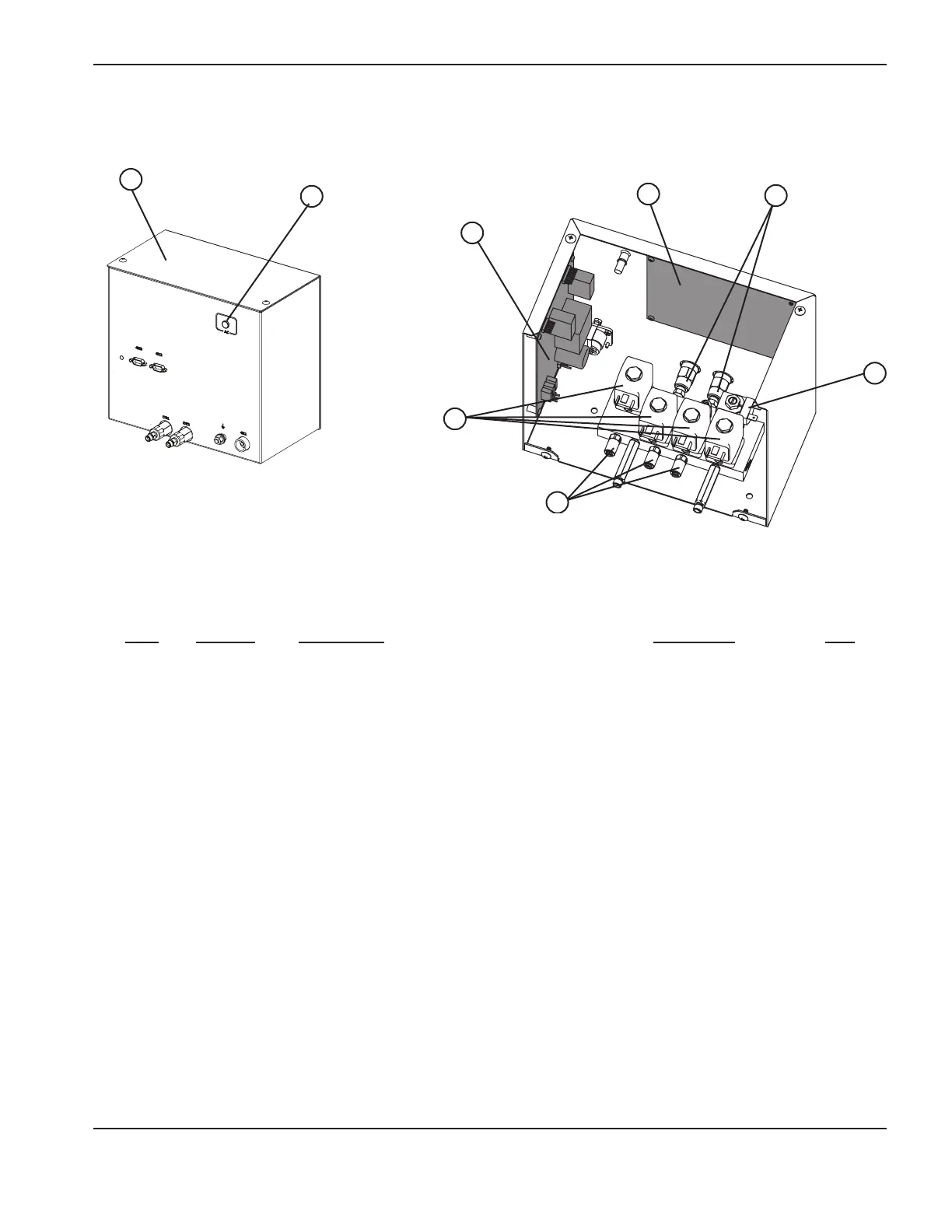

Metering console
4
6
3
Part
Item Number Description Designator Qty.
1 078535 Metering console 1
2 129633 Green power lamp 1
3 041897 Power distribution PCB PCB1 1
008756 Fuse: 5 amp, 250 volt (slow-blow) F1 1
4 228069 Kit: Control PCB PCB2 1
5 006077 Check valves 2
6 006109 Solenoid valve SV16 1
006112 Replacement solenoid coil
7 005263 Pressure transducer (3 of 4 shown) P5-P8 4
123802 Pressure transducer wire harness 1
8 006128* Proportional valve B1-B4 4
228023** Kit: HPR gas metering manifold upgrade 1
229032 Metering console wire harness 1
* Gas consoles with a serial number of 500134 or later take this part number
** Gas consoles with a serial number of 500133 or earlier must order this kit
To Next Page
