SpecificationS
2-12 HPR800XD Auto Gas – 806500

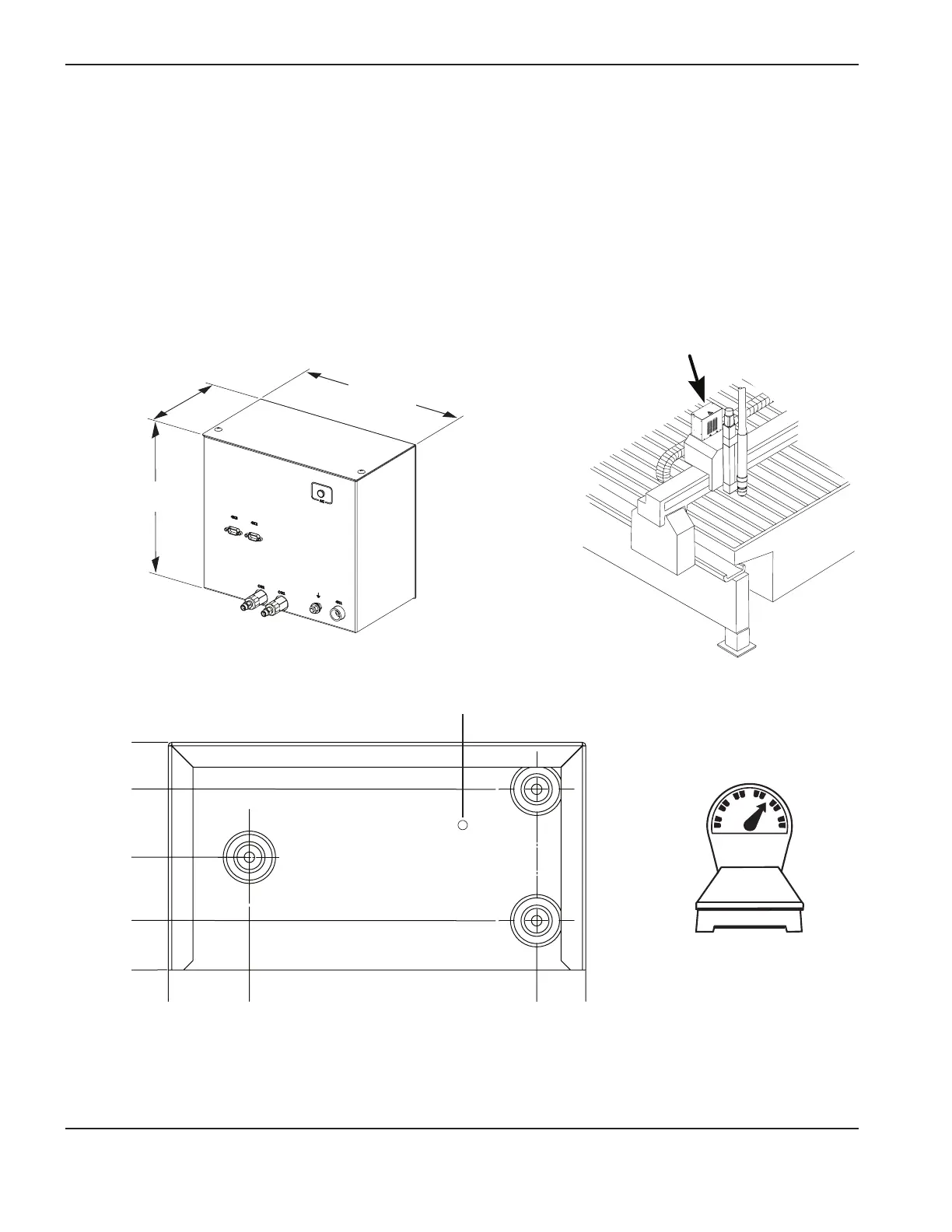

Metering console – 078535
• Maximumcablelengthfromthemeteringconsoletothetorchlifterstationis1.8m(6ft).
• Mountthemeteringconsoletothetorchcarriageonlargertables.Onsmallertablesitcanbemountedtoa
bracket just above the bridge.
• Theventholeontheconsolemustbekeptclearatalltimes.
153.9 mm
6.1 in
33.3 mm
1.3 in
122.2 mm
4.8 in
0
54.9 mm
2.2 in
76.2 mm
3.0"
6.4 kg
14 lb
282.5 mm
11.1 in
0
248.9 mm
9.8 in
Vent hole: Do not block
263.53 mm
10.375 in
155.58 mm
6.125 in
285.75 mm
11.25 in

Hypertherm HyPerformance Plasma HPR800XD Specifications

General

Brand	Hypertherm
Model	HyPerformance Plasma HPR800XD
Category	Cutter
Language	English
