InstallatIon
HPR800XD Auto Gas – 806500 3-21

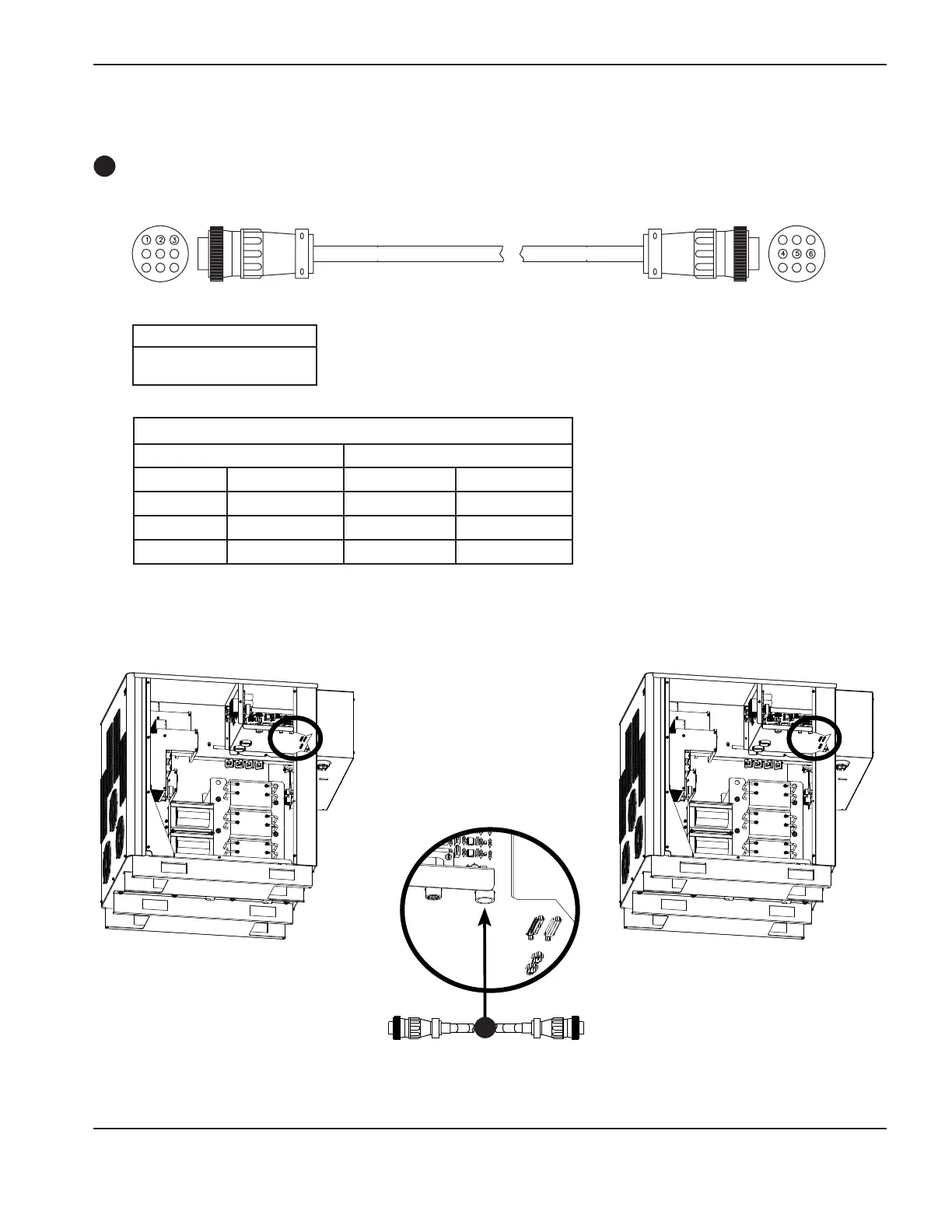

Primary power supply to secondary power supply cables
Interface (on/off) cable
Primary 1X7
1
Part no. Length
223071 4.5 m (15 ft)
223098 7.5 m (25 ft)
Secondary 1X7
1
Cable signal list – primary power supply to secondary power supply
Primary power supply end Secondary power supply end
Wire color Pin No. Description Pin No.
Red 1 120 VAC-hot 4
Black 2 120 VAC-return 5
Shield 3 Ground 6
